104257-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 2.54mm Crimp ST .100 AMPMODU Headers, Housings & Contacts CONN RECPT 2POS .1" POL UNLOAD 2 way MTE Receptacle Housing Headers & Wire Housings RECEPTACLE ASSY 2P Conn Housing RCP 2 POS 2.54mm Crimp ST Product Highlights:Receptacle HousingWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Housing Type = ReceptacleNumber of Rows = SingleSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, CRIMP, RECEPTACLE, 2.54MM, 2WAY ReceptacleAssembly;Thermoplastic;Receptacle;Single;0.100in.;MTE(IDC) Plug; wire-board; female; PIN:2; w/o terminals; 2.54mm; for cable TE Connectivity AMPMODU MTE 系列 1 行 2.54mm 节距 2 路 直 母 PCB 壳体 02 MTE RCPT HSG SR LATCH .100 |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | RoHSCompliant,ELVCompliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | CSA,UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 最大额定电流 | 3/Contact A | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Black | 深度 | 15.24mm |
| 间距 | 2.54 mm | 长度 | 5.02mm |
| 重量 | 0.001 | 包装方式 | Bulk |
| 导线线规 | 22-30 AWG | 排间距 | 2.54 mm |
| 外壳样式 | Receptacle | 端接方式 | IDC |
| 触头类型 | Female Socket | 柱间距 | 2.54mm |
| 极化 | Latched | 第二连接器 | With |
| 外壳颜色 | Black | 安装类型 | Straight |
| 行程角度 | Straight | 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) |
| 紧固类型 | Latch Lock | 安装样式 | Wire |
| 排数 | 1 | 封装形式 | Receptacle |
| 锁定特性 | lock | 壳体材料 | Thermoplastic |
| 总长度 | 50.8 mm | 包装数量 | 1 |
| 主要材料 | InterconnectSystem | 连接器 - 电缆 | plug |
| 插针孔直径 | 0.1" | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 配接方向 | With |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | 中心触点材料 | 2.54 [.100] |
| 第一连接器安装特征 | 1x2 | ||
产品信息
| SPG | 1 | 备注 | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta |
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | MTE | 预加载 | No |
| CAD图纸 | 3D CAD Model | 编码、键控 | No |
| 制造商全称 | AMPMODU/MTESeries | 产品子类型 | Housing |
| 适配器系列 | AMPMODU MTE | 单元数量 | 1 |
| 矩阵（列×行） | 0.100in. | 适用产品/相关产品 | Centerline Single-Row Connector |
环境参数
| 工作温度 | -65C to 105C | ||
相关型号

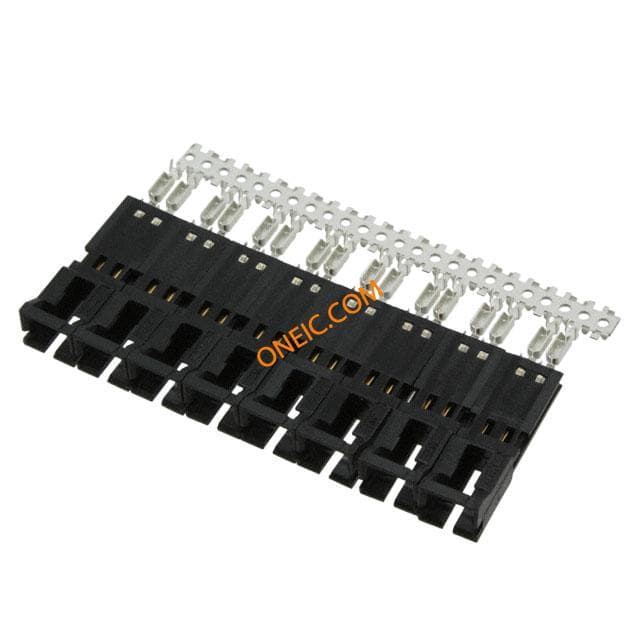

5-103949-1
te connectivity / amp
Conn IDC Connector PIN 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 2POS .100 26-30 GOLD Headers & Wire Housings HSG&PIN 1X02C P/L 30-26AWG Conn IDC Connector PIN 2 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Pin AssembliesWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 8X2 MTE SHRD PIN SR LTCH .100
103634-1
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 2POS PCB TIN Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 2Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 02 MTE HDR SRRA LATCH .100CL
5-103945-1
te connectivity / amp
Conn IDC Connector PIN 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 2POS .100 POLAR 15AU MTE Housing,plug,IDC,2way Headers & Wire Housings PIN ASSEMBLY 2P Conn IDC Connector PIN 2 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Pin AssembliesWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, PLUG, IDC, 2.54MM, 2WAY MTEPINASSY,8X2MTESHRDPINSRLATCH.100 TE Connectivity AMPMODU MTE 系列 2路 2.54mm节距 公 IDC 连接器 , 电缆安装 8X2 MTE SHRD PIN SR LATCH .100
103906-1
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 2POS 30AU Headers & Wire Housings LATCHING HDR SHRD 2P w/o hold down Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 02 MTE HDR SRRA LATCH .100CL
103945-1
te connectivity / amp
Conn IDC Connector PIN 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 2POS .100 POLAR 15AU Conn IDC Connector PIN 2 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Pin AssembliesWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTEPINASSY,8X2MTESHRDPINSRLATCH.100 8X2 MTE SHRD PIN SR LATCH .100
103673-1
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 2POS 15AU Headers & Wire Housings LATCHING HDR SHRD 2P with hold down Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODUMTER/AA/WHD,02MTEHDRSRRALATCHW/HLDWN 02 MTE HDR SRRA LATCH W/HLDWN
5-103948-1
te connectivity / amp
Conn IDC Connector PIN 2 POS 2.54mm IDT ST Cable Mount Strip Headers & Wire Housings 8X2 MTE SHRD PIN SR LTCH .100 .100 AMPMODU Headers, Housings & Contacts CONN PLUG 2POS .100 26-30 GOLD Conn IDC Connector PIN 2 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:HousingPreloadedNumber of Positions = 2Housing Type = PinContact Type = PinSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE TE Connectivity AMPMODU MTE 系列 2路 2.54mm节距 公 印刷电路板管座 , 电缆安装 8X2 MTE SHRD PIN SR LTCH .100

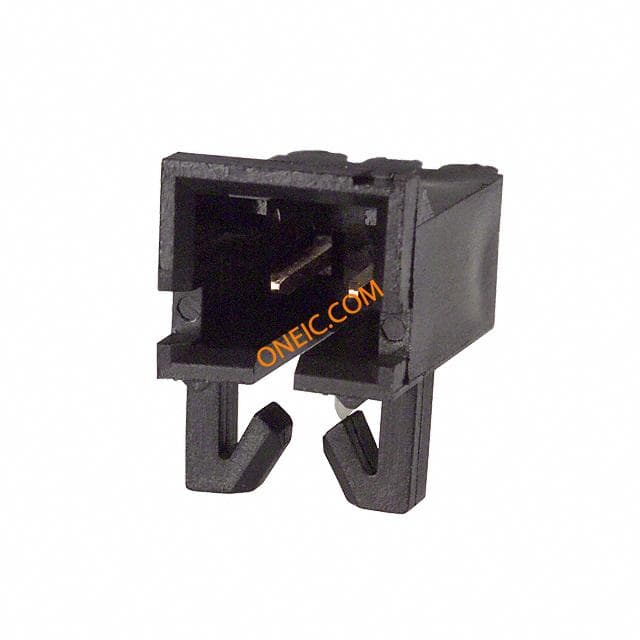

5-103904-1
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 2POS 30AU Header 2 way pin 2.54mm IDC AmpModu Headers & Wire Housings LATCHING HDR SHRD 2P with hold down Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 2Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 2POS, 2.54MM AMPMODUMTER/AA/WHD,2MTEHDRSRRALATCHW/HLDWN TE Connectivity AMPMODU MTE 系列 2.54mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 2 MTE HDR SRRA LATCH W/HLDWN
103735-1
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 2POS 30AU Headers & Wire Housings LTCH HDR W/O SWAGE 2 Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE MTEHEADERASSY,02MTEHDRSRSTLATCH.100CL 02 MTE HDR SRST LATCH .100CL

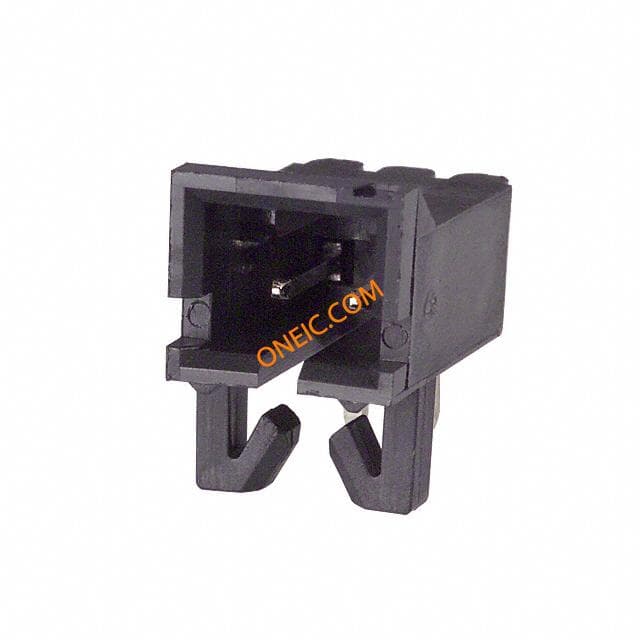

5-103672-1
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG 2POS PCB TIN Headers & Wire Housings LATCHING HDR SHRD 2P with hold down Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:ConnectorPreloadedHousing Gender = Header - PinContact Gender = Pin2.54 mm CenterlineSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE CONNECTOR, HEADER, IDC, 2.54MM, 2WAY Connector TE Connectivity AMPMODU MTE 系列 2.54mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 02 MTE HDR SRRA LATCH W/HLDWN
104361-1
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG .100 2POS 15AU Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 2Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 02 MTE HDR SRRA LATCH W/HLDWN

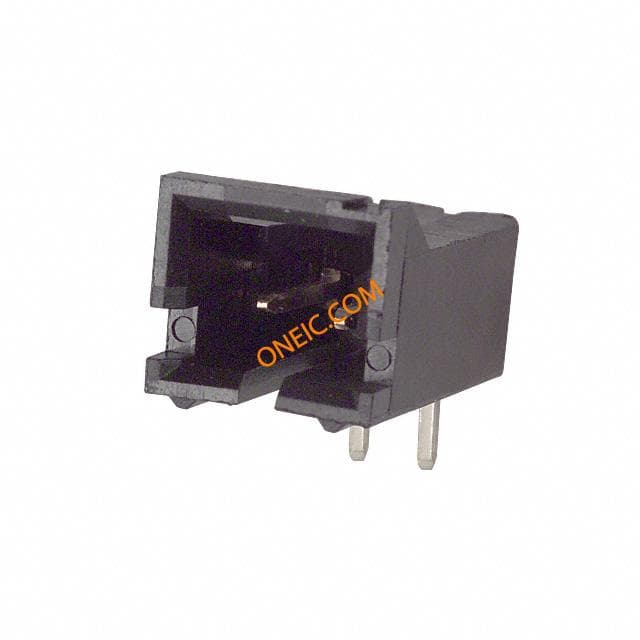

5-103635-1
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RT/A .100 2POS 15AU TE Connectivity MTE Series 2.54mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings LATCHING HDR SHRD 2P w/o hold down Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 2Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE AMPMODUMTER/AHDAY,02MTEHDRSRRALTCH.100CLLF TE Connectivity AMPMODU MTE 系列 2.54mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 02 MTE HDR SRRA LTCH.100CL LF
103952-1
te connectivity / amp
Conn IDC Connector PIN 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN PLUG 2POS .100 POLAR GOLD Headers & Wire Housings 10X2 MTE PIN SR RIBBED .100CL 10X2 MTE PIN SR RIBBED .100CL 10X2 MTE PIN SR RIBBED .100CL Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE
1375549-1
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder ST SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADER 2POS IDC STR SMD TIN Headers & Wire Housings 02 MTE VERT SMT HDR FULL SN-PB Conn Shrouded Header HDR 2 POS 2.54mm Solder ST SMD T/R Product Highlights:HeaderNumber of Positions = 2Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 02 MTE VERT SMT HDR FULL SN-PB
1375582-1
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder ST SMD T/R .100 AMPMODU Headers, Housings & Contacts CONN HEADR 2POS IDC STR SMD GOLD Headers & Wire Housings 02 MTE VERTICAL SMT HDR 15 AU Conn Shrouded Header HDR 2 POS 2.54mm Solder ST SMD T/R Product Highlights:HeaderNumber of Positions = 2Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 02 MTE VERTICAL SMT HDR 15 AU

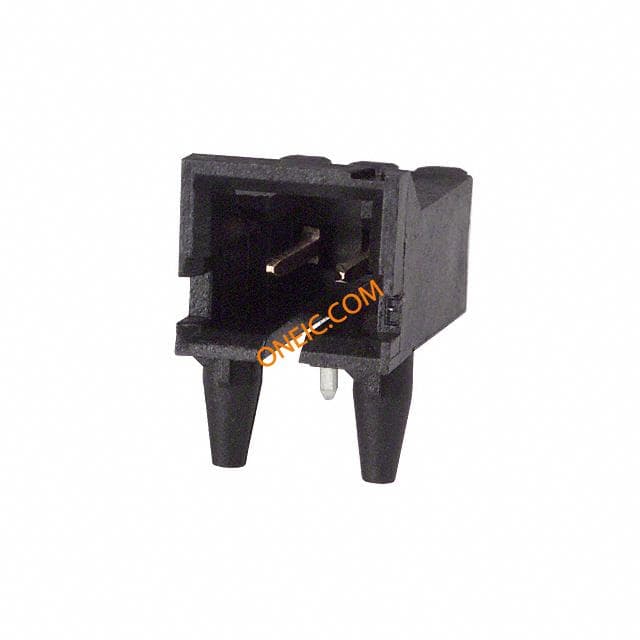

5-104361-1
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER RTANG .100 2POS 15AU TE Connectivity MTE Series 2.54mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 2Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HEADERHORIZ2WAYLATCH TE Connectivity AMPMODU MTE 系列 2.54mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 02 MTE HDR SRRA LATCH W/HLDWN
2-103634-9
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER 2POS R/A .100 TIN Headers & Wire Housings HDR 2P R/A .100 TIN Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube Product Highlights:ConnectorConnector Type = Header - Pin2.54 mm CenterlineRow-to-Row Spacing = 2.54 mm2 PositionsSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE 02 MTE HDR SRRA LATCH .100CL

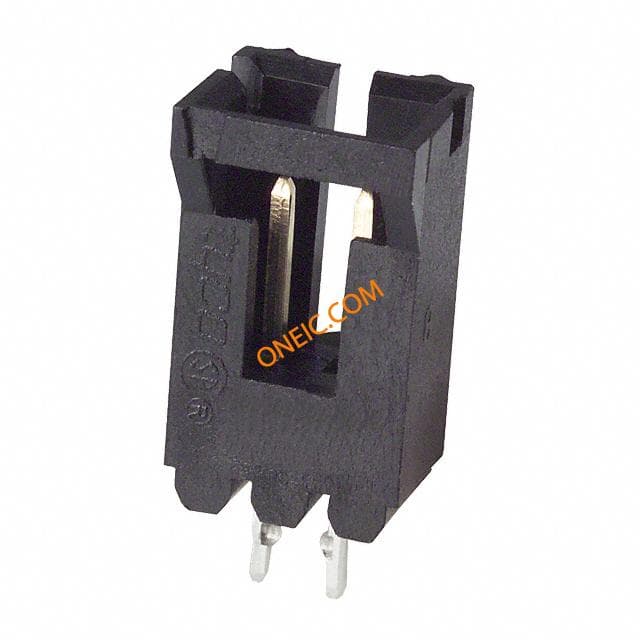

5-103908-1
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT .100 2POS 30AU TE Connectivity MTE Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings LTCHNG HDR W/SWAGE 2 Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderNumber of Positions = 2Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE Header;Shrouded;Vertical;Brass;Thermoplastic;2;0.1in.;Gold;0.025in. TE Connectivity AMPMODU MTE 系列 2.54mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 02 MTE HDR SRST LATCH W/HLDWN

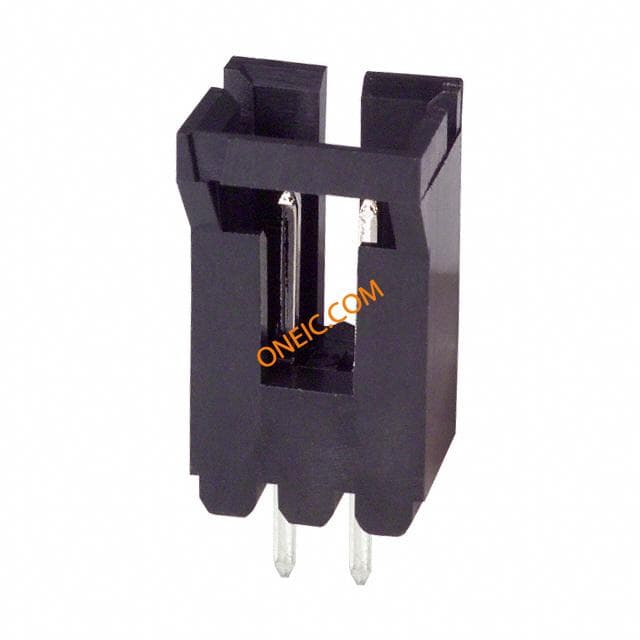

5-103639-1
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tube .100 AMPMODU Headers, Housings & Contacts CONN HEADER VERT 2POS PCB TIN TE Connectivity MTE Series 2.54mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings LTCH HDR W/O SWAGE 2 Conn Shrouded Header HDR 2 POS 2.54mm Solder ST Thru-Hole Tube Product Highlights:HeaderWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Search Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE WIRE-BOARD CONNECTOR HEADER 2POS, 2.54MM MTEHEADERASSY,02MTEHDRSRSTLATCH.100CL 02 MTE HDR SRST LATCH .100CL

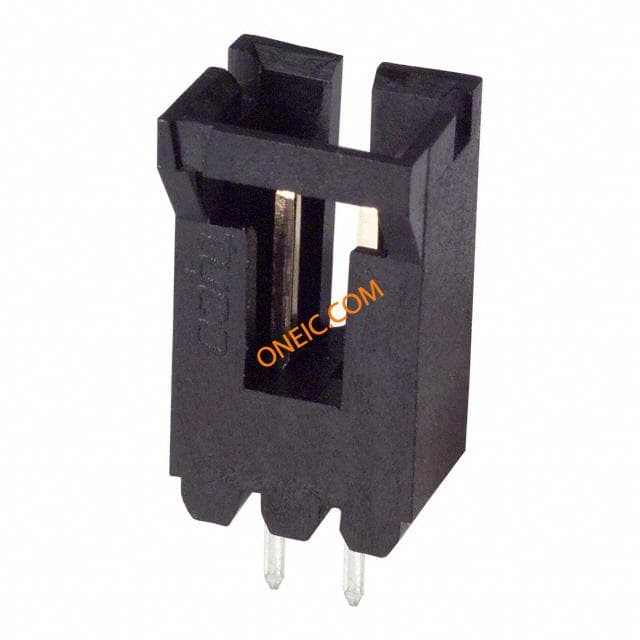

5-103735-1
