点击放大查看

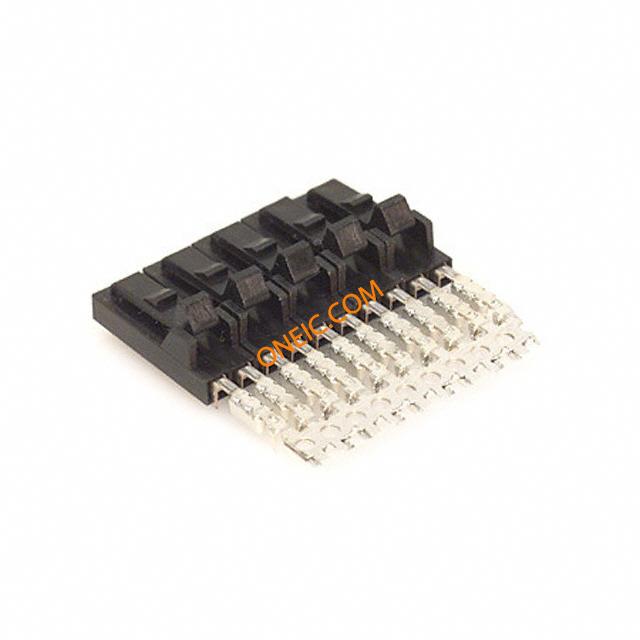

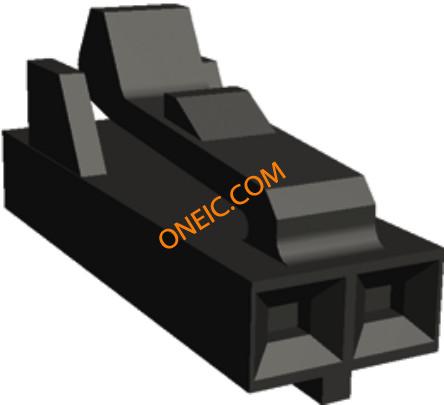

103958-1

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip .100 AMPMODU Headers, Housings & Contacts CONN RECPT 2POS .100 POLAR 30AU Housing 2 way receptacle 2.54mm AmpModu Headers & Wire Housings RECEPTACLE ASSY 2P Conn IDC Connector RCP 2 POS 2.54mm IDT ST Cable Mount Strip Product Highlights:Receptacle AssemblyWire Termination Type = Crimp, Insulation Displacement Crimp (IDC)Number of Positions = 2Number of Rows = SingleTerminate To WireSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HOUSING, RECEPTACLE, IDC, 2.54MM, 2WAY MTERECPASSY,10X2MTERPTSRLATCH.100CL 10X2 MTE RPT SR LATCH .100CL
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	AMPMODU	产品类别	Headers & Wire Housings
标准包装数量	Rail / Tube	工厂包装数量	1

合规参数

RoHS

Contains lead / RoHS non-compliant

海关税号

85369010

电气参数

量程（°/s）	:TE - AMPMODU MTE Series	接触电阻	15 mohm
最大额定电流	3 A

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	长度	2in
重量	0.02	包装方式	Tube
导线类型	Discrete or Ribbon Cable	导线线规	22-26 AWG
排间距	2.54 mm	端接方式	IDT
触头类型	Female Socket	外壳颜色	Black
安装类型	Free Hanging (In-Line)	连接器类型	Receptacle
接触镀层	Gold Over Nickel	紧固类型	Latch Lock
安装样式	Wire	排数	1
触头材料	Phosphor Bronze	壳体材料	Glass Fibre Reinforced Thermoplastic
总长度	50.8 mm	主要材料	InterconnectSystem
电缆端接方式	IDC	端接样式	Crimp
第一触头极性	Socket (Female)	触点数	2
接触件端接	:IDC	位数	2
接触镀层厚度	30µin (0.76µm)

产品信息

类型	IDC Connector	连接器性别	RCP
系列	MTE	已删除	Not Compliant
产品特性	Closed End	制造商全称	AMPMODU/MTESeries
产品子类型	Headers	适用产品/相关产品	PCB Connector

环境参数

工作温度

- 65 C to + 105 C
