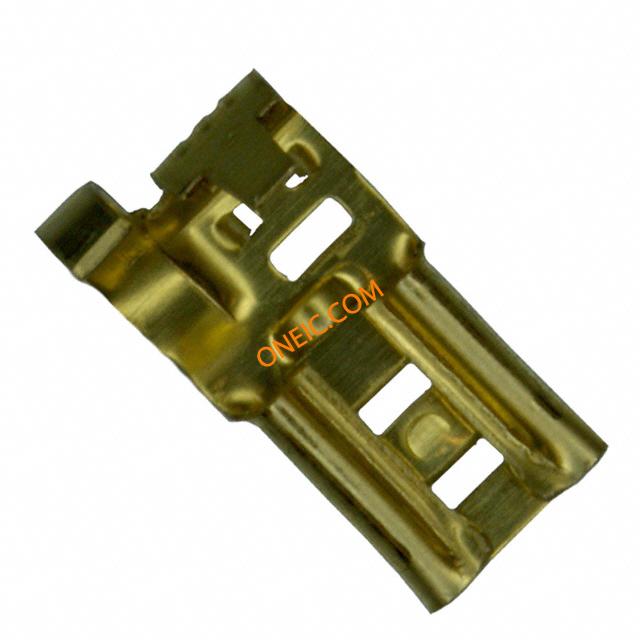

42800-1
| 制造商 | |
| 描述 | Quick Disconnect Terminal 16-20AWG RCP 13.46mm 5.61mm Strip Terminals FASTON RCPT 20-16 FASTON Uninsulated Receptacles & Housings CONN RECT FLG FAST 16-20AWG .187 Quick Disconnect Terminal 16-20AWG RCP 13.46mm 5.61mm Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.51 mmBoard Mount = NoReceptacle Style = FlagInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TERMINAL, FLAG DISCONNECT, 0.187IN CRIMP FASTON 187 RECEPTACLE 20-16 AWG BR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 6,000 | 工厂包装数量 | 6000 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 认证机构标志 | Yes | ||
电气参数
| 连接器类型 - 电压输入 | Without | ||
机械参数
| 颜色 | Not Required | 深度 | 5.61 mm |
| 表面处理 | None | 长度 | 13.46 mm |
| 重量 | 0.0001 | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 4.75 x 0.51 [.187 x .020] |
| 厚度 | 0.30 [0.012] | 电缆类型 | Regular Wire |
| 绝缘类型 | Not Insulated | 插片长度 | 0.250" (6.35mm) |
| 导线线规 | 20-16 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Wire |
| 螺柱/焊片尺寸 | 0.187 in x 0.02 in | 插片厚度 | 0.020" (0.51mm) |
| 端子类型 | Angled - 90°, Flag | 连接器类型 | :Flag Disconnect |
| 连接器样式 | Flag | 箔压接区域 | Tab-Lok |
| 插入力 | Normal | 触头材料 | Brass |
| 绝缘颜色 | :Uninsulated | 总长度 | Economy |
| 包装数量 | Strip | 绝缘高度 | Insulation Support |
| 端接样式 | Crimp | 绝缘直径 | 2.79-4.32 [.110-.170] |
| 线规或范围 - AWG | :20AWG | 线规或范围 - mm² | 0.50-1.40² [20-16] |
| 第二连接器安装特性 | No | ||
产品信息
| 类型 | Flag Receptacle | 连接器性别 | Female |
| 系列 | 187 | 制造商全称 | AMP |
| 产品子类型 | Receptacle | ||
