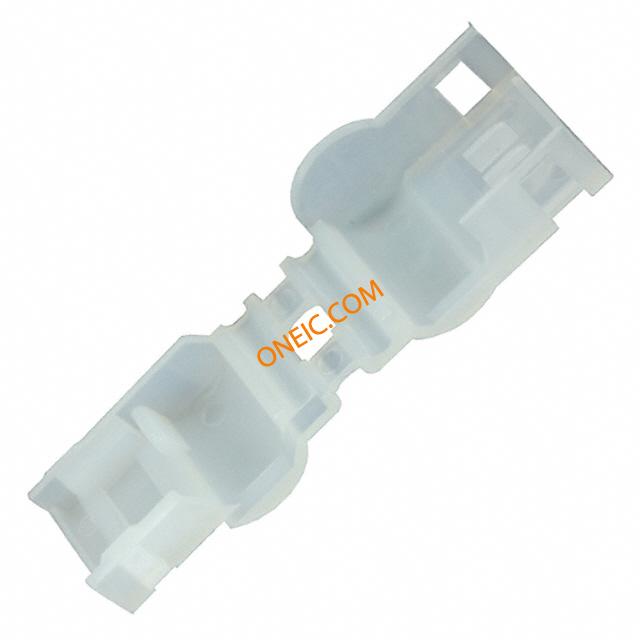

1-480487-2
| 制造商 | |
| 描述 | Conn Housing RCP 1 POS Crimp ST Loose Piece Headers & Wire Housings FLG FAST INS BT PINSUL POD LP FASTON Uninsulated Receptacles & Housings CONN RECPT FLG HOUSING NATURAL FASTON, flag, housing, 4.75 Conn Housing RCP 1 POS Crimp ST Loose Piece Product Highlights:HousingNumber of Circuits = 1Tab Fit = 4.75 mmNylon MaterialHousing Color = NaturalSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING TE Connectivity FASTON TAB-LOK .187 系列 1 触点 尼龙 压接端子外壳 FASTON 187 FLAG HSG NYLON NAT LP |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 6000 | ||
合规参数
| RoHS | RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
机械参数
| 颜色 | Natural | 深度 | 17.75 mm |
| 间距 | Not Required mm | 高度 | 8.13 mm |
| 长度 | 17.75mm | 材料（通用） | Nylon |
| 包装方式 | Reel | 插片宽度 | 4.75 [.187] |
| 壳体颜色 | 土黄色 | 绝缘类型 | Not Insulated |
| 外壳样式 | With | 基体材料 | Nylon |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 插片厚度 | 5.84mm | 端子尺寸 | 0.187" (4.75mm) |
| 端子类型 | Quick Connect, Disconnect | 连接器类型 | Tab |
| 安装样式 | Free Hanging | 排数 | 1 |
| 封装形式 | Tab Housing | 壳体材料 | Nylon |
| 总长度 | FASTON .187 | 包装数量 | Loose Piece |
| 主要材料 | 尼龙 | 连接器颜色 | Natural |
| 触点数 | 1 | 接触件尾部长度 | 5.84mm |
| 位数 | 1 | 焊盘布局尺寸 | 10.95 x 5.84mm |
| 触点镀层厚度 - 柱 | 10.95mm | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 样式 | Housing | 连接器性别 | RCP |
| 系列 | FASTON TAB-LOK .187 | CAD图纸 | 3D CAD Model |
| 制造商全称 | AMP | 产品子类型 | Receptacles / Sockets - Housings |
| 专有名称 | AMPIP | 电路数 | 1 |
| 适用产品/相关产品 | 0.187" (4.75mm) Quick Connects, Flag | ||
