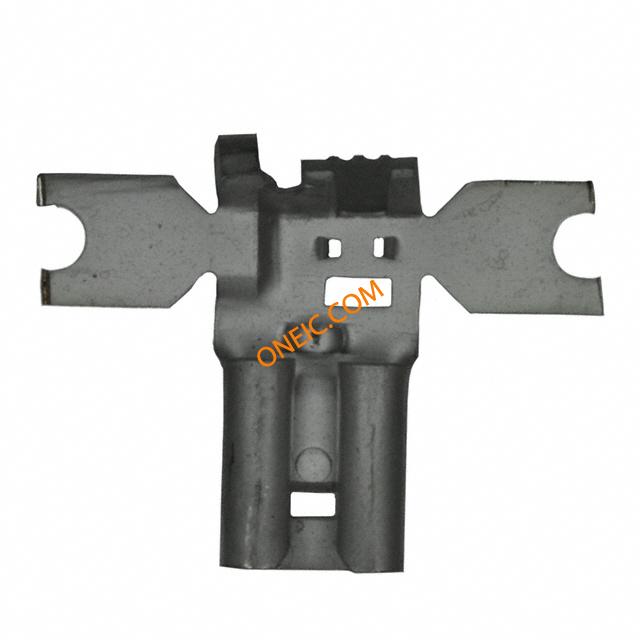

42618-2
| 制造商 | |
| 描述 | Quick Disconnect Terminal 16-20AWG RCP 13.46mm 5.6mm Tin Strip Terminals 20-16 AWG .187 RCPT FASTON Uninsulated Receptacles & Housings CONN RCPT FLG FAST 16-20AWG .187 Quick Disconnect Terminal 16-20AWG RCP 13.46mm 5.6mm Tin Strip Product Highlights:ReceptacleTab Fit = 4.75 x 0.51 mmBoard Mount = NoReceptacle Style = FlagInsulation SupportSearch Keywords:Quick Connect/Disconnect Tabs and Receptacles, relay connectors, fast-on, AMPIP, Blade Receptacle, Blade Tab, Packard Style Tab, E-SPRING FASTON 187 FLAG REC 20-16 AWG TPBR |
| 分类 |
商业参数
| 产品 | Faston Terminals | 产品类别 | Terminals |
| 标准包装数量 | 24,000 | 工厂包装数量 | 6000 |
合规参数
| RoHS | RoHS Compliant | UL等级 | 已获认证 |
| UL列名 | Listed | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | 认可国家 | 是 |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 认证机构标志 | Yes |
电气参数
| 核心类型 | Open | 最大频率 | Single |
| 开关功能 | 快速连接 | 连接器类型 - 电压输入 | Without |
机械参数
| 颜色 | Not Required | 深度 | 5.6 mm |
| 表面处理 | Tin | 材料（通用） | Brass |
| 包装方式 | Reel | 插片宽度 | 4.75 x 0.51 [.187 x .020] |
| 厚度 | 0.30 [0.012] | 电缆类型 | Regular Wire |
| 绝缘类型 | Not Insulated | 插片长度 | 0.260" (6.60mm) |
| 导线线规 | 20-16 | 端接方式 | Crimp |
| 基体材料 | Brass | 安装类型 | Free Hanging (In-Line), Right Angle |
| 螺柱/焊片尺寸 | 4.75 mm x 0.51 mm | 插片厚度 | 0.020" (0.51mm) |
| 端子类型 | Angled - 90°, Flag | 电缆材料 | Stranded |
| 连接器类型 | Yes | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Flag |
| 连接器用途 | Wire & Cable | 箔压接区域 | Tab-Lok |
| 插入件材料 | 黄铜 | 插入力 | Normal |
| 触头材料 | Brass | 总长度 | Budget |
| 包装数量 | Strip | 导线端接方式 | No |
| 绝缘高度 | Insulation Support | 端接样式 | Crimp |
| 适用端子尺寸 | 2.79 – 4.32 mm [ .11 – .17 in ] | 绝缘直径 | 2.79-4.32 [.110-.170] |
| 绝缘材料 - 类型 | No | 总厚度 | .3 mm [ .012 in ] |
| 法兰上方插针尺寸 | 4.75 mm [ .187 in ] | 法兰下方引脚尺寸 | .51 mm [ .02 in ] |
| 接触镀层厚度 | 40 | 堆叠高度（配合） | .89 mm [ .035 in ] |
| 线规或范围 - mm² | 0.50-1.40² [20-16] | 第二连接器安装特性 | No |
| 外径-未扩张 | 4.32 mm [ .17 in ] | ||
产品信息
| 连接器性别 | Female | 系列 | 187 |
| 制造商全称 | AMP | 产品子类型 | Receptacle |
