点击放大查看

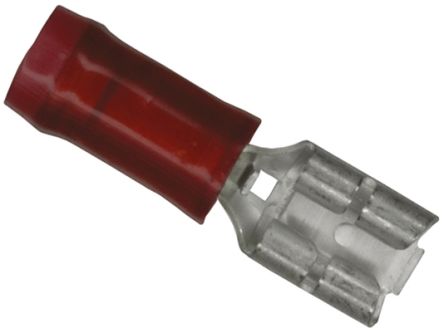

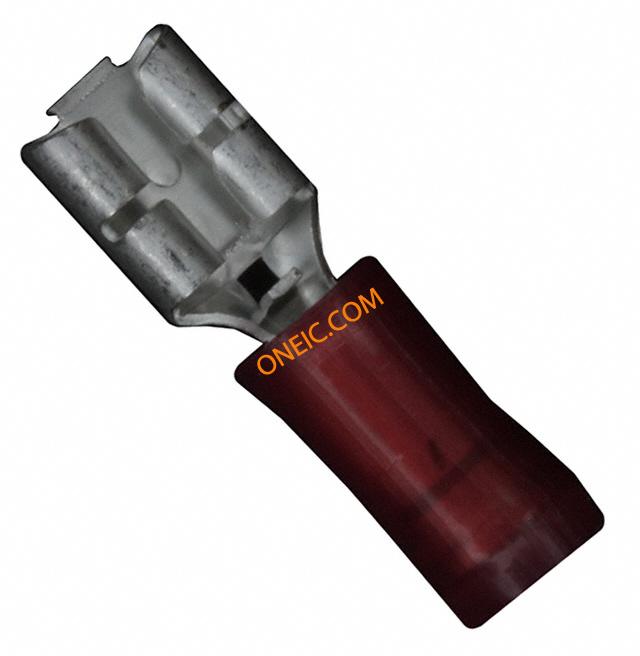

184268-1
| 制造商 | |
| 描述 | Quick Disconnect Terminal 18-22AWG RCP 20.83mm 5.84mm Tin Loose Piece Terminals RECPT 18-22 AWG .187 Quick Disconnect Receptacles - Insulated CONN RECEPT FAST 18-22AWG .187 Quick Disconnect Terminal 18-22AWG RCP 20.83mm 5.84mm Tin Loose Piece Product Highlights:Proprietary Name = PIDG FASTONReceptacle Style = StraightWire Range = 0.30-0.90² [22-18] mm [AWG]Tab Fit = 4.75 x 0.81 mmInsulation Diameter = 3.68 [.145] Max. mm [in]Search Keywords:Terminals and Splices TERMINAL, FEMALE DISCONNECT, 0.187IN RED T-CFASTONNS,RCPT,PIDGFASTON187LIF22-18 TE Connectivity PIDG FASTON .187 系列 红色 绝缘 压接插座 , 4.75 x 0.81mm, 镀锡触芯 RCPT,PIDG FASTON 187 LIF 22-18 |
| 分类 |
商业参数
| 产品 | Faston Terminals | 其他名称 | 1842681 |
| 产品类别 | Terminals | 标准包装数量 | 1,000 |
| 工厂包装数量 | 1000 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 供电电压 | 300 | ||
机械参数
| 颜色 | Red | 深度 | 5.84 mm |
| 表面处理 | Tin | 重量 | 1 |
| 材料（通用） | Brass | 包装方式 | Bulk |
| 插片宽度 | 4.75 x 0.81 [.187 x .032] | 绝缘类型 | Insulated |
| 插片长度 | 0.250" (6.35mm) | 导线线规 | 22-18 |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Wire | 螺柱/焊片尺寸 | :0.187" x 0.032" |
| 插片厚度 | 0.032" (0.81mm) | 端子类型 | Standard |
| 连接器类型 | :Female Disconnect | 接触镀层 | Tin |
| 壳体镀层 | Tin | 连接器样式 | Straight |
| 插入力 | Low | 触头材料 | Brass |
| 绝缘颜色 | :Red | 总长度 | 0.800" (20.32mm) |
| 包装数量 | Loose Piece | 绝缘高度 | Insulation Support |
| 端接样式 | Quick Disconnect | 绝缘直径 | 3.68 [.145] Max. |
| 绝缘材料 - 类型 | Nylon | 绝缘材料 - 材质 | No |
| 线规或范围 - AWG | :22AWG | 线规或范围 - mm² | 0.30-0.90² [22-18] |
产品信息
| 类型 | Receptacle | 连接器性别 | Female |
| 系列 | 187 | 纹理 | Dimple with wire stop |
| 专有名称 | PIDG FASTON | ||
