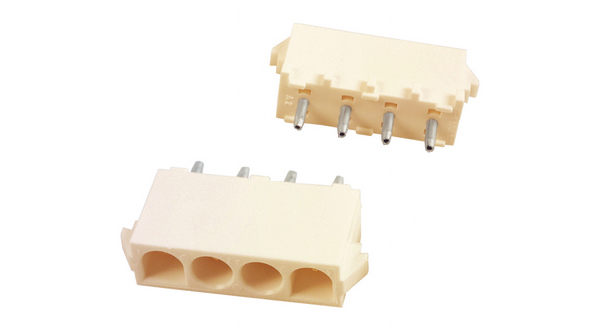

350430-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Power HDR 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port Pin & Socket Connectors 4 POS STD TAIL PIN .250" Centerline, 600 V, 19 - 36 A max CONN HEADER 4POS VERT .250 TIN MATE-N-LOK 4 Male Straight Heavy Duty Power Connector, Through Hole 19A,600V ac Conn Power HDR 4 POS 6.35mm Solder ST Thru-Hole 4 Terminal 1 Port Product Highlights:HeaderUniversal MATE-N-LOKNot CompactPCI6.35 mm Centerline, MatrixNumber of Circuits = 4Search Keywords:wire to wire, wire to board, Lighting Interconnection, soft shell, pcb connectors, power, discrete wire, crimp, PWRSIGALLP HEADER, 4WAY Connector,SoftShell;UniversalMATE-N-LOK;4;Nylon;Natural;19A;600VAC Socket; wire-board; male; 6.35mm; PIN:4; tinned; Pin layout:1x4 Pin header Pitch6.35 mm Poles 4 MATE-N-LOK Universal, 350430-1, TE Connectivity TE Connectivity Universal MATE-N-LOK 系列 6.35mm节距 4路 直 PCB 针座, 焊接端接, 19A , 通孔 04P UMNL PIN HDR ASSY NATL |
| 分类 |
商业参数
| 产品类别 | Pin & Socket Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-2 | ||
电气参数
| 量程（°/s） | :TE - Universal MATE-N-LOK Series | 额定电压 | 600 V |
| 工作电压 | :600V | 接触电阻 | :3.5mohm |
| 介电强度 | :2900V | 最大额定电流 | 19 A |
| 绝缘电阻 | :1000Mohm | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Natural | 深度 | 7.62 mm |
| 间距 | 6.35 mm | 高度 | 14.73 mm |
| 重量 | 0.002 | 材料（通用） | :Nylon |
| 包装方式 | Bulk | 端接方式 | Solder |
| 触头类型 | Male Pin | 引脚间距 | :6.35mm |
| 柱间距 | 6.35mm | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Pre Tin |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyamide (PA) | 总长度 | 26.67 mm |
| 包装数量 | 1 | 连接器 - 电缆 | socket |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Clear |
| 触点数 | 4 | 接触件端接 | :Through Hole Vertical |
| 位数 | 4 | 安装孔直径 | :1.8mm |
| 触点材料 - 镀层 | tinned | 第一连接器安装特征 | 1x4 |
