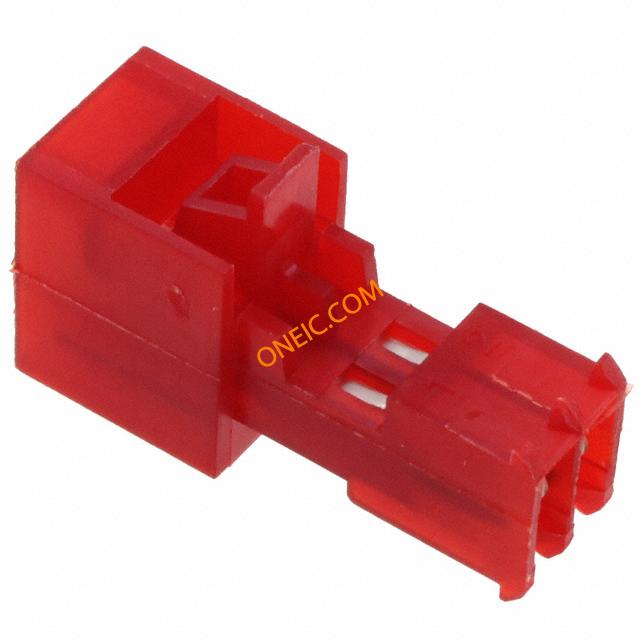

3-647000-2

点击放大查看

3-647000-2

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 2 POS 2.54mm IDT ST Cable Mount Headers & Wire Housings RCPT 2P 22 AWG RED MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 22AWG .100 RED Conn IDC Connector F 2 POS 2.54mm IDT ST Cable Mount Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, WIRE TO BOARD, PLUG, 2POS, 1ROW 02P MTA100 PSTD CONN ASSY LF
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量300

合规参数

RoHSRoHS Compliant海关税号85369010
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

量程（°/s）:TE - MTA-100 Series额定电压250 VAC
额定交流电压250

机械参数

颜色Red间距2.54 mm
重量0包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
导线线规22端接方式IDT
触头类型Male Pin第二连接器Without
外壳颜色Red安装类型Free Hanging (In-Line)
连接器类型Closed End接触镀层Tin Over Nickel
安装样式Wire排数1
连接器用途Receptacle触头材料Copper Alloy
壳体材料Nylon安装特性Without
面板安装类型Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向Without触点数2
接触件端接:IDC / IDT位数2
典型触点布局2.54 [0.100]接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.3-0.4² [22]

产品信息

类型IDC Connector连接器性别F
系列MTA-100产品特性Closed End
制造商全称AMP产品子类型Receptacles / Sockets - Housings
连接类型Wire跳过的位置数None
