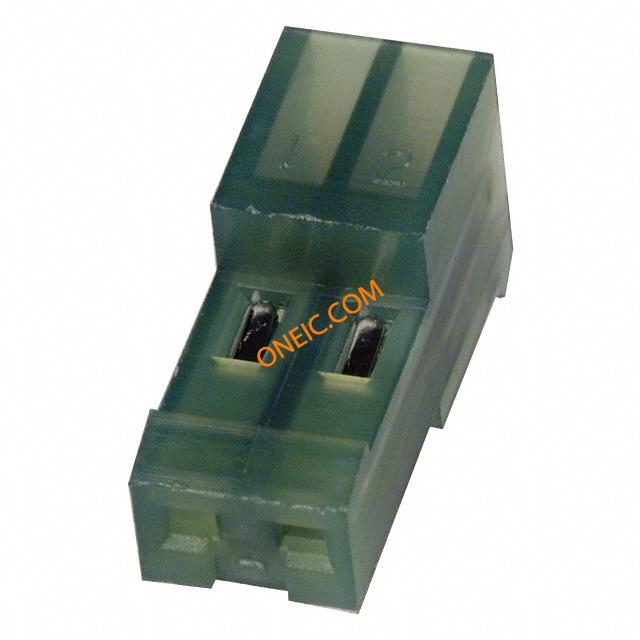

3-640443-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 28AWG MTA100 Connector FH IDC 2 way Rec 28AWG MTA-100 Headers & Wire Housings CLOSED W/O TABS 2P green tin 28 AWG Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE, 2POS, 2.54MM MTA-100Connector,Receptacle,2Pos.,ClosedEnd,IDC,28AWG,Green 02P MTA100 CONN ASSY GRN |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | CSA,UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 250 V ac | 开关功能 | Ramp Lock |
| 接触电阻 | 6 mohm | 额定交流电压 | 250 |
| 最大额定电流 | 5A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | Green | 深度 | 6.99 mm |
| 间距 | 2.54 mm | 高度 | 13.21 mm |
| 重量 | 0.002 | 包装方式 | Bulk |
| 遮蔽类型 | No | 导线类型 | Discrete or Ribbon Cable |
| 出线方向 | 90° | 导线线规 | 28 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | Green |
| 安装类型 | Free Hanging (In-Line) | 行程角度 | Straight |
| 连接器类型 | Closed End | 接触镀层 | Tin Over Nickel |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 1 | 连接器用途 | Receptacle |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon |
| 总长度 | 5.08 mm | 安装特性 | Without |
| 包装数量 | Loose Piece | 面板安装类型 | Without |
| 主要材料 | InterconnectSystem | 电缆端接方式 | IDC |
| 插针孔直径 | 0.1" | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 配接方向 | Without |
| 触点数 | 2 | 接触件端接 | :IDC / IDT |
| 绝缘直径 | 0.06"(Wire) | 位数 | 2 |
| 典型触点布局 | 2.54 [0.100] | 接触镀层厚度 | 80µin (2.03µm) |
| 恢复后小径 | No | 线规或范围 - mm² | 0.08-0.09² [28] |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | MTA-100 | 产品特性 | Closed End |
| 制造商全称 | AMP | 产品子类型 | MTA-100 Connectors |
| 连接类型 | Wire | 跳过的位置数 | None |
环境参数
| 工作温度 | +105°C | ||
