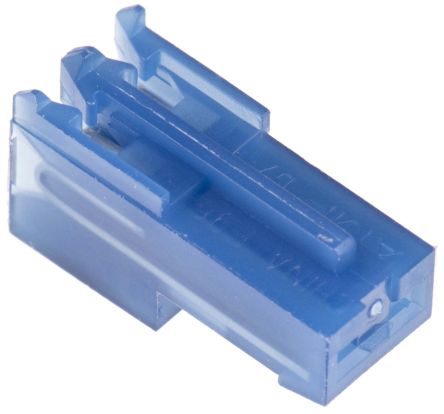

3-640442-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 2POS 26AWG MTA100 2 way MTA cable mount skt,2.54mm 26awg Headers & Wire Housings CLOSED W/O TABS 2P blue tin 26 AWG Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP RECEPTACLE, IDC, 2.54MM, 26AWG, 2WAY Connector;ClosedEnd;2;0.100in.;26AWG;AMP Connector: wire-board; Series: MTA-100; female; plug; tinned; PIN:2 Cable socket, straight 2P, 3-640442-2, TE Connectivity TE Connectivity MTA-100 系列 2路 2.54mm节距 直角 电缆安装 母 IDC 连接器 02P MTA100 CONN ASSY BLU |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 5000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| 认证机构 | :CSA, UL | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 量程（°/s） | :TE - MTA-100 Series | 额定电压 | 250 V ac |
| 开关功能 | Ramp Lock | 接触电阻 | 6 mohm |
| 额定交流电压 | 250 | 最大额定电流 | 5A |
| 最小输入电压 | 250VAC | 最小供电电压 | 250VAC |
| 触点额定电流 | :4A | ||
机械参数
| 颜色 | Blue | 深度 | 6.99 mm |
| 间距 | 2.54 mm | 高度 | 13.21 mm |
| 重量 | 0.039 | 包装方式 | Loose Piece |
| 遮蔽类型 | No | 导线类型 | Discrete or Ribbon Cable |
| 出线方向 | 90° | 导线线规 | 26 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 引脚间距 | :2.54mm | 柱间距 | 2.54mm |
| 第二连接器 | With | 基体材料 | polyamide |
| 外壳颜色 | Blue | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Closed End |
| 接触镀层 | Tin Over Nickel | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 封装形式 | :Thermoplastic | 连接器用途 | Receptacle |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon |
| 总长度 | 5.08 mm | 安装特性 | Without |
| 包装数量 | Loose Piece | 面板安装类型 | Without |
| 主要材料 | InterconnectSystem | 电缆端接方式 | IDC |
| 连接器 - 电缆 | plug | 插针孔直径 | 0.1" |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :Blue | 配接方向 | Without |
| 触点数 | 2 | 接触件端接 | :IDC / IDT |
| 绝缘直径 | 0.06"(Wire) | 位数 | 2 |
| 典型触点布局 | 2.54 [0.100] | 接触镀层厚度 | 80µin (2.03µm) |
| 恢复后小径 | No | 线规或范围 - mm² | 0.12-0.15² [26] |
| 触点材料 - 镀层 | tinned | 第一连接器安装类型 | :PC Board |
| 第一连接器安装特征 | 1x2 | ||
产品信息
| SPG | 1 | 类型 | IDC Connector |
| 连接器性别 | F | 系列 | MTA-100 |
| 产品特性 | Closed End | 制造商全称 | AMP |
| 产品子类型 | MTA-100 Connectors | 适配器系列 | MTA-100 |
| 连接类型 | Wire | 单元数量 | 1 |
| 工具类型/特性 | 59803-1 | 跳过的位置数 | None |
环境参数
| 工作温度 | +105°C | ||
