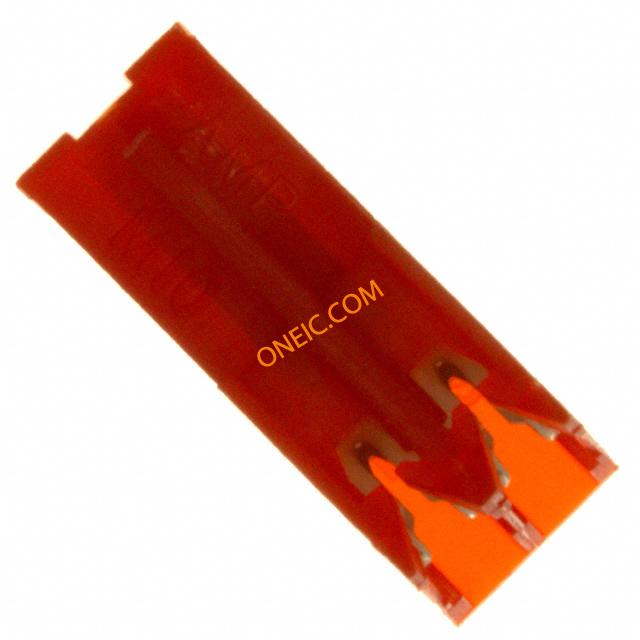

3-641237-2

点击放大查看

3-641237-2

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 2POS 22AWG RED MTA100 Headers & Wire Housings REC 02P C/E 22AWG W/O TABS Conn IDC Connector F 2 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 2Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 02P MTA100 CONN ASSY RED 30AU
分类
连接器解决方案板对板连接器板对板连接器

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC开关功能Ramp Lock
供电电压250额定交流电压250
连接器阻抗IDC最大额定电流5 A

机械参数

颜色Red间距2.54 mm
长度5.08包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
壳体颜色白色出线方向90°
电缆类型分离式导线, 绞线导线线规22 AWG
端接方式IDT触头类型Female Socket
第二连接器With外壳颜色Red
安装类型Free Hanging (In-Line)连接器类型Closed End
接触镀层Gold Over Nickel触点时序Without
紧固类型Locking Ramp安装样式Wire
排数1壳体镀层Nickel
外壳材料（壳体）标准连接器用途Receptacle
高度（英寸）6.99插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
安装特性Without包装数量Loose Piece
面板安装类型Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向Without触点数2
端接表面处理带有接触件端接Locking Lance
绝缘直径1.52 mm [ .06 in ]位数2
兼容外壳尺寸（如TM-700等）MTA .100 头和 MTA .100 IDC 柱形连接器触头长度-柱电源
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局2.54 [0.100]表面贴装焊盘尺寸Without
接触镀层厚度3µin (0.08µm)恢复后小径No
线规或范围 - mm²0.3-0.4² [22]静电放电屏蔽带有
护套（绝缘）厚度1.27 – 1.77 µm, 50 – 69.685 µin

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别F系列MTA-100
产品特性Closed End可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Wire跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]
