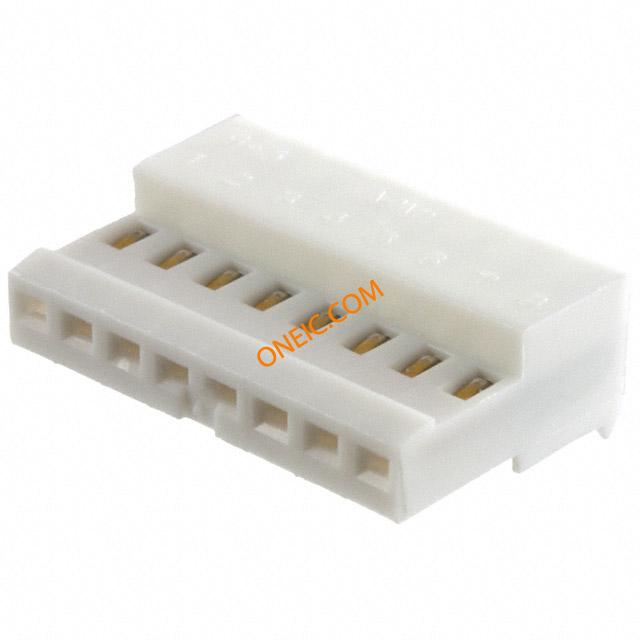

3-641191-8
| 制造商 | |
| 描述 | Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 8POS 24AWG .100 WHITE Headers & Wire Housings 08P MTA100 CONN ASSY WHT LF Conn IDC Connector F 8 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 8Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA100 CONN ASSY WHT LF |
| 分类 |
商业参数
| 其他名称 | 36411918 | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 500 |
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA分类 | 已认证 | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 额定电压 | 250 VAC | 开关功能 | Ramp Lock |
| 供电电压 | 250 | 接触电阻 | 6 mohm |
| 额定交流电压 | 250 | 连接器阻抗 | IDC |
| 最大额定电流 | 5 A | 最小供电电压 | 250VAC |
机械参数
| 颜色 | White | 深度 | 6.99 mm |
| 间距 | 2.54 mm | 高度 | 13.21 mm |
| 长度 | 20.32 mm [ .8 in ] | 包装方式 | Bulk |
| 遮蔽类型 | No | 导线类型 | Discrete or Ribbon Cable |
| 壳体颜色 | 白色 | 出线方向 | 90° |
| 电缆类型 | 分离式导线, 绞线 | 导线线规 | 24 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 第二连接器 | With | 外壳颜色 | White |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Closed End |
| 接触镀层 | Gold Over Nickel | 触点时序 | Without |
| 紧固类型 | Locking Ramp | 安装样式 | Wire |
| 排数 | 1 | 外壳材料（壳体） | 标准 |
| 连接器用途 | Receptacle | 插入件材料 | 铜合金 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Nylon |
| 总长度 | 20.32 mm | 安装特性 | Without |
| 包装数量 | Loose Piece | 面板安装类型 | Without |
| 电缆端接方式 | IDC | 端接样式 | IDC |
| 第一触头极性 | Socket (Female) | 配接方向 | Without |
| 触点数 | 8 | 端接表面处理 | 带有 |
| 绝缘直径 | 1.52 mm [ .06 in ] | 位数 | 8 |
| 衬套/护套类型 | 不带 | 兼容外壳尺寸（如TM-700等） | MTA .100 头和 MTA .100 IDC 柱形连接器 |
| 安装孔直径 | 不带 | 接触件表面处理 - 配合 | 锡 |
| 典型触点布局 | 2.54 [0.100] | 接触镀层厚度 | 15µin (0.38µm) |
| 恢复后小径 | No | 线规或范围 - mm² | 0.2² [24] |
| 静电放电屏蔽 | 带有 | 护套（绝缘）厚度 | 1.27 – 1.78 µm, 50 – 70.079 µin |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | MTA-100 | 产品特性 | Closed End |
| 可密封 | 否 | 制造商全称 | AMP |
| 产品子类型 | MTA-100 Connectors | 连接类型 | Wire |
| 跳过的位置数 | None | ||
环境参数
| 工作温度 | -55C to 105C | ||
