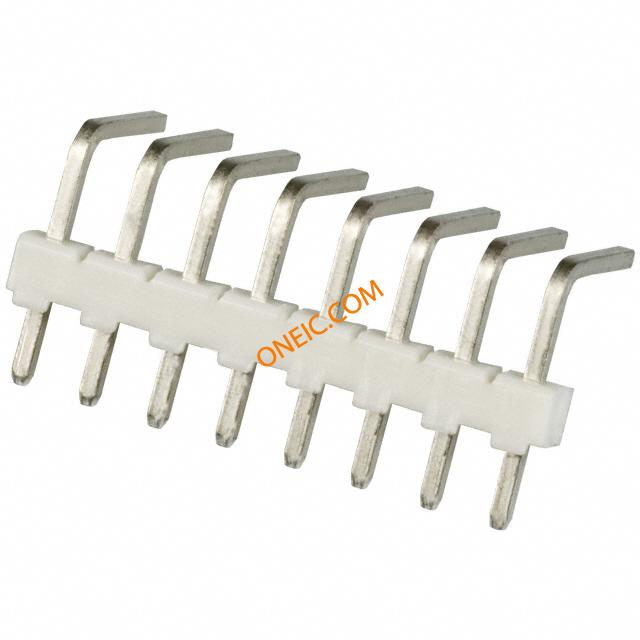

3-644457-8

点击放大查看

3-644457-8

制造商
TE Connectivity Ltd.
描述Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER RT/A 8POS .100 TIN Headers & Wire Housings NARROW FLT HDR 8P Right Angle Post Conn Unshrouded Header HDR 8 POS 2.54mm Solder RA Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 08P MTA100 HDR ASSY R/A NARROW
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Wave solder capable to 240°CUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V供电电压250
接触电阻6 mohm额定交流电压250
连接器阻抗焊接最大额定电流5 A
最小供电电压250VAC

机械参数

颜色Natural深度8.94 mm
间距2.54 mm高度6.35 mm
长度20.02 mm [ .788 in ]包装方式Bulk
遮蔽类型No壳体颜色自然
端接方式Solder触头类型Male Pin
第二连接器Without触点形状Square
外壳颜色White安装类型Right Angle
连接器类型Header, Unshrouded接触镀层Tin
触点时序Without安装样式Through Hole
排数1壳体镀层Tin
外壳材料（壳体）窄连接器用途Header
插入件材料铜合金触头材料Copper Alloy
壳体材料Polyester总长度20.02 mm
安装特性Without包装数量500
面板安装类型Without尺寸/外形0.64 [.025]
端接样式Through Hole第一触头极性Pin (Male)
配接方向Without触点数8
端接表面处理不带位数8
后壳中断功能Without兼容外壳尺寸（如TM-700等）MTA .100 连接器组件
触头长度-柱2.79 mm [ .11 in ]安装孔直径不带
接触件表面处理 - 配合锡典型触点布局2.54 [0.100]
接触长度 - 配合0.260" (6.60mm)端子柱长度6.6 mm [ .26 in ]
接触镀层厚度150µin (3.81µm)恢复后小径Yes
静电放电屏蔽不带护套（绝缘）厚度1.27 µm, 50 µin

产品信息

备注Headers without retentive legs are suitable for breakaway application类型Unshrouded Header
连接器性别HDR系列MTA-100
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Printed Circuit Board
应用细节Wire-to-Board加载位置数All
跳过的位置数None

环境参数

工作温度-55C to 105C封装热阻1.6 mm [ .063 in ]
