点击放大查看

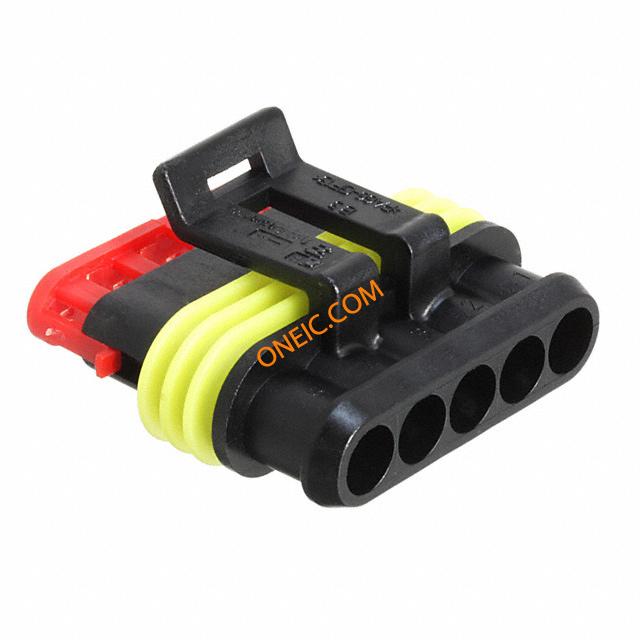

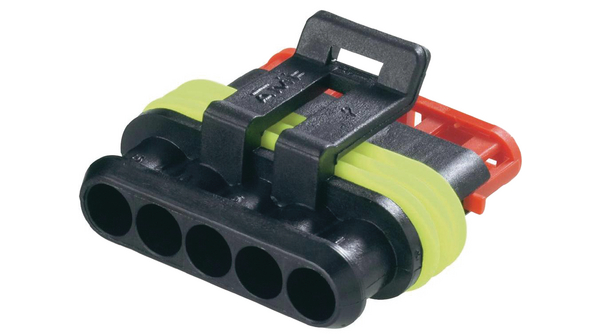

282089-1
| 制造商 | |
| 描述 | Conn Housing PL 5 POS 6mm Crimp ST Superseal 1.5 Series CONN PLUG 5POS 1.5 SERIES BLACK Superseal 1.5 5 way plug housing Power to the Board HSG PLG 1X05C F/H Conn Housing PL 5 POS 6mm Crimp ST Product Highlights:HousingNumber of Positions = 5Housing Type = PlugSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring SOCKET HOUSING, 5WAY Superseal1.55wayplughousing Connector: wire-wire; Superseal 1.5; plug; female; PIN:5; IP67 Crimp housing 6 mm Poles 5 Superseal, 282089-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 6mm 节距 5 路 直 公 PCB 壳体 AMP SUPERSEAL 1.5 SERIES 5P PL |
| 分类 |
商业参数
| 产品类别 | Power to the Board | 标准包装数量 | Bulk |
| 工厂包装数量 | 400 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | DIN 40050, IEC 529 |
| 海关税号 | 85369010 | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | 24V DC | 击穿电压 | :1500V |
| 次级电压 | Red | 最大额定电流 | :14A |
| 绝缘电阻 | :200Mohm | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Yellow | 深度 | 32.2 mm |
| 间距 | 6 mm | 宽度 | :33.3mm |
| 长度 | 32.2mm | 重量 | 0.006 |
| 材料（通用） | Polyamide 6.6 Glass Filled | 包装方式 | Bulk |
| 触头类型 | Female Socket | 外壳颜色 | Black |
| 安装类型 | Straight | 外壳镀层 | Silicon Rubber |
| 连接器类型 | Plug | 紧固类型 | Latch Lock |
| 安装样式 | Wire | 排数 | 1 |
| 封装形式 | Plug | 锁定特性 | lock |
| 壳体材料 | Polyamide 6.6 GF | 总长度 | 32.2 mm |
| 包装数量 | 500 | 主要材料 | Connector |
| 尺寸/外形 | see | 连接器 - 电缆 | plug |
| 第一触头极性 | Socket (Female) | 触点数 | 5 |
| 接触件端接 | Crimp | 位数 | 5 |
| 外径-未扩张 | :3.3mm | ||
产品信息
| SPG | 50 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | PL |
| 系列 | Super Seal | CAD图纸 | 3D CAD Model |
| 制造商全称 | SUPERSEAL1.5Series | 产品子类型 | Housing |
| 适配器系列 | Superseal 1.5 | 单元数量 | 1 |
| 适用产品/相关产品 | Centerline Wire-to-Wire Connector | ||
环境参数
| 防护等级 | IP67 | 工作温度 | -40C to 125C |
文档与媒体
