282403-1
| 制造商 | |
| 描述 | Contact SKT Crimp ST Cable Mount Strip Superseal 1.5 Series CONN MINI MIC SOCKET 22-20AWG Contact,crimp,recpt,MIC mini,22-20 awg Power to the Board S-SEAL SKT 22-20 BR/SN Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactContact Type = ReceptacleWire Range = 0.30-0.60² [22-20] mm [AWG]Wire Insulation Diameter = 1.40 - 1.70 mmStripSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring CONTACT, SOCKET, 22-20 AWG CONTACT, CRIMP, SOCKET, 22-20AWG, REEL Contact,crimp,recpt,MICmini,22-20awg Contact; female; 0.35÷0.5mm2; 20÷22AWG; Superseal 1.5; tinned TE Connectivity 压接插座 , 镀锡触芯 MINI MIC SRS REC CONT |
| 分类 |
商业参数
| 其他名称 | A105165CT | 产品类别 | Power to the Board |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 4000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
电气参数
| 最大额定电流 | 14 A | ||
机械参数
| 深度 | 4.8 mm | 间距 | Not Required mm |
| 高度 | 4.7 mm | 长度 | 16.5mm |
| 重量 | 0.02 | 包装方式 | Tape & Reel (TR) |
| 导线线规 | 20-22 AWG | 端接方式 | Crimp |
| 触点尺寸 | :20 | 触头类型 | Power |
| 安装类型 | Straight | 插针或插孔 | Socket |
| 连接器类型 | Connector Power | 接触镀层 | Pre-Tin |
| 安装样式 | Cable | 封装形式 | tape |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 16.5 mm | 包装数量 | Strip |
| 连接器 - 电缆 | contact | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 1 POS |
| 接触件端接 | Crimp | 绝缘直径 | 1.40 â 1.70 [0.055 â 0.067] |
| 线规或范围 - AWG | 22-20 | 线规或范围 - mm² | 0.30-0.60² [22-20] |
| 触点材料 - 镀层 | tinned | ||
产品信息
| SPG | 4000 | 类型 | Contact |
| 连接器性别 | SKT | 系列 | Super Seal |
| CAD图纸 | 3D CAD Model | 制造商全称 | SUPERSEALSeries |
| 产品子类型 | Contact | 适配器系列 | Superseal 1.5 |
| 端口数 | 1 Port | 单元数量 | 4000 |
| 工具类型/特性 | 58583-1, 9-1579007-1 | 适用产品/相关产品 | :Superseal 1.5 Series Connectors |
环境参数
| 工作温度 | - 40 C to + 125 C | 结工作温度 | 125C |
文档与媒体
相关型号
282080-1
te connectivity / amp
Conn Housing PL 2 POS 6mm Crimp ST Superseal 1.5 Series CONN PLUG 2POS 1.5 SERIES BLACK Superseal 1.5 2 way plug housing Jones Plugs & Sockets 2P RECEPTACLE Conn Housing PL 2 POS 6mm Crimp ST Product Highlights:HousingNumber of Positions = 2Housing Type = PlugSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring SOCKET HOUSING, CIRCULAR, 2 WAY Superseal1.52wayplughousing Connector: wire-wire; Superseal 1.5; plug; female; PIN:2; IP67 Crimp housing 6 mm Poles 2 Superseal, 282080-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 2路 电缆安装 黑色 母 连接器 , 压接端接 AMP SUPERSEAL 1.5 SERIES 2P PL
282088-2
te connectivity / amp
AMP SUPERSEAL 1.5 SERIES 4P PL Superseal - Connectors CONN PLUG 4POS 1.5 SERIES GRAY Jones Plugs & Sockets 1.5 SERIES 4P PL Conn Housing PL 4 POS 6mm Crimp ST Cable Mount Conn Housing PL 4 POS 6mm Crimp ST Cable Mount Search Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring
282088-1
te connectivity / amp
Conn Housing PL 4 POS 6mm Crimp ST Superseal 1.5 Series CONN PLUG 4POS 1.5 SERIES BLACK Superseal 1.5 4 way plug housing Automotive Connectors HSG PLG 1X04C F/H Conn Housing PL 4 POS 6mm Crimp ST Product Highlights:HousingNumber of Positions = 4Housing Type = PlugSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring SOCKET HOUSING, 4WAY Superseal1.54wayplughousing Connector: wire-wire; Superseal 1.5; plug; female; PIN:4; IP67 Crimp housing 6 mm Poles 4 Superseal, 282088-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 6mm 节距 4 路 直 公 PCB 壳体 AMP SUPERSEAL 1.5 SERIES 4P PL
282090-1
te connectivity / amp

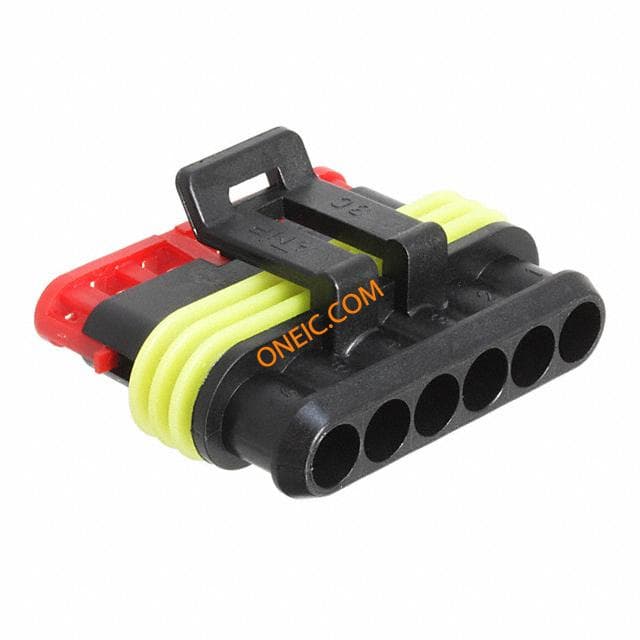

Conn Housing PL 6 POS 6mm Crimp ST Superseal 1.5 Series CONN PLUG 6POS 1.5 SERIES BLACK Superseal 1.5 6 way plug housing Power to the Board HSG PLG 1X06C F/H Conn Housing PL 6 POS 6mm Crimp ST Product Highlights:HousingNumber of Positions = 6Housing Type = PlugSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring SOCKET HOUSING, 6WAY AMPSUPERSEAL1.5SERIES6PPL Connector: wire-wire; Superseal 1.5; plug; female; PIN:6; IP67 Crimp housing 6 mm Poles 6 Superseal, 282090-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 6mm 节距 6 路 直 公 PCB 壳体 AMP SUPERSEAL 1.5 SERIES 6P PL
282087-1
te connectivity / amp
Conn Housing PL 3 POS 6mm Crimp ST Superseal 1.5 Series CONN PLUG 3POS 1.5 SERIES BLACK Superseal 1.5 3 way plug housing Automotive Connectors HSG PLG 1X03C F/H Conn Housing PL 3 POS 6mm Crimp ST Product Highlights:HousingNumber of Positions = 3Housing Type = PlugSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring SOCKET HOUSING, 3WAY Superseal1.53wayplughousing Connector: wire-wire; Superseal 1.5; plug; female; PIN:3; IP67 Crimp housing 6 mm Poles 3 Superseal, 282087-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 6mm 节距 3 路 直 公 PCB 壳体 AMP SUPERSEAL 1.5 SERIES 3P PL
354940-1
te connectivity / amp
Hand Tool Assembly And Die Assembly Crimpers PROCRIMPER W/O DIES Hand Tools PROCRIMPER W/O DIES PRO CRIMPER HAND TOOL W/O DIES PRO-CRIMPER III Hand Crimping Tool CRIMP TOOL, PRO-CRIMPER III SMBCONNECTORS,PROCRIMPERIII(FRAMEONLY) Crimp tool, "Pro Crimper III", 354940-1, TE Connectivity TE Connectivity Pro-Crimper III 系列 压接工具框架 PRO-CRIMPER III FRAME W/O DIES
282087-2
te connectivity / amp
Conn Housing RCP 3 POS 6mm Crimp ST Cable Mount Superseal - Connectors CONN PLUG 3POS 1.5 SERIES GRAY Jones Plugs & Sockets 1.5 SERIES 3P PL Conn Housing RCP 3 POS 6mm Crimp ST Cable Mount Search Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring AMP SUPERSEAL 1.5 SERIES 3P PL
282080-3
te connectivity / amp
AMP SUPERSEAL 1.5 SERIES 2P PL Superseal - Connectors CONN PLUG 2POS 1.5 SERIES GREEN Jones Plugs & Sockets 1.5 SERIES 2P PL Conn Housing PL 2 POS 6mm Crimp ST Cable Mount Conn Housing PL 2 POS 6mm Crimp ST Cable Mount Search Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring
282079-2
te connectivity / amp
Conn Housing PL 1 POS Crimp ST Superseal 1.5 Series CONN PLUG 1POS 1.5 SERIES BLACK Superseal 1.5 1 way plug housing Jones Plugs & Sockets HSG PLG 1X01C F/H Conn Housing PL 1 POS Crimp ST Product Highlights:HousingNumber of Positions = 1Housing Type = PlugSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring SOCKET HOUSING, 1WAY Superseal1.51wayplughousing Connector: wire-wire; Superseal 1.5; plug; female; PIN:1; IP67 Crimp housing 0 mm Poles 1 Superseal, 282079-2, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 1 路 直 公 PCB 壳体 AMP SUPERSEAL 1.5 SERIES 1P PL
282089-1
te connectivity / amp

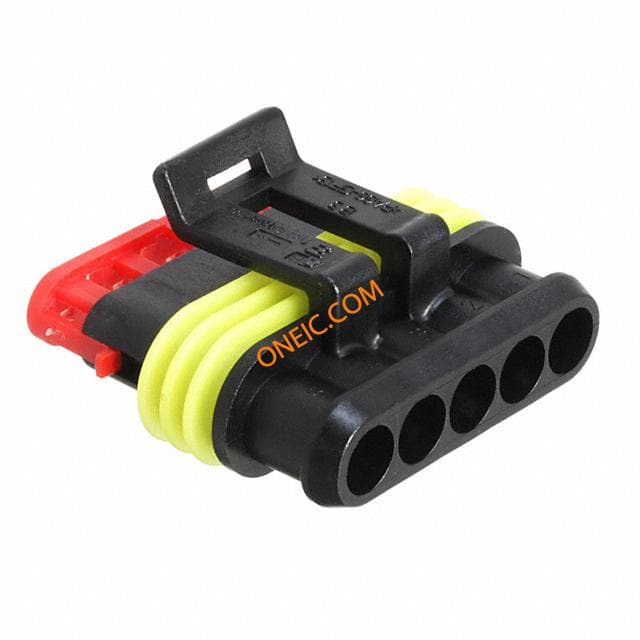

Conn Housing PL 5 POS 6mm Crimp ST Superseal 1.5 Series CONN PLUG 5POS 1.5 SERIES BLACK Superseal 1.5 5 way plug housing Power to the Board HSG PLG 1X05C F/H Conn Housing PL 5 POS 6mm Crimp ST Product Highlights:HousingNumber of Positions = 5Housing Type = PlugSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring SOCKET HOUSING, 5WAY Superseal1.55wayplughousing Connector: wire-wire; Superseal 1.5; plug; female; PIN:5; IP67 Crimp housing 6 mm Poles 5 Superseal, 282089-1, TE Connectivity TE Connectivity AMP Superseal 1.5 系列 6mm 节距 5 路 直 公 PCB 壳体 AMP SUPERSEAL 1.5 SERIES 5P PL
