282080-2
| 制造商 | |
| 描述 | Conn Housing PL 2 POS 6mm Crimp ST Superseal 1.5 Series CONN PLUG 2POS 1.5 SERIES GRAY Jones Plugs & Sockets 1.5 SERIES 2P PL Conn Housing PL 2 POS 6mm Crimp ST Product Highlights:HousingNumber of Positions = 2Housing Type = PlugSearch Keywords:watertight, IEC 529, DIN 40050 I.P. 6.7, interchangeable, sensors, oil pressure senders, water temperature monitoring AMP SUPERSEAL 1.5 SERIES 2P PL |
| 分类 |
商业参数
| 产品类别 | Jones Plugs & Sockets | 标准包装数量 | Bulk |
| 工厂包装数量 | 800 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | ||
电气参数
| 额定电压 | 12, 24 | 供电电压 | 24 |
| 连接器阻抗 | 否 | 次级电压 | Red |
机械参数
| 颜色 | Yellow | 间距 | 6 mm |
| 宽度 | 9.3 mm [ .366 in ] | 高度 | 32.2 mm [ 1.268 in ] |
| 长度 | 17.1 mm [ .673 in ] | 材料（通用） | Polyamide 6.6 Glass Filled |
| 包装方式 | Bulk | 出线方向 | 否 |
| 导线线规 | 16-20 AWG | 触头类型 | Female Socket |
| 外壳颜色 | Gray | 安装类型 | Straight |
| 外壳镀层 | Silicon Rubber | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 排数 | 1 |
| 封装形式 | Plug | 端子样式 | Yes |
| 锁定特性 | Integrated in Housing | 壳体材料 | Polyamide 6.6 GF |
| 安装特性 | No | 包装数量 | 500 |
| 主要材料 | PA GF | 连接器 - 电缆 | No |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | 法兰上方插针尺寸 | 1.5 mm [ .059 in ] |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | PL | 系列 | Super Seal |
| 极性 | 是 | 可密封 | 是 |
| 可维修 | Yes | 产品子类型 | Housing |
| 其他规格 | GEN | 应用细节 | Signal |
环境参数
| 工作温度 | -40 – 125 °C [ -40 – 257 °F ] | ||
文档与媒体
相关型号

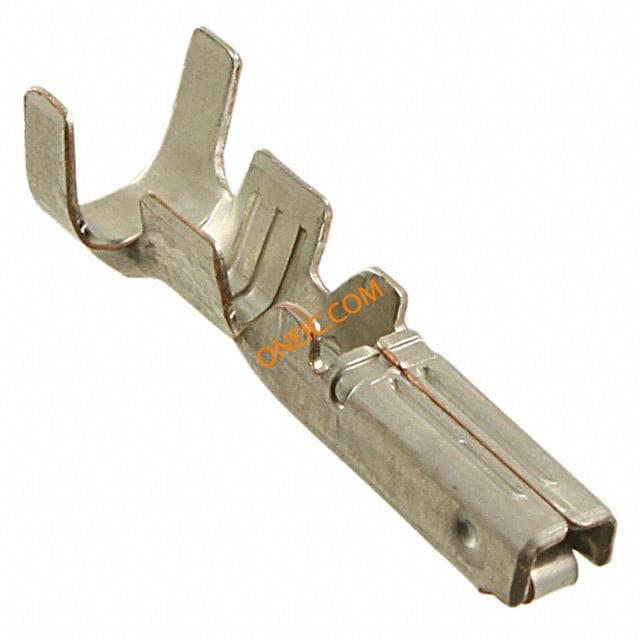

282110-1
