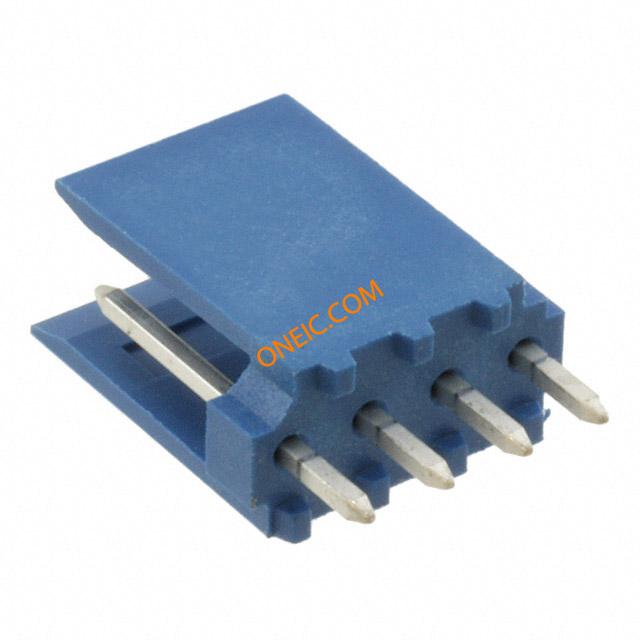

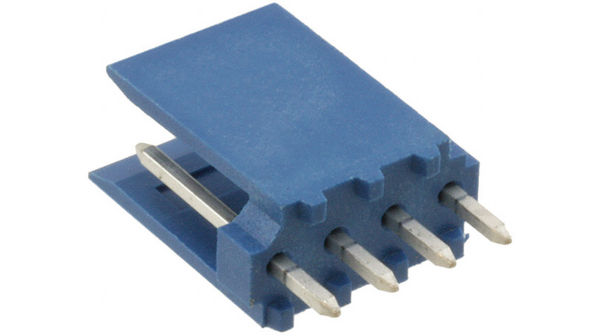

281695-4
| 制造商 | |
| 描述 | Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN HEADER 4POS IDC STR T/H TIN TE Connectivity HE1402 Series 2.54mm Pitch 4 Way 1 Row Straight PCB Header, Solder Termination Headers & Wire Housings HEADER VERT 4 POS HE14 Conn Shrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Loose Piece Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HEADER, THT, VERT, 2.54MM, 1ROW, 4WAY 4way1rowstraightHE14shroudedheader Connector: wire-board; HE14; socket; male; THT; PIN:4; straight Pin header straight Pitch2.54 mm Poles 1 x 4 HE-14, 281695-4, TE Connectivity TE Connectivity AMPMODU HE14 系列 2.54mm节距 4路 (1排) 直 PCB 针座, 焊接端接 , 通孔 HEADER HE14 STRAIGHT 4 P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | 认证机构 | :HE, NFC |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - AMPMODU HE14 Series | 工作电压 | :500V |
| 接触电阻 | 15 mohm | 最大额定电流 | :3A |
| 绝缘电阻 | :1000Mohm | ||
机械参数
| 颜色 | Blue | 深度 | 5.08 mm |
| 间距 | 2.54 mm | 高度 | 11.4 mm |
| 长度 | :10.16mm | 重量 | 0.045 |
| 材料（通用） | :Glass Filled Polyester | 包装方式 | Bulk |
| 方向 | straight | 排间距 | 2.54 mm |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :2.54mm | 柱间距 | 2.54 [.100] |
| 触点形状 | Square | 外壳颜色 | Blue |
| 安装类型 | Vertical | 释放力 | :3N |
| 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) | 接触镀层 | Tin Over Nickel |
| 安装样式 | Thru Hole | 排数 | 1 |
| 触头材料 | Phosphor Bronze | 壳体材料 | High Temperature Thermoplastic |
| 总长度 | 10.16 mm | 包装数量 | Loose Piece |
| 主要材料 | IndustrialRectangular | 尺寸/外形 | 0.64 [.025] |
| 连接器 - 电缆 | socket | 端接样式 | Through Hole |
| 第一触头极性 | Pin (Male) | 连接器颜色 | :Blue |
| 配接方向 | Without | 触点数 | 4 |
| 接触件端接 | :Through Hole Vertical | 位数 | 4 |
| 安装孔直径 | :1mm | 接触长度 - 配合 | 0.276" (7.00mm) |
| 第一连接器安装特征 | 1x4 | ||
产品信息
| SPG | 300 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | HE13 / HE14 |
| 制造商全称 | HE1402Series | 产品子类型 | Header |
| 适配器系列 | HE14 | 连接类型 | Printed Circuit Board |
| 单元数量 | 1 | 加载位置数 | All |
环境参数
| 插拔次数 | :30 | 工作温度 | -55C to 125C |
