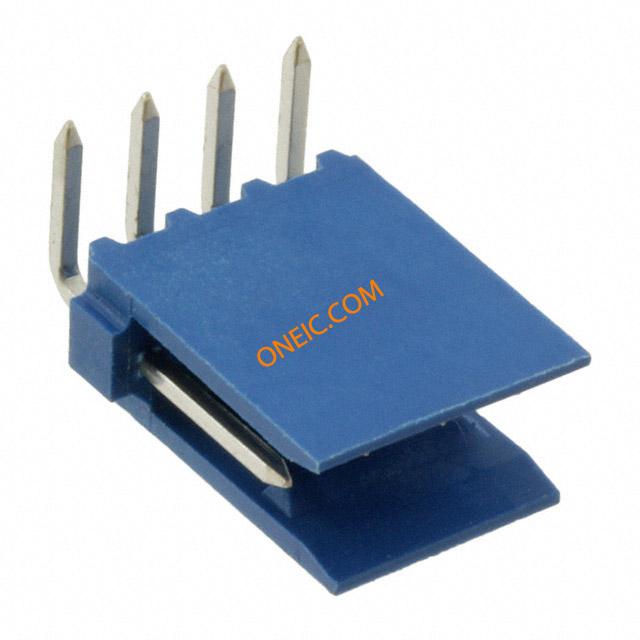

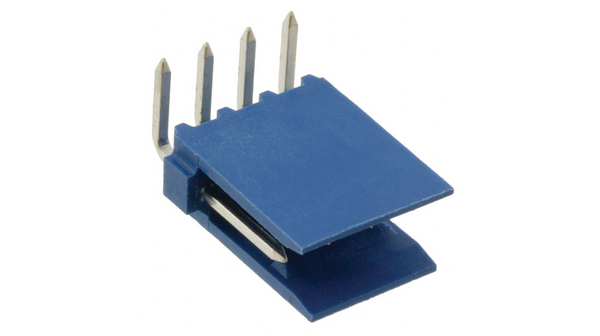

281698-4
| 制造商 | |
| 描述 | Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Loose Piece .100 AMPMODU Headers, Housings & Contacts CONN HEADER 4POS IDC R/A T/H TIN TE Connectivity AMPMODU Series 2.54mm Pitch 4 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings HEADER R/A 4 POS HE14 Conn Shrouded Header HDR 4 POS 2.54mm Solder RA Thru-Hole Loose Piece Product Highlights:HeaderNumber of Positions = 4Number of Rows = SinglePost Size = 0.64 [.025] mm [in]Terminate To Printed Circuit BoardSearch Keywords:AMPMODU, NIC, Network Interface Cards, PC Cards, wire to board, wire to wire, TS 100 System, discrete wire, IEC 603-8, smt, signal, pcb connectors, MTE, MTE HEADER, THT, RIGHT ANGLE, 2.54MM, 4WAY 4way1rowr/aHE14shroudedheader Connector: wire-board; HE14; socket; male; THT; PIN:4; angled 90° Pin header 90° Pitch2.54 mm Poles 1 x 4 HE-14, 281698-4, TE Connectivity TE Connectivity AMPMODU HE14 系列 2.54mm节距 4路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 HEADER HE14 RA 4 P |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | 认证机构 | :HE, NFC |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 量程（°/s） | :TE - AMPMODU HE14 Series | 工作电压 | :500V |
| 接触电阻 | :30mohm | 最大额定电流 | 3A |
| 绝缘电阻 | :1000Mohm | ||
机械参数
| 颜色 | Blue | 深度 | 12.8 mm |
| 间距 | 2.54 mm | 高度 | 5.08 mm |
| 长度 | :10.16mm | 重量 | 0.05 |
| 材料（通用） | :Glass Filled Polyester | 包装方式 | Bulk |
| 方向 | angled 90° | 排间距 | 2.54 mm |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 2.54mm | 触点形状 | Square |
| 外壳颜色 | Blue | 安装类型 | Right Angle |
| 释放力 | :3N | 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) |
| 接触镀层 | Tin Over Nickel | 安装样式 | Thru Hole |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | High Temperature Thermoplastic | 总长度 | 10.16 mm |
| 包装数量 | Loose Piece | 主要材料 | IndustrialRectangular |
| 尺寸/外形 | 0.64 [.025] | 连接器 - 电缆 | socket |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 连接器颜色 | :Blue | 配接方向 | Without |
| 触点数 | 4 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 4 | 安装孔直径 | :1mm |
| 中心触点材料 | 2.54 [.100] | 接触长度 - 配合 | 0.276" (7.00mm) |
| 第一连接器安装特征 | 1x4 | ||
产品信息
| SPG | 324 | 类型 | Shrouded Header |
| 连接器性别 | HDR | 系列 | HE13 / HE14 |
| CAD图纸 | 3D CAD Model | 制造商全称 | AMPMODU |
| 产品子类型 | Header | 适配器系列 | HE14 |
| 连接类型 | Printed Circuit Board | 单元数量 | 1 |
| 加载位置数 | All | ||
环境参数
| 插拔次数 | :30 | 工作温度 | -40C to 100C |
