点击放大查看

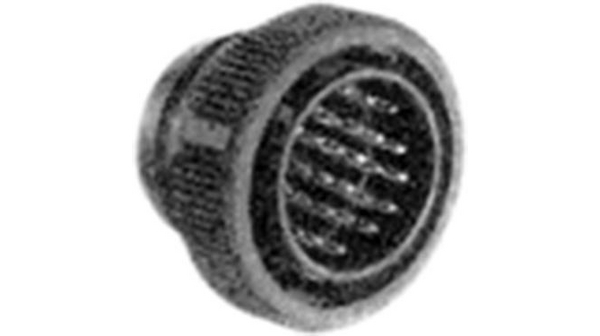

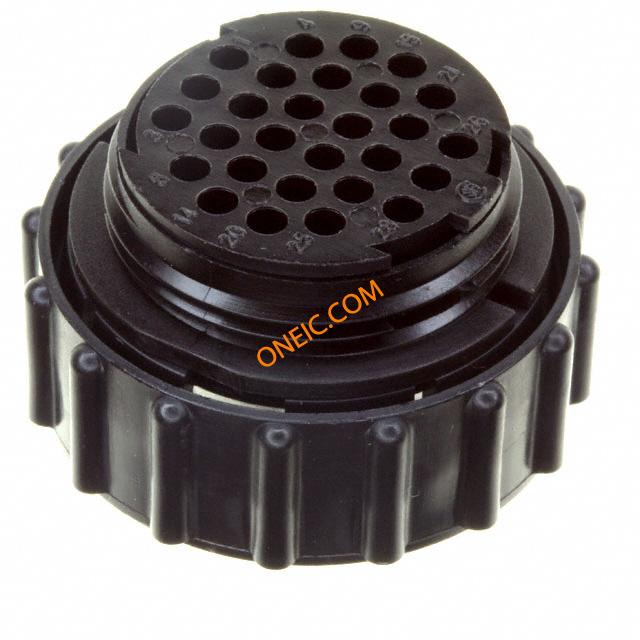

206039-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC PIN 28 POS Crimp ST Cable Mount 28 Terminal 1 Port CPC Connectors CONN PLUG CPC 28POS REV SER 2 28 Pole Male Straight Cable Mount Industrial & Automation Circular Connector, Shell Size 17 with Male Contacts Standard Circular Connector PLUG REVERSE 17-28 Conn CPC PIN 28 POS Crimp ST Cable Mount 28 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 28PlugFor Use With Pin ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR, CABLE, 28 WAY, FREE ConnectorHousing;CPCPlugAssy;28Pos.;Sz.17;Series2;FreeHang;RevSex Plug CPC2 Poles=28, accepts male contacts / Free hanging/cable mount, 206039-1, TE Connectivity TE Connectivity 28路 电缆安装 直向 连接器 插头 , 公触点 CPC PLUG ASSEMBLY SIZE 17-28 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 2 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 海关税号 | 85369010 | 合规性 | No |
| 抗辐射加固 | No | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 通道数量 | 28 | 最大额定电流 | 7.5A |
机械参数
| 颜色 | Black | 密封型 | No |
| 重量 | 0.008 | 直径 | 34.26 mm |
| 包装方式 | Bulk | 出线方向 | No |
| 外壳尺寸 | 17 | 方向 | Keyed |
| 外壳样式 | Plug | 端接方式 | Crimp |
| 螺纹尺寸 | 15/16-20 UNEF-2A | 触点形式 | 28Signal |
| 触点尺寸 | 20 | 触头类型 | 28Signal |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 行程角度 | Straight | 连接器类型 | Plug for Male Contacts |
| 紧固类型 | Threaded | 安装样式 | Free Hanging |
| 封装形式 | :Thermoplastic | 连接器样式 | Plug |
| 插入角度 | :17-28 | 本体材料 | :Thermoplastic |
| 壳体材料 | Thermoplastic | 总长度 | 20.32 mm |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | PIN | 连接器颜色 | :Black |
| 配接方向 | Keyed | 触点数 | 28 |
| 接触件尾部长度 | 20D | 绝缘直径 | 1.73 [0.068] |
| 位数 | 28 | 外壳尺寸-插件 | All Plastic |
| 外壳材料及表面处理 | Thermoplastic | 第一连接器安装类型 | :Cable |
| 第二连接器安装特性 | Reverse | 外壳尺寸-插入件（转换至） | 17-28 |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | PL | 系列 | Series 2 |
| 产品特性 | ReverseGender | 预加载 | No |
| 排列方式 | 17-28 | CAD图纸 | 3D CAD Model |
| 制造商全称 | Series2 | 产品子类型 | Connector |
| 射频系列/标准 | 206039 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Pin Contacts |
相关型号
66506-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts CRIMP PIN 24-20 Reel of 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, CRIMP CONTACT, CRIMP, PIN, 24-20AWG, REEL CONTACT,PIN,HDP-20,CRIMP,1.27-1.52MM TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG 20 DF PIN
66506-2
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONTACT PIN 20-24AWG CRIMP GOLD Standard Circular Connector PIN CONTACT 20 DF PIN 24-20 AWG 50 AU Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.27 - 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub PIN CONTACT 20 DF
2-66507-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts 20DF PIN 28-24 BR/AU Standard Cable Connectors CONN PIN 28-24AWG 50GOLD Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub HD 20 CONT,AU PLTD
206038-1
te connectivity / amp
Conn CPC SKT 28 POS Crimp ST Panel Mount 28 Terminal 1 Port CPC Connectors CONN RECEPT CPC 28POS REV SER 2 28 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 17 with Female Contacts Standard Circular Connector REC SQUARE REV 17-28 Conn CPC SKT 28 POS Crimp ST Panel Mount 28 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 28ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, SOCKET CONTACT, 28WAY ConnectorHousing;CPCRecept.Assy;28Pos;Sz17;Series2;PanelMnt;RevSex Receptacle CPC2 Poles=28, accepts female contacts / with flange, 206038-1, TE Connectivity TE Connectivity 28路 面板安装 直向 连接器 插座 , 母触点 CPC RECPT ASSEMBLY SIZE 17-28
206038-4
te connectivity / amp
Conn CPC SKT 28 POS Crimp ST Panel Mount 28 Terminal 1 Port Standard Circular Connector RCPT ASSY SIZE 17-28 CPC Connectors CONN RCPT CPC 28POS PANEL MOUNT ConnectorHousing,CPCRecept.Assy,28Pos Conn CPC SKT 28 POS Crimp ST Panel Mount 28 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 28ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC ConnectorHousing;CPCRecept.Assy;28Pos;Sz17;Series2;PanelMnt;RevSex CPC RECPT ASSEMBLY SIZE 17-28
206322-9
te connectivity / amp
Connector Accessories CPC Cable Clamp Thermoplastic Black Individual Cable Clamps and Clips Clamp Screw Thermoplastic Black Individual CPC Accessories CONN CABLE CLAMP CPC SIZE 17 BLK Cable clamp,shell size 17,CPC Standard Circular Connector LARGE CBL CLAMP 17 Cable Clamps and Clips Clamp Screw Thermoplastic Black Individual Product Highlights:Cable ClampShell Size = 17Body Style = StraightCable Diameter (Max.) = 17.86 mmThermoplastic Cable Clamp MaterialSearch Keywords:Circular Plastic, Metal Shell CPC, cabled power, Lighting Interconnection, input/output, box to box, CABLE CLAMP, SIZE 17, THERMOPLASTIC CableClampfor17pos.CPCconnector,.703in.MaxO.D.,15/16-20UNEF-2Bthread Cable Clamp Large ,Housing size 17, Size 15/16-20, 206322-9, TE Connectivity TE Connectivity 黑色 热塑塑料 电缆夹, 17.86mm 捆束直径 CABLE CLAMP SIZE 17
66507-3
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts CRIMP PIN 28-24 Standard Cable Connectors CONN PIN 24-28AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT,PIN,HDP-20,CRIMP,.76-1.02MM HDP20 Series 24-28 AWG Insulation Support Crimp Snap Pin Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 针 D-sub 连接器触点, 镀金镀镍 触点, 28 → 24 AWG 20 DF PIN
66507-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip D-Sub Contacts CRIMP PIN 28-24 Standard Cable Connectors CONN PIN 24-28AWG GOLD CRIMP Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, PIN, 28-24AWG, CRIMP CONTACT,PIN,HDP-20,PLATED,CRIMP,.76-1.02MM HDP20 Series 24-28 AWG Insulation Support Crimp Snap Pin Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 针 D-sub 连接器触点, 镀金 触点, 28 → 24 AWG HD 20 DF PIN PLTD
1-207216-6
te connectivity / amp
Conn CPC SKT 28 POS Solder ST Thru-Hole 28 Terminal 1 Port CPC Connectors CONN RCPT 28POS SIZE 17 CPC REV Standard Circular Connector REC PIN 17-28 PCB Conn CPC SKT 28 POS Solder ST Thru-Hole 28 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 28ReceptacleSocketPreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC CIRCULAR CONNECTOR RCPT SIZE 17, 28POS, PANEL CPC RECEPT ASSEMBLY SIZE 17-28
1-66506-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP20 pin contact 24 - 20awg Pin & Socket Connectors PIN CONTACT 24-20AWG gold flash o/nickel Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CRIMP PIN, GOLD, 24-20AWG PINCONTACT,20DF HDP-20 Series 24-20 AWG Wire to Cable Crimp Snap Socket Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG PIN CONTACT, 20 DF
1-66507-0
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece D-Sub Contacts HDP-20 PIN 28-24 AMPLIMITE HD20 Crimp Snap-In CONN D-SUB PIN 24-28AWG AU AMPLIMITE HDP-20 pin crimp contact 20 DF Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CRIMP PIN, GOLD, 28-24AWG D-SubConnector;Pin;28to24AWG;Crimp;0.04in.;GoldFlash;20;Standard TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 28 → 24 AWG PIN CONTACT, 20 DF
66506-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Connector PIN CONTACT 24-20AWG sel gold o/nickel Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, CRIMP, PIN, 24-20AWG Contact,Pin,20DF,Male Crimp Contact 7.5 A, 66506-9, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG PIN CONTACT, 20 DF
66506-4
te connectivity / amp
Contact PIN Crimp ST Cable Mount Strip Standard Cable Connectors CONN PIN 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts CRIMP PIN 24-20 Reel of 10000 Contact PIN Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub TERMINAL, 24-20 AWG CONTACT,PIN,HDP-20,PLATED,CRIMP,1.27-1.52MM TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG HD 20 DF PIN PLTD
66507-9
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece CONN PIN 24-28AWG GOLD CRIMP AMPLIMITE HDP-20 pin crimp contact 20 DF Standard Circular Contacts PIN CONTACT 28-24AWG Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CRIMP PIN, GOLD, 28-24AWG PINCONTACT,20DF CONN 24-28AWG Crimp Contact 7.5 A, 66507-9, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 公 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 28 → 24 AWG PIN CONTACT, 20 DF
66506-8
te connectivity / amp
Contact PIN Crimp ST Cable Mount Loose Piece Standard Cable Connectors CONN PIN 20-24 AWG GOLD CRIMP AMPLIMITE HDP-20 Pin Contact 24-20 AWG Standard Circular Connector PIN CONTACT 20 DF Contact PIN Crimp ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)PinWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, PIN, 24-20AWG, CRIMP PINCONTACT,20DF PIN CONTACT, 20 DF

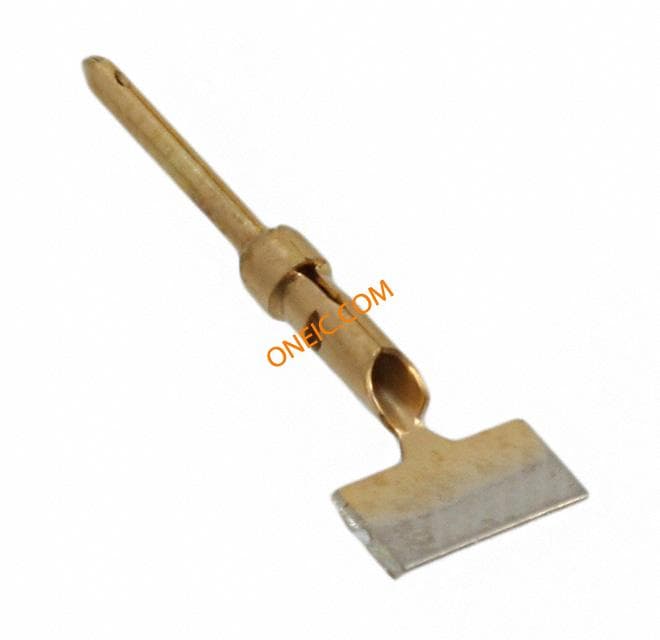

66570-3
