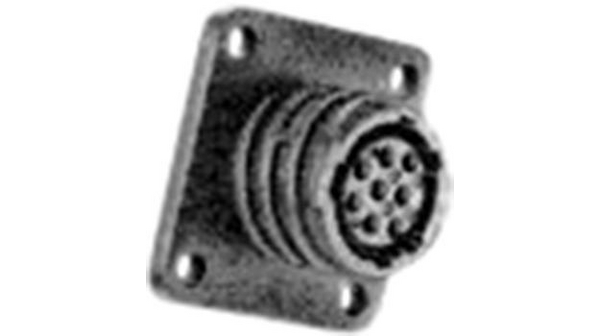

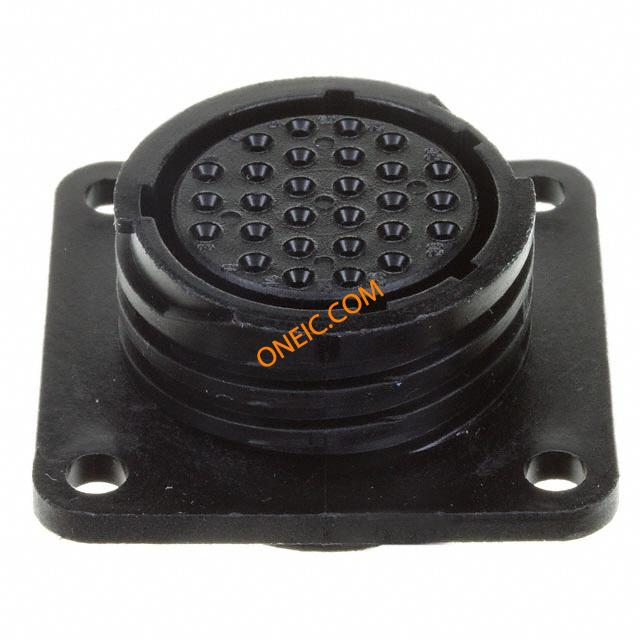

206038-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn CPC SKT 28 POS Crimp ST Panel Mount 28 Terminal 1 Port CPC Connectors CONN RECEPT CPC 28POS REV SER 2 28 Pole Female Straight Panel Mount Industrial & Automation Circular Connector, Shell Size 17 with Female Contacts Standard Circular Connector REC SQUARE REV 17-28 Conn CPC SKT 28 POS Crimp ST Panel Mount 28 Terminal 1 Port Product Highlights:ConnectorNumber of Positions = 28ReceptacleFor Use With Socket ContactsNot PreloadedSearch Keywords:Circular Plastic, Cabled Power, POWERBAND, coaxial, power, DIN 57627, III+ contacts, CMC, Metal Shell CPC, TETRASEAL, IEC IP 65, IEC IP 67, input/output, box to box, circular industrial, sealed, discrete wire, crimp, input/output, box to box, circular, Circular Plastic Connectors, CPC RECEPTACLE, SOCKET CONTACT, 28WAY ConnectorHousing;CPCRecept.Assy;28Pos;Sz17;Series2;PanelMnt;RevSex Receptacle CPC2 Poles=28, accepts female contacts / with flange, 206038-1, TE Connectivity TE Connectivity 28路 面板安装 直向 连接器 插座 , 母触点 CPC RECPT ASSEMBLY SIZE 17-28 |
| 分类 |
商业参数
| 交货时间 | 28 Days | 商标名 | CPC Series 2 |
| 子类别 | Connector Circular | 产品类别 | Standard Circular Connector |
| 标准包装数量 | Bulk | 工厂包装数量 | 100 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 合规性 | No | 抗辐射加固 | No |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 额定电压 | :250V | 工作电压 | :250V |
| 通道数量 | 28 | 最大额定电流 | :7.5A |
| 绝缘电阻 | :5000Mohm | ||
机械参数
| 颜色 | Black | 深度 | 36.45 mm |
| 高度 | 36.45 mm | 密封型 | No |
| 重量 | 0.01 | 包装方式 | Bulk |
| 出线方向 | No | 外壳尺寸 | 17 |
| 方向 | Keyed | 外壳样式 | Receptacle |
| 端接方式 | Crimp | 螺纹尺寸 | 15/16-20 UNEF-2A |
| 触点形式 | 28Signal | 触点尺寸 | 20 |
| 触头类型 | Crimp | 外壳颜色 | Black |
| 安装类型 | Panel Mount | 行程角度 | Straight |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Threaded |
| 安装样式 | Panel | 连接器样式 | Receptacle |
| 插入角度 | :17-28 | 本体材料 | :Thermoplastic |
| 面板厚度 | 0.125" | 壳体材料 | Thermoplastic |
| 总长度 | 20.55 mm | 面板安装类型 | Square Flange |
| 主要材料 | CircularPlasticConnector | 端接样式 | Wire |
| 第一触头极性 | Female | 连接器颜色 | :Black |
| 配接方向 | Keyed | 触点数 | 28 |
| 面板开孔形状 | :29.4mm | 接触件尾部长度 | 20D |
| 绝缘直径 | 1.73 [0.068] | 位数 | 28 |
| 外壳尺寸-插件 | All Plastic | 安装孔直径 | 0.15" |
| 外壳材料及表面处理 | Thermoplastic | 第一连接器安装类型 | :Panel |
| 第二连接器安装特性 | Reverse | 外壳尺寸-插入件（转换至） | 17-28 |
产品信息
| 备注 | Contacts Not Provided | 类型 | CPC |
| 连接器性别 | RCP | 系列 | Series 2 |
| 产品特性 | ReverseGender | 预加载 | No |
| 排列方式 | 17-28 | CAD图纸 | 3D CAD Model |
| 制造商全称 | Series2 | 产品子类型 | Connector |
| 射频系列/标准 | 206038 | 其他规格 | Without |
| 应用细节 | Commercial | 适用产品/相关产品 | Socket Contacts |
环境参数
| 工作温度 | :105°C | ||
相关型号
1658537-5
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts SKT 24-20 PHBZ/SN Standard Cable Connectors CONN SOCKET 20-24AWG GOLD CRIMP 1658537-5 Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.27 - 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONT,SOCKET,PLATED,20DF,STRIP,#20-24
66504-3
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts CRIMP SOCKET 24-20 Standard Cable Connectors CONN SOCKET 20-24AWG GOLD CRIMP AMPLIMITE HDP-20 socket crimp contact Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = 1.52 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub CONTACT, SOCKET, 24-20AWG, CRIMP CRIMP SOCKET, 24-20AWG CONTACT, SOCKET, 24-20AWG, CRIMP, FULL REEL CONTACT,SOCKET,HDP-20,CRIMP,1.27-1.52MM HDP20 Series 20-24 AWG Gold Flash Crimp Socket D-Sub Contact TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 24 → 20 AWG 20 DF SCKT CONT
66569-3
te connectivity / amp
Contact SKT Solder Cup ST Cable Mount Loose Piece Standard Cable Connectors CONN SOCKET SOLDER CAP 30AU AMPLIMITE HDP-20 socket crimp contact Standard Circular Connector SOLDER SKT CNT 18 Contact SKT Solder Cup ST Cable Mount Loose Piece Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = SolderWire Range = 0.8 - 0.9 [18] mm² [AWG]Search Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, SOCKET, 18AWG, SOLDER 20DFSOCKETCONT.L.P. Contact; female; 0.9mm2; HDP-20; gold plated; soldering HDP-20 Series 18 AWG Non Insulation Crimp Snap Solder Socket Contact Crimp Contact 7.5 A, 66569-3, TE Connectivity TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 焊杯 插座 D-sub 连接器触点, 镀金镀镍 触点, 22 → 18 AWG 20DF SOCKET CONT. L.P.
1658538-2
te connectivity / amp
Contact SKT Crimp ST Cable Mount Strip D-Sub Contacts SKT 28-24 BR/AU 20000 Standard Cable Connectors CONN SOCKET 24-28AWG GOLD CRIMP AMPLIMITE HDP-20 socket crimp contact Contact SKT Crimp ST Cable Mount Strip Product Highlights:ContactProduct Series = HDP-20 (Crimp Snap)SocketWire Termination Type = CrimpWire Insulation Diameter = .76 - 1.02 mmSearch Keywords:AMPLIMITE, Office Class II Standards, Subminiature D, PC cable, MIL-C-24308, Battelle Level III, box to box, d-sub, d sub, dsub D SUB CONTACT, SOCKET, 28-24AWG, CRIMP CONTACTFEMALECRIMP TE Connectivity AMPLIMITE HDP-20系列 尺寸20触点 母 压接 信号 D-sub 连接器触点, 镀金镀镍 触点, 28 → 24 AWG SOCKET CONT DUPL PLT STRIP HD-

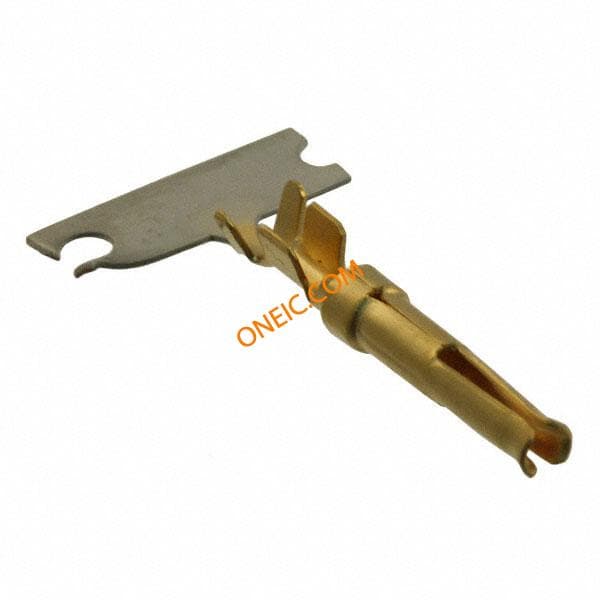

66504-2
