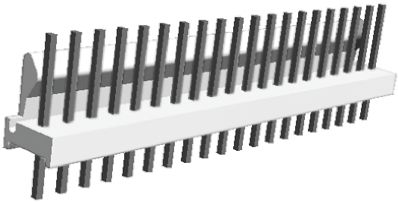

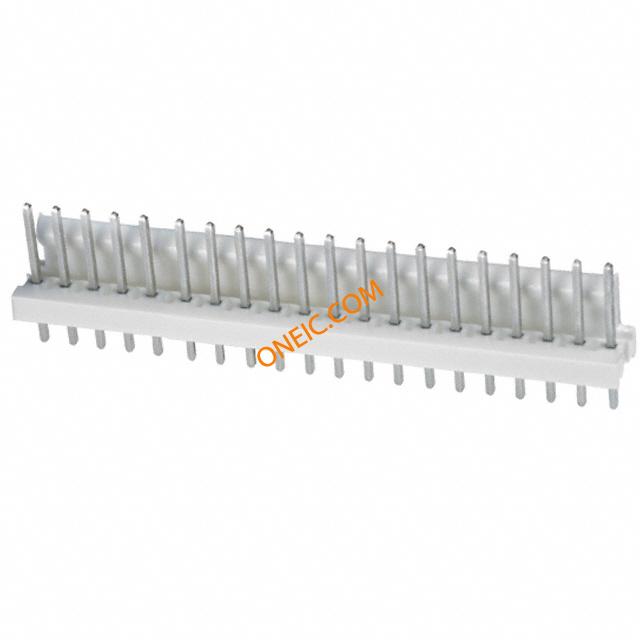

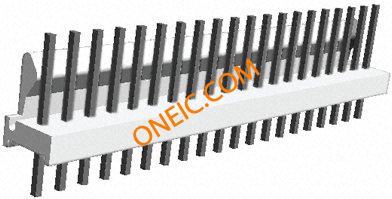

2-640456-0

点击放大查看

2-640456-0

制造商
TE Connectivity Ltd.
描述
Conn Wire to Board HDR 20 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 20POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 20 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings HEADER 20 POS Conn Wire to Board HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 20Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Header,FrictionLock;MTA-100;20;250VAC;Polyester;Tin;CopperAlloy;Tin TE Connectivity MTA-100 系列 2.54mm节距 20路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 20P MTA100 HDR ASSY F/L SQ STR
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量1000

合规参数

RoHSLead free / RoHS Compliant标准RoHSCompliant,ELVCompliant,UL94V-0
UL等级获得认可无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
UL档案号E28476认证机构CSA,UL
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

额定电压250 V ac开关功能Friction Lock
供电电压250接触电阻6 mohm
额定交流电压250连接器阻抗焊接
最大额定电流5A最小供电电压250VAC

机械参数

颜色Natural深度5.72 mm
间距2.54 mm高度10.03 mm
长度50.8 mm [ 2 in ]包装方式Bulk
端口尺寸0.025in.遮蔽类型No
壳体颜色自然方向直
端接方式Solder触头类型Male Pin
引脚长度（针脚）0.295"极化Polarizing Slot
第二连接器With触点形状Square
外壳颜色White安装类型Vertical
行程角度Straight连接器类型Header, Unshrouded
接触镀层Tin触点时序Without
紧固类型Friction Lock安装样式Through Hole
排数1壳体镀层Tin
外壳材料（壳体）摩擦锁连接器用途Header
插入件材料铜合金锁定特性Friction Lock
触头材料Copper Alloy壳体材料Polyester
总长度50.8 mm安装特性Without
包装数量1面板安装类型Without
主要材料InterconnectSystem尺寸/外形0.64 [.025]
端接排数焊接插针孔直径0.1"
端接样式Through Hole第一触头极性Pin (Male)
配接方向With触点数20
端接表面处理不带接触件端接Tin
位数20后壳中断功能Without
兼容外壳尺寸（如TM-700等）MTA .100 连接器组件触头长度-柱3.56 mm [ .14 in ]
中心触点镀层工艺0.100in.柱体长度（配合）0.14in.
安装孔直径0.04"接触件表面处理 - 配合锡
典型触点布局同轴接触长度 - 配合0.295" (7.49mm)
触点材料 - 柱Copper Alloy表面贴装焊盘尺寸Without
端子柱长度3.56 [0.140]接触镀层厚度3.81 µm [ 150 µin ]
恢复后小径No静电放电屏蔽不带
护套（绝缘）厚度1.27 µm, 50 µin
