2-640623-0

点击放大查看

2-640623-0

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers MTA CONN ASSY 28 AWG STD 20POS Headers & Wire Housings 20P MTA100 CONN ASSY F/T GRN MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:Connector Assembly20 PositionsConnector Style = ReceptacleContact Type = ReceptacleConnector Design = Feed ThroughSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 20P MTA100 CONN ASSY F/T GRN
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称Q1137158标准包装规格250
标准包装数量Bulk

合规参数

RoHSContains lead / RoHS non-compliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA认证CertifiedRoHS/ELV合规状态Not ELV/RoHS compliant
材料阻燃等级UL 94V-2

电气参数

额定电压250 VAC供电电压250
额定交流电压250连接器阻抗IDC
最大额定电流5

机械参数

颜色Green间距2.54 mm
高度7.75 mm [ .305 in ]长度50.8 mm [ 2 in ]
包装方式Bulk遮蔽类型No
导线类型Discrete or Ribbon Cable壳体颜色白色
出线方向90°电缆类型分离式导线, 绞线
导线线规28 AWG端接方式IDT
触头类型Female Socket第二连接器With
外壳颜色Green安装类型Free Hanging (In-Line)
连接器类型Feed Thru接触镀层Tin-Lead Over Nickel
触点时序Without紧固类型Locking Ramp
安装样式Wire排数1
外壳材料（壳体）标准连接器用途Receptacle
插入件材料铜合金触头材料Phosphor Bronze
壳体材料Nylon安装特性Without
包装数量Loose Piece面板安装类型Without
电缆端接方式IDC端接样式IDC
第一触头极性Socket (Female)配接方向Without
触点数20端接表面处理带有
接触件端接Locking Lance绝缘直径1.52 mm [ .06 in ]
位数20兼容外壳尺寸（如TM-700等）MTA .100 头和 MTA .100 IDC 柱形连接器
安装孔直径不带接触件表面处理 - 配合锡铅
典型触点布局2.54 [0.100]表面贴装焊盘尺寸Without
接触镀层厚度80µin (2.03µm)恢复后小径No
线规或范围 - mm²0.08-0.09² [28]静电放电屏蔽带有

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别F系列MTA-100
产品特性Feed Through可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Wire跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]

文档与媒体

在线文档
2-640623-0?RQPN=2-640623-0

相关型号

2-641124-0

2-641124-0

te connectivity / amp

Conn Wire to Board HDR 20 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 20PS STR .100 15GOLD Headers & Wire Housings 20P MTA100 HDR ASSY P/STR 15AU 20P MTA100 HDR ASSY P/STR 15AU 20P MTA100 HDR ASSY P/STR 15AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥15.3000
详情
暂无图片

644352-3

te connectivity / amp

Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole CONN HEADER 20POS VERT .100 TIN

详情
2-640456-0

2-640456-0

te connectivity / amp

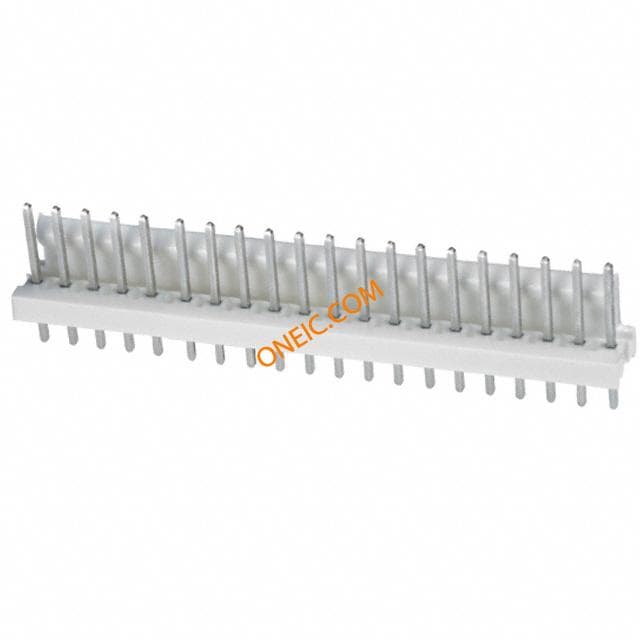

Conn Wire to Board HDR 20 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 20POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 20 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings HEADER 20 POS Conn Wire to Board HDR 20 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 20Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP Header,FrictionLock;MTA-100;20;250VAC;Polyester;Tin;CopperAlloy;Tin TE Connectivity MTA-100 系列 2.54mm节距 20路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 20P MTA100 HDR ASSY F/L SQ STR
