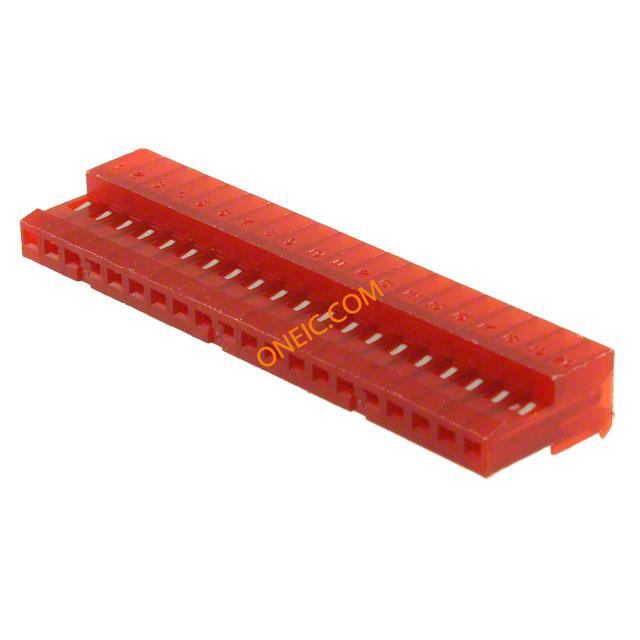

5-640440-0
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 20POS 22AWG MTA100 Connector,ClosedEnd,20,0.100in.,22AWG Headers & Wire Housings REC 20P C/E 22AWG W/O TABS Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 20Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application, Wire-to-Wire ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP CONNECTOR, WIRE TO BOARD, RCPT, 20POS, 1ROW Connector;ClosedEnd;20;0.100in.;22AWG 20P MTA100 CONN ASSY 22AWG RED |
| 分类 |
商业参数
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | 认证机构 | CSA,UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 量程（°/s） | :TE - MTA-100 Series | 额定电压 | 250 V |
| 开关功能 | Ramp Lock | 额定交流电压 | 250 |
| 最大额定电流 | 5A | ||
机械参数
| 颜色 | Red | 间距 | 2.54 mm |
| 长度 | 2in | 重量 | 0 |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 导线类型 | Discrete or Ribbon Cable | 出线方向 | 90° |
| 导线线规 | 22 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 第二连接器 | With |
| 外壳颜色 | Red | 安装类型 | Free Hanging (In-Line) |
| 行程角度 | Right | 连接器类型 | Closed End |
| 接触镀层 | Tin Over Nickel | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 1 |
| 连接器用途 | Receptacle | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 总长度 | 2" |
| 安装特性 | Without | 包装数量 | Loose Piece |
| 面板安装类型 | Without | 主要材料 | InterconnectSystem |
| 电缆端接方式 | IDC | 插针孔直径 | 0.1" |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 配接方向 | Without | 触点数 | 20 |
| 接触件端接 | :IDC / IDT | 位数 | 20 |
| 典型触点布局 | 2.54 [0.100] | 接触镀层厚度 | 80µin (2.03µm) |
| 恢复后小径 | No | 线规或范围 - mm² | 0.3-0.4² [22] |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | MTA-100 | 产品特性 | Closed End |
| 制造商全称 | AMP | 产品子类型 | MTA-100 Connectors |
| 连接类型 | Wire | 跳过的位置数 | None |
环境参数
| 工作温度 | +105°C | ||
