2-641238-0
| 制造商 | |
| 描述 | Conn IDC Connector F 20 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 20POS 24AWG MTA-100 |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | Not ELV/RoHS compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定交流电压 | 250 | ||
机械参数
| 颜色 | White | 间距 | 2.54 mm |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 导线类型 | Discrete or Ribbon Cable | 出线方向 | 90° |
| 导线线规 | 24 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 第二连接器 | With |
| 外壳颜色 | White | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Closed End | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Locking Ramp | 排数 | 1 |
| 连接器用途 | Receptacle | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 安装特性 | Without |
| 包装数量 | Loose Piece | 面板安装类型 | Without |
| 电缆端接方式 | IDC | 配接方向 | Without |
| 触点数 | 20 | 位数 | 20 |
| 典型触点布局 | 2.54 [0.100] | 接触镀层厚度 | 30µin (0.76µm) |
| 恢复后小径 | No | 线规或范围 - mm² | 0.2² [24] |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 产品特性 | Closed End | 制造商全称 | AMP |
| 产品子类型 | MTA-100 Connectors | 连接类型 | Wire |
| 跳过的位置数 | None | ||
相关型号
2-641124-0
te connectivity / amp
Conn Wire to Board HDR 20 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 20PS STR .100 15GOLD Headers & Wire Housings 20P MTA100 HDR ASSY P/STR 15AU 20P MTA100 HDR ASSY P/STR 15AU 20P MTA100 HDR ASSY P/STR 15AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
2-643075-0
te connectivity / amp
Connector Accessories 20 POS Strain Relief Closed End Covers Nylon White Headers & Wire Housings 20P MTA100 MOLDED CO MTA, CST and SL Accessories 20P MTA100 MOLDED COVER AMP MTA100 Strain Relief Cover 20P white Connector Accessories 20 POS Strain Relief Closed End Covers Nylon White Product Highlights:Strain Relief CoversWithout Panel AttachmentCover Style = Closed EndNumber of Positions = 20Used For MTA-100 ConnectorsSearch Keywords:Keying plug type, PCB, Wire-to-Board, .050 Centerline, IDC, Discrete Wire Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, PWRSIGALLP Cover,StrainRelief;Nylon;White;AMPBrand
644352-3
te connectivity / amp
Conn Unshrouded Header HDR 20 POS 2.54mm Solder ST Thru-Hole CONN HEADER 20POS VERT .100 TIN

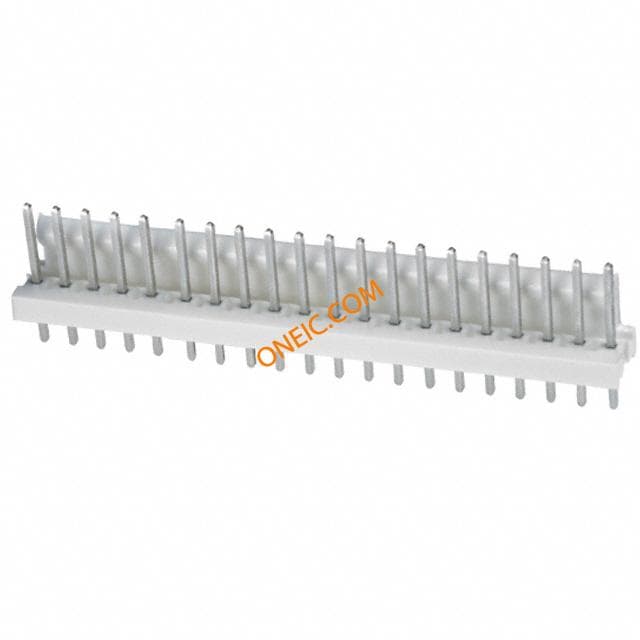

2-640456-0
