2-440129-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing RCP 2 POS 2mm Crimp ST Cable Mount High Performance Interconnects (HPI) CONN RCPT 2POS 2MM CRIMP BLUE Headers & Wire Housings HPI 2.0mm HSG 2P BLU HPI 2.0mm,HSG,2pos,Blu |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 无铅定义 | Not relevant for lead free process |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 供电电压 | 250 VAC | 输入电阻 | 1000 |
| 连接器阻抗 | 压接 | 最大额定电流 | 3 |
| 保护额定电压（VPR） | 1000 VAC | ||
机械参数
| 颜色 | Blue | 间距 | 2 mm |
| 宽度 | .272 in, 6.9 mm | 高度 | 4.5 mm [ .177 in ] |
| 长度 | 5.8 mm [ .228 in ] | 锁定类型 | 不带 |
| 包装方式 | Bulk | 壳体颜色 | 蓝色 |
| 导线线规 | 30 – 24 | 触头类型 | Female Socket |
| 外壳颜色 | Blue | 安装类型 | Straight |
| 连接器类型 | Receptacle | 安装样式 | 不带 |
| 排数 | 1 | 插入件材料 | 铜合金 |
| 锁定特性 | 带有 | 壳体材料 | Nylon 66 |
| 包装数量 | 2000 | 面板安装类型 | 不带 |
| 端接样式 | 插座 | 触点数 | 2 |
| 接触件端接 | Crimp | 绝缘直径 | .9 – 1.5 mm [ .0354 – .059 in ] |
| 位数 | 2 | 兼容外壳尺寸（如TM-700等） | 440054-x- 440205-x- 1775470-x- 440055-x- 1734827-x- 1775469-x |
| 安装孔直径 | 带有 | 中心触点材料 | 2.00 [0.079] |
| 典型触点布局 | 同轴 | 静电放电屏蔽 | 不带 |
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 可密封 | 否 |
| 产品子类型 | Receptacle | ||
环境参数
| 测试温度 | 标准部件 - 非辉光导线 | 工作温度 | -25 – 85 °C [ -13 – 185 °F ] |
文档与媒体
相关型号

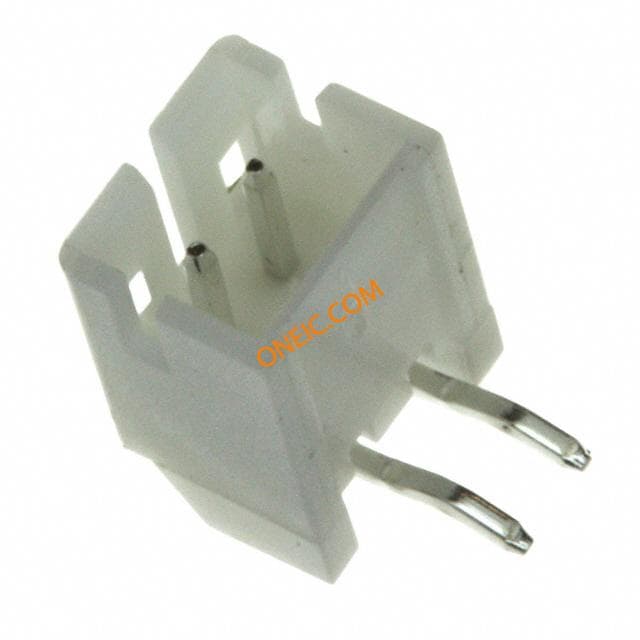

440055-2
te connectivity / amp
Conn High Performance Interconnect HDR 2 POS 2mm Solder RA Thru-Hole High Performance Interconnects (HPI) CONN HEADER 2POS R/A 2MM T/H Headers & Wire Housings 2.0mm HDR 2pos R/A HPI High Performance Interconnects (HPI) Product Highlights:2.00 mm CenterlineHeaderNumber of Positions = 2Housing Color = NaturalRight Angle Mount AngleSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal 2.0mm,HDR,2pos,R/A

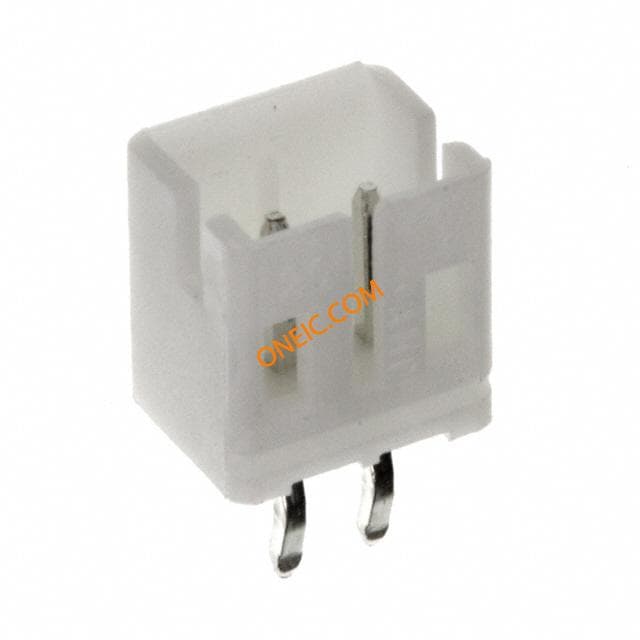

440054-2
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Bag High Performance Interconnects (HPI) CONN HEADER 2POS 2MM VERT T/H TE Connectivity HPI Series 2mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.0mm HDR 2pos VERT HPI Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Bag Product Highlights:2.00 mm CenterlineHeaderNumber of Positions = 2Housing Color = NaturalVertical Mount AngleSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal CONNECTOR, HEADER, HPI, 2MM, 2WAY Headervert2way2mmHPI TE Connectivity HPI 系列 2mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 2.0mm,HDR,2pos,Vertical

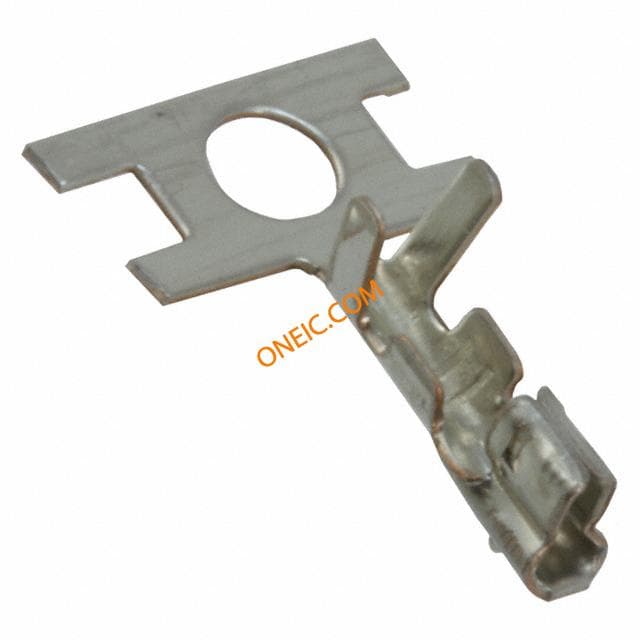

1735801-1
te connectivity / amp
Contact SKT Crimp ST Cable Mount Reel CONN SOCKET 24-30AWG TIN Headers & Wire Housings 2mm CRIMP SOCKET 24-30 AWG Contact SKT Crimp ST Cable Mount Reel Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal Contact,Socket,250VAC/250VDC;30-24AWG CONN SOCKET 24-30AWG 2.0mm,Crimp,Contact
1775470-2
te connectivity / amp
Conn Shrouded Header HDR 2 POS 2mm Solder ST SMD Reel Miscellaneous Wire to Board Products CONN HEADER 2POS 2MM VERT SMD Headers & Wire Housings 2 POS HDR VERT SMT 2.0mm Conn Shrouded Header HDR 2 POS 2mm Solder ST SMD Reel Product Highlights:2.00 mm CenterlineConnectorConnector Type = Header - Pin2 PositionsHousing Color = NaturalSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal HPI CONN., 2.0mm, V/T, SMT, 2P, 80u"

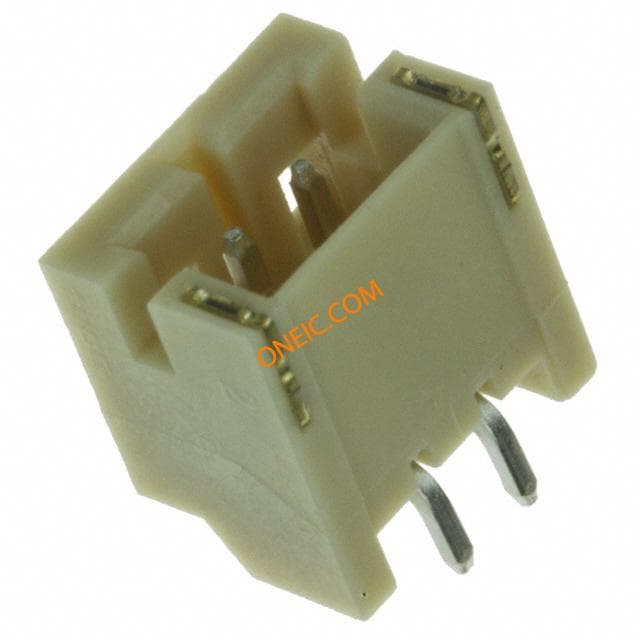

1775469-2
te connectivity / amp
Conn High Performance Interconnect PL 2 POS 2mm Solder RA SMD Reel CONN HEADER 2POS 2MM R/A SMD HPI CONN., 2.0mm, R/A, SMT, 2P, 80u"
1734827-2
te connectivity / amp
Conn High Performance Interconnect HDR 2 POS 2mm Solder RA SMD Reel Headers & Wire Housings 2 POS HDR R/A SMT 2.0mm CONN HEADER 2POS 2MM R/A SMD Headers & Wire Housings 2 POS HDR R/A SMT 2.0 WTB HDR .5 SQ RA SMT 2P 2.0 WTB HDR .5 SQ RA SMT 2P Search Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal
