点击放大查看

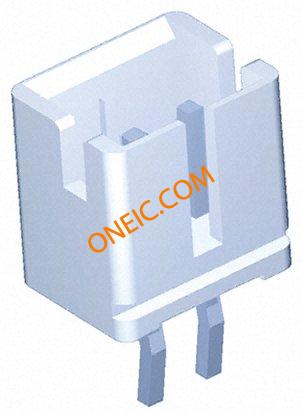

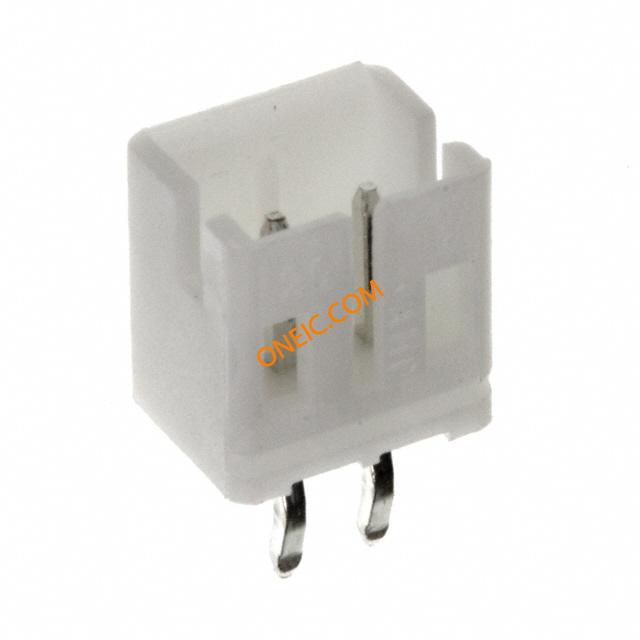

440054-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Bag High Performance Interconnects (HPI) CONN HEADER 2POS 2MM VERT T/H TE Connectivity HPI Series 2mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.0mm HDR 2pos VERT HPI Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Bag Product Highlights:2.00 mm CenterlineHeaderNumber of Positions = 2Housing Color = NaturalVertical Mount AngleSearch Keywords:high performance, square peg, pcb connectors, wire to board, power, crimp, discrete wire connectors, wire to board, signal CONNECTOR, HEADER, HPI, 2MM, 2WAY Headervert2way2mmHPI TE Connectivity HPI 系列 2mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 3A , 通孔 2.0mm,HDR,2pos,Vertical |
| 分类 |
商业参数
| 商标名 | Common Termination | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Wave solder capable to 240°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - HPI Series | 额定电压 | 250 V ac/dc |
| 最大额定电流 | 3A | ||
机械参数
| 颜色 | Natural | 间距 | 2 mm |
| 重量 | 0.02 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Natural | 安装类型 | Vertical |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin Over Nickel |
| 安装样式 | Through-Hole | 排数 | 1 |
| 触头材料 | Copper Alloy | 壳体材料 | Nylon 66 |
| 框架材料 | Brass | 主要材料 | WiretoBoard |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 触点数 | 2 | 接触件端接 | :Press Fit Vertical |
| 位数 | 2 | 中心触点材料 | 2.00 [0.079] |
| 接触长度 - 配合 | 0.132" (3.35mm) | 接触镀层厚度 | 80µin (2.03µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | HPI | 制造商全称 | HPISeries |
| 产品子类型 | Header | 加载位置数 | All |
