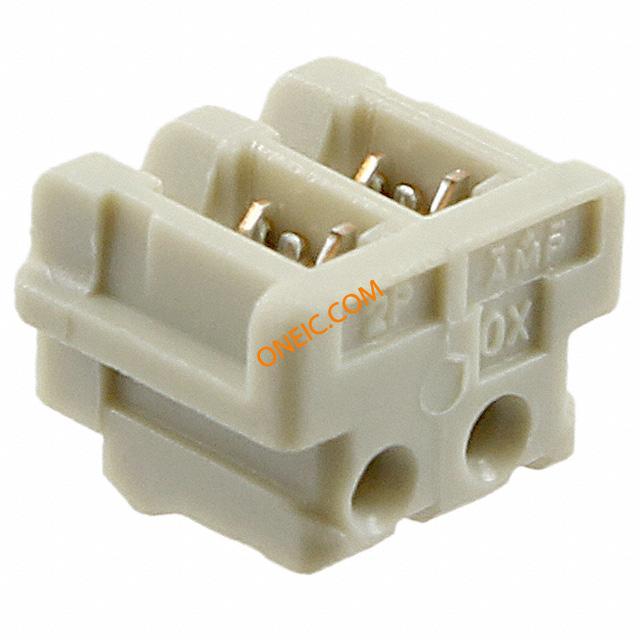

2-179694-2

点击放大查看

2-179694-2

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 2 POS 2mm IDT RA Cable Mount Bag 2mm AMP CT CONN RCPT 2POS IDC MT 2MM SGL Headers & Wire Housings 2mm MT REC 2P GRY Conn IDC Connector RCP 2 POS 2mm IDT RA Cable Mount Bag Product Highlights:ConnectorConnector Type = Blindmate, MT (Mass Termination)Mating Type = ReceptacleNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, 2mm CT MT REC ASSY 2P GRAY
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名Common Termination产品类别Headers & Wire Housings
标准包装数量Bulk工厂包装数量1000

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

连接器阻抗刺破式压接 (IDC)

机械参数

颜色Gray间距2 mm
包装方式Bulk导线类型Discrete
导线线规24 AWG端接方式IDT
触头类型Female Socket外壳颜色Gray
安装类型Free Hanging (In-Line)连接器类型IDC Mass Termination
接触镀层Pre-Tin安装样式Wire
排数1连接器用途Receptacle
触头材料Phosphor Bronze壳体材料PBT - GF
总长度2.00 [0.079]包装数量Bag
面板安装类型Without电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
触点数2绝缘直径0.095 – 1.05 [0.037 – 0.041]
位数2安装孔直径带有
线规或范围 - mm²0.20-0.24² [24]

产品信息

类型IDC Connector连接器性别RCP
系列AMP CT产品子类型Connector
连接类型Wire

文档与媒体

在线文档
2-179694-2?RQPN=2-179694-2

相关型号

176394-2

176394-2

te connectivity / amp

Conn Shrouded Header HDR 2 POS 2mm Solder RA Thru-Hole Bag 2mm AMP CT CONN HEADER 2POS R/A 2MM GOLD Headers & Wire Housings BOX HDR ASSY H 2P AU CT BOX HDR ASSY H 2P GOLD

¥2.2236
详情

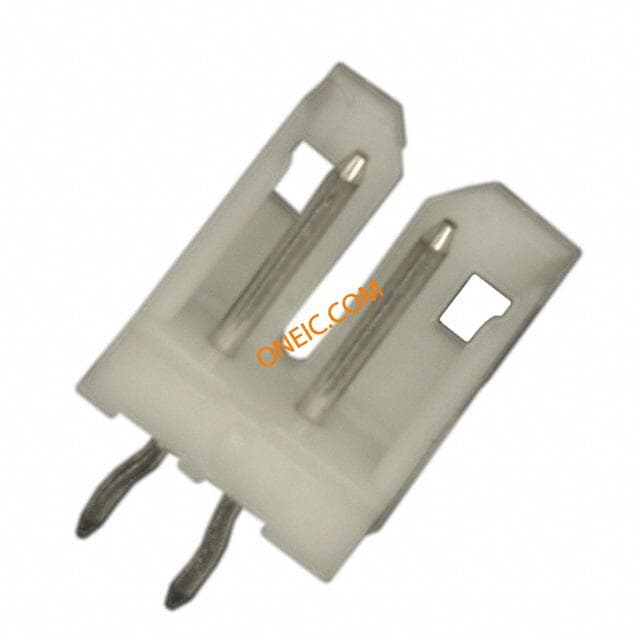

292161-2

292161-2

te connectivity / amp

Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole 2mm AMP CT CONN HEADER 2POS VERT 2MM T/H TE Connectivity 292161 Series 2mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings 2P VERT HDR ASSY Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, WIRE-BOARD CONNECTOR, HEADER, 2POS, 2MM CTP/HDRASSYV2PW/KINK Pin header straight Pitch2 mm Poles 2 CT, 292161-2, TE Connectivity TE Connectivity AMP CT 系列 2mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 2A , 通孔 CT P/HDR ASSY V 2P W/KINK NAT

¥0.5168
详情

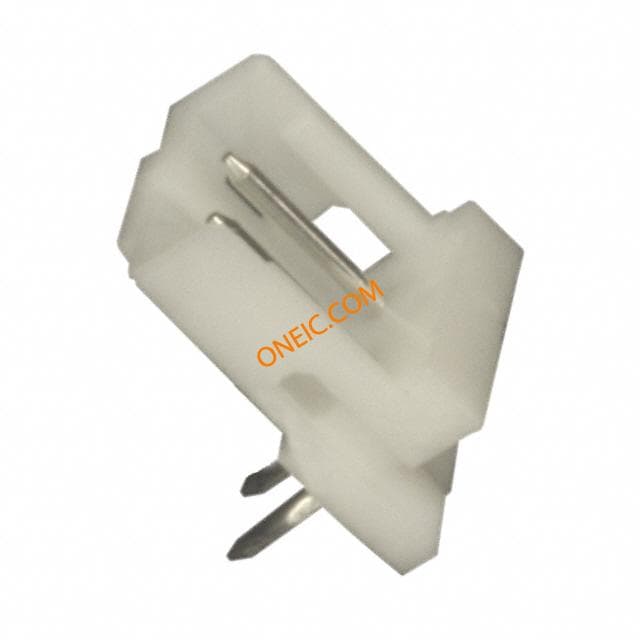

292253-2

292253-2

te connectivity / amp

Conn Shrouded Header HDR 2 POS 2mm Solder RA Thru-Hole 2mm AMP CT CONN HEADER 2POS R/A 2MM T/H TIN TE Connectivity 292253 Series 2mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings HDR PIN 1X02C R/A Conn Shrouded Header HDR 2 POS 2mm Solder RA Thru-Hole Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CTCONNMTHDRASSYH2PNAT Pin header 90° Pitch2 mm Poles 2 CT, 292253-2, TE Connectivity TE Connectivity AMP CT 系列 2mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 2A , 通孔 CT CONN MT HDR ASSY H 2P NAT

¥0.7344
详情
292156-2

292156-2

te connectivity / amp

Conn Coupler Header M/M 2 POS 2mm ST Panel Mount 2mm AMP CT CONN HEADER CT 2POS FREE HANGING Header plug, 2mm, 2 way,free hanging, CT Headers & Wire Housings CT RELAY HEADER Conn Coupler Header M/M 2 POS 2mm ST Panel Mount Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, Headerplug,2mm,2way,freehanging,CT TE Connectivity AMP CT 系列 1 行 2mm 节距 2 路 直 公/公 面板安装 PCB 壳体 CT RELAY HDR ASSY FREE HANGING

¥0.8432
详情
292133-2

292133-2

te connectivity / amp

Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole 2mm AMP CT CONN HEADER 2POS VERT 2MM Headers & Wire Housings CT P/HDR ASSY BOX V 2P W/O KIN Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT P/HDR ASSY BOX V 2P W/O KIN

¥1.1954
详情
292165-2

292165-2

te connectivity / amp

Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Tube 2mm AMP CT CONN HDR 2POS VERT 2MM TIN T/H Headers & Wire Housings CT P/HDR BOX V 2P T/P NAT CT P/HDR BOX V 2P T/P NAT CT P/HDR BOX V 2P T/P NAT Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors,

¥0.8160
详情
2-292175-2

2-292175-2

te connectivity / amp

Conn Shrouded Header HDR 2 POS 2mm Solder ST SMD Embossed T/R 2mm AMP CT CONN HEADER 2POS SMD TIN BLK Headers & Wire Housings CT BOX HDR V SMT 2P O/TAPE BLA 2mm AMP CT Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT BOX HDR V SMT 2P O/TAPE BLA

¥2.2576
详情
2-292173-2

2-292173-2

te connectivity / amp

Conn Shrouded Header HDR 2 POS 2mm Solder RA SMD Embossed T/R 2mm AMP CT CONN HEADER 2POS SMD R/A TIN BLK TE Connectivity 2-292173 Series 2mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings HDR PIN 1X02C R/A Conn Shrouded Header HDR 2 POS 2mm Solder RA SMD Embossed T/R Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, HEADER, 2MM, CT, PCB, 2WAY Shroudedheader2way,2mm,90¦,CT,SMD TE Connectivity AMP CT 系列 2mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 2A , 表面安装 CT BOX HDR H SMT 2P O/TAPE BLA

¥3.2708
详情
292172-2

292172-2

te connectivity / amp

Conn Shrouded Header HDR 2 POS 2mm Solder ST SMD Tube Headers & Wire Housings CT POST HDR ASSY 2P IN-TUBE BL 2mm AMP CT CONN HEADER 2POS SMD VERT TIN 2mm AMP CT Connectors 2mm AMP CT Connectors Product Highlights:Wire-to-BoardApplies To Printed Circuit Board2.00 mm CenterlineConnectorHeaderSearch Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT POST HDR ASSY 2P IN-TUBE BL

¥1.4076
详情

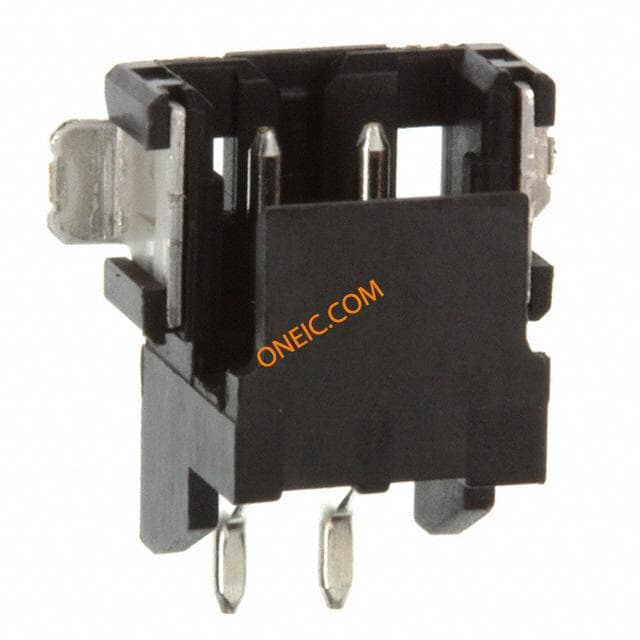

292173-2

292173-2

te connectivity / amp

Conn Shrouded Header HDR 2 POS 2mm Solder RA SMD Embossed T/R 2mm AMP CT CONN HEADER 2POS R/A 2MM SMD TIN Headers & Wire Housings HDR 2 POS BLK SMT Conn Shrouded Header HDR 2 POS 2mm Solder RA SMD Embossed T/R Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CONNECTOR, 2WAY, R/A, 2 Pin header 90° SMD Pitch2 mm Poles 2 CT, 292173-2, TE Connectivity CT BOX HDR H SMT 2P O/TAPE BLA

¥2.8227
详情
292134-2

292134-2

te connectivity / amp

Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Bag 2mm AMP CT CONN HDR 2POS VERT 2MM WHT T/H Headers & Wire Housings BOX HDR V 2P AU W/KINK CT BOX HDR ASSY V 2P AU W/KINK CT BOX HDR ASSY V 2P AU W/KINK Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors,

¥2.9543
详情

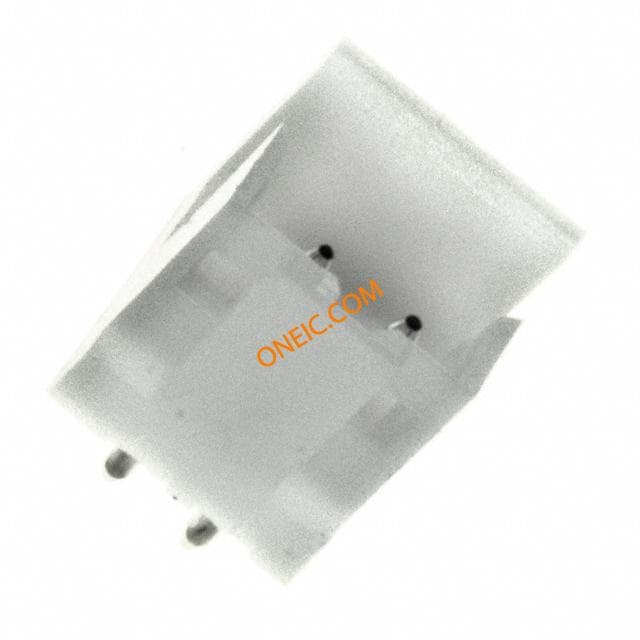

292132-2

292132-2

te connectivity / amp

Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole 2mm AMP CT CONN HEADER 2POS VERT PCB TIN TE Connectivity 292132 Series 2mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings HDR PIN 1X02C VRT Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CTP/HDRBOXV2PNAT TE Connectivity AMP CT 系列 2mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 2A , 通孔 CT P/HDR BOX V 2P NAT

¥0.6433
详情

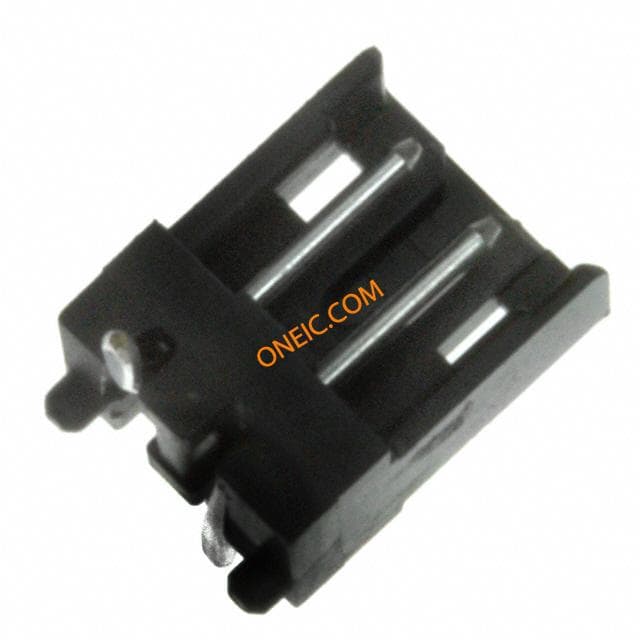

292171-2

292171-2

te connectivity / amp

Conn Wire to Board HDR 2 POS 2mm Solder ST SMD Tube 2mm AMP CT CONN HEADER 2POS VERT SMD TIN Headers & Wire Housings 2P POST HDR ASSY 2mm Conn Wire to Board HDR 2 POS 2mm Solder ST SMD Tube Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = Header2 PositionsNumber of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, Pin header straight SMD Pitch2 mm Poles 2 CT, 292171-2, TE Connectivity CT POST HDR ASSY 2P IN-TUBE BL

¥1.5137
详情
292164-2

292164-2

te connectivity / amp

Conn Shrouded Header HDR 2 POS 2mm Solder RA Thru-Hole Tube 2mm AMP CT CONN HEADER 2POS R/A 2MM TIN T/H Headers & Wire Housings CT P/HDR BOX H ASSY 2P T/P NAT 2mm AMP CT Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT P/HDR BOX H ASSY 2P T/P NAT

¥0.9044
详情
292204-2

292204-2

te connectivity / amp

Conn Card Edge SKT 8 POS 2mm Solder ST Thru-Hole 2mm AMP CT CONN CARD EDGE 8POS DL 2MM TIN Headers & Wire Housings CT CARD EDGE 8P ASSY CT CARD EDGE 8P ASSY

¥5.8480
详情

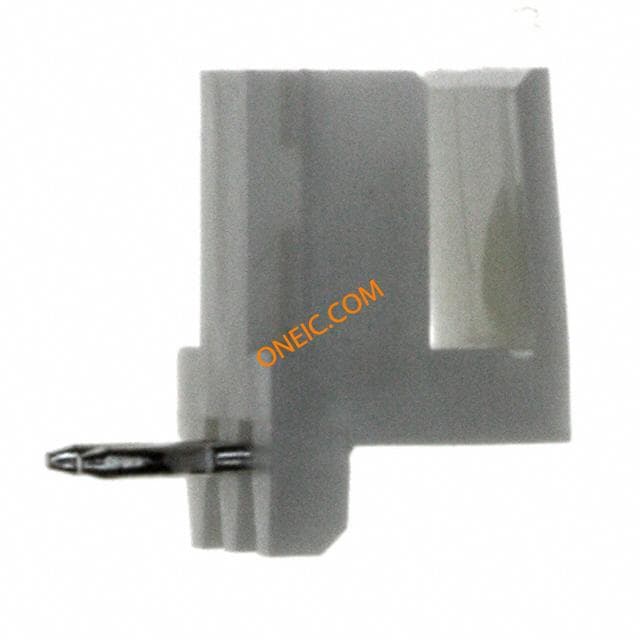

292250-2
