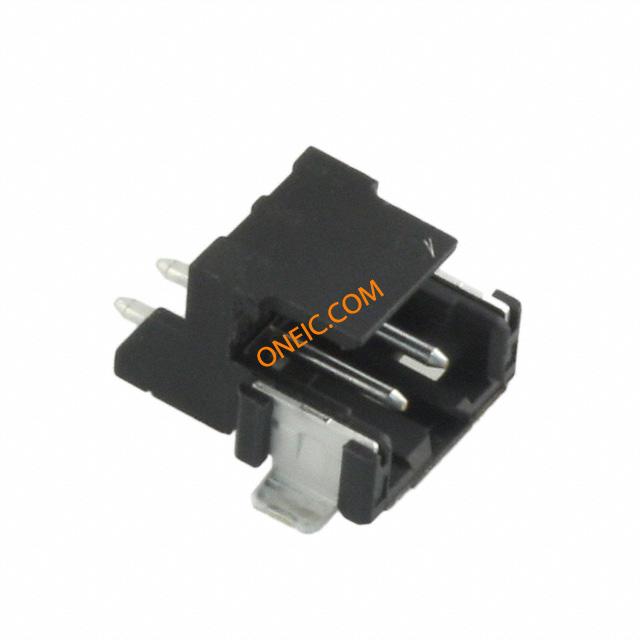

2-292173-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 2 POS 2mm Solder RA SMD Embossed T/R 2mm AMP CT CONN HEADER 2POS SMD R/A TIN BLK TE Connectivity 2-292173 Series 2mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings HDR PIN 1X02C R/A Conn Shrouded Header HDR 2 POS 2mm Solder RA SMD Embossed T/R Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, HEADER, 2MM, CT, PCB, 2WAY Shroudedheader2way,2mm,90¦,CT,SMD TE Connectivity AMP CT 系列 2mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 2A , 表面安装 CT BOX HDR H SMT 2P O/TAPE BLA |
| 分类 |
商业参数
| 商标名 | Common Termination | 其他名称 | A100981CT |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Tape & Reel |
| 工厂包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Reflow solder capable to 245°C | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMP CT Series | 额定电压 | 125 V ac/dc |
| 开关功能 | No | 接触电阻 | 20 mohm |
| 最大额定电流 | 2A | 最小供电电压 | 125VDC/125VAC |
机械参数

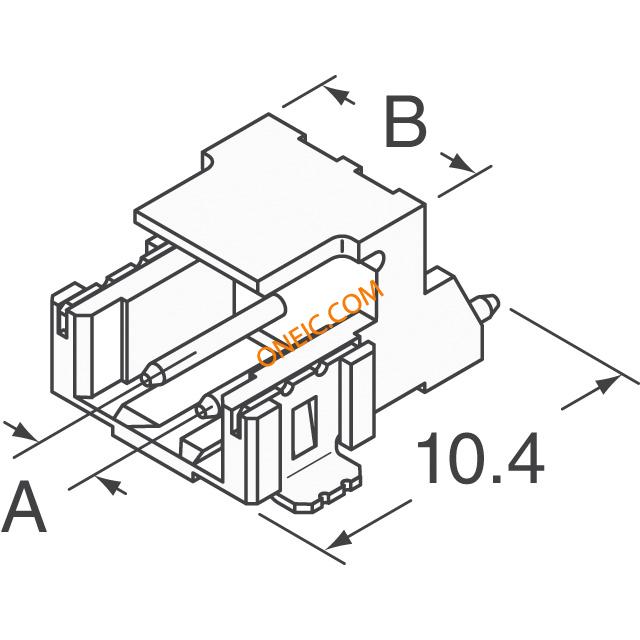

| 颜色 | Black | 深度 | 10.4 mm |
| 间距 | 2 mm | 高度 | 5.8 mm |
| 重量 | 0.02 | 包装方式 | Tape & Reel (TR) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Right Angle |
| 连接器类型 | Crimp, MT (Mass Termination) | 接触镀层 | Tin |
| 安装样式 | Surface Mount | 排数 | 1 |
| 连接器用途 | Header | 触头材料 | Brass |
| 壳体材料 | Polyphenylene Sulfide (PPS) | 总长度 | 2.00 [0.079] |
| 包装数量 | Tape Mounted | 面板安装类型 | Without |
| 端接样式 | SMD | 排针方向 | Box |
| 触点数 | 2 | 接触件端接 | :Surface Mount Right Angle |
| 位数 | 2 | 接触长度 - 配合 | 0.165" (4.19mm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | 2-292173 | 产品特性 | Solder Retention |
| CAD图纸 | 3D CAD Model | 产品子类型 | Connector |
| 连接类型 | Printed Circuit Board | 加载位置数 | All |
环境参数
| 工作温度 | -30C to 105C | ||
相关型号
6-179228-2
te connectivity / amp
Conn Housing RCP 2 POS 2mm Crimp ST Cable Mount 2mm AMP CT CT CRIMP-2 REC HSG 2P BLACK Headers & Wire Housings CT CRIMP-2 REC HSG 2P BLACK

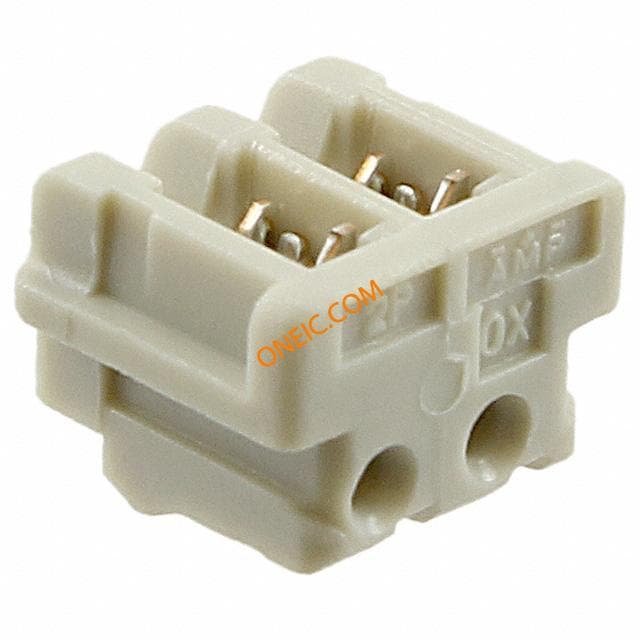

2-179694-2
te connectivity / amp
Conn IDC Connector RCP 2 POS 2mm IDT RA Cable Mount Bag 2mm AMP CT CONN RCPT 2POS IDC MT 2MM SGL Headers & Wire Housings 2mm MT REC 2P GRY Conn IDC Connector RCP 2 POS 2mm IDT RA Cable Mount Bag Product Highlights:ConnectorConnector Type = Blindmate, MT (Mass Termination)Mating Type = ReceptacleNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, 2mm CT MT REC ASSY 2P GRAY
4-179228-2
te connectivity / amp
Conn Housing RCP 2 POS 2mm Crimp ST Cable Mount 2mm AMP CT CT CRIMP-2 REC HSG 2P YELLOW Headers & Wire Housings CT CRIMP-2 REC HSG 2P YELLOW 2mm AMP CT Connectors 2mm AMP CT Connectors Product Highlights:ConnectorConnector Type = CrimpMating Type = Receptacle2 PositionsNumber of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors,
179228-2
te connectivity / amp
Conn Housing RCP 2 POS 2mm Crimp ST Cable Mount 2mm AMP CT CONN RCPT 2POS SGL CRIMP 2MM Receptacle housing, 2mm, 2 way, CT,white Headers & Wire Housings RCPT 2 POS CRIMP 2mm Conn Housing RCP 2 POS 2mm Crimp ST Cable Mount Product Highlights:ConnectorConnector Type = CrimpMating Type = ReceptacleNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, AMP-CTCRIMPHOUSING,CTCRIMPTYPERECHSG TE Connectivity AMP CT 系列 2mm 节距 2 路 直 母 压接连接器外壳 CT CRIMP TYPE REC HSG
2-179228-2
te connectivity / amp
Conn Housing RCP 2 POS 2mm Crimp ST Cable Mount 2mm AMP CT CT CRIMP-2 REC HSG 2P BLUE Receptacle housing, 2mm, 2 way, CT, blue Headers & Wire Housings CT CRIMP-2 REC HSG 2P BLUE Receptaclehousing,2mm,2way,CT,blue TE Connectivity AMP CT 系列 2mm 节距 2 路 直 母 压接连接器外壳

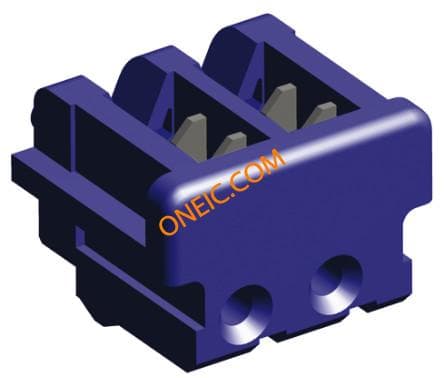

2-173977-2
