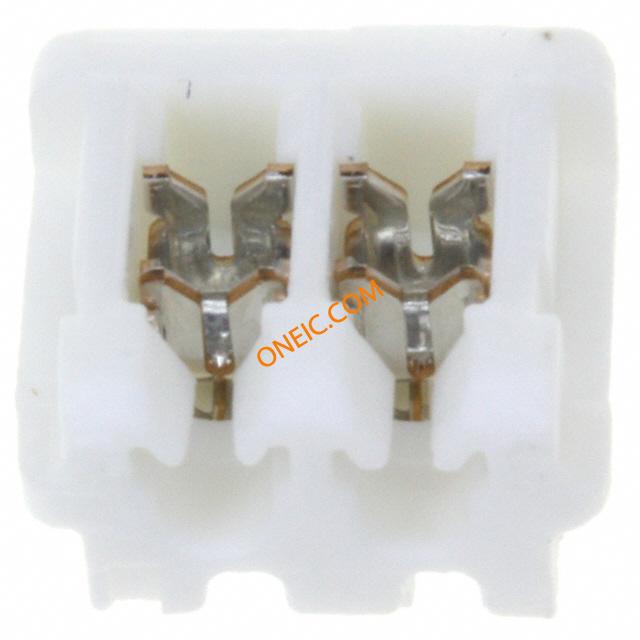

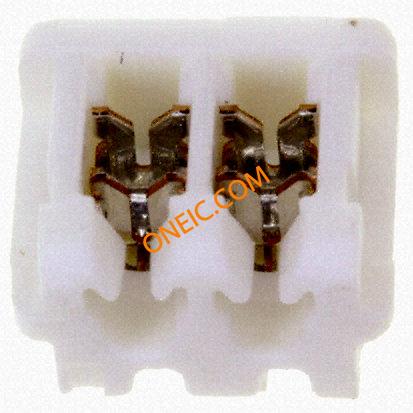

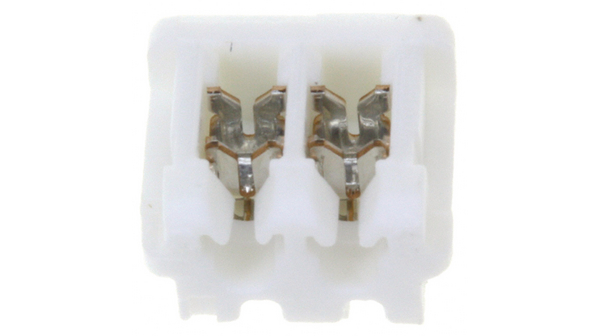

173977-2

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector RCP 2 POS 2mm IDT ST Cable Mount Bag/Box 2mm AMP CT CONN RCPT 2POS 28-26AWG 2MM 2 way AMP mating connector LumiLED Headers & Wire Housings 2MM 2P HSG Conn IDC Connector RCP 2 POS 2mm IDT ST Cable Mount Bag/Box Product Highlights:ConnectorConnector Type = Blindmate, MT (Mass Termination)Mating Type = ReceptacleNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CTCONNMTRECASSY2P Female cable connector Pitch2 mm Poles 2 CT, 173977-2, TE Connectivity TE Connectivity CT 系列天然色 2 路电缆组件, 额定电流 2A, 125 V 交流/直流 CT CONN MT REC ASSY 2P
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	Common Termination	产品类别	Headers & Wire Housings
标准包装数量	Bulk	工厂包装数量	1000

合规参数

RoHS	Lead free / RoHS Compliant	标准	IEC950
海关税号	85369010	无铅定义	Not relevant for lead free process
认证机构	UL	RoHS/ELV合规状态	RoHS compliant, ELV compliant
材料阻燃等级	UL 94V-0

电气参数

额定电压	125 V ac/dc	最大额定电流	2A
最小供电电压	125VAC

机械参数

颜色	Natural	深度	5.1 mm
间距	2 mm	高度	4.6 mm
重量	0.002	包装方式	Bulk
导线类型	Discrete or Ribbon Cable	导线线规	26-28 AWG
端接方式	IDT	触头类型	Female Socket
外壳颜色	White	安装类型	Free Hanging (In-Line)
行程角度	Straight	连接器类型	IDC Mass Termination
接触镀层	Pre-Tin	安装样式	Wire
排数	1	连接器用途	Receptacle
触头材料	Phosphor Bronze	壳体材料	PBT - GF
总长度	2.00 [0.079]	包装数量	1,000
面板安装类型	Without	主要材料	HighCurrent
电缆端接方式	IDC	插针孔直径	0.079"
端接样式	IDC	第一触头极性	Socket (Female)
连接器颜色	Natural	触点数	2
绝缘直径	0.85 â 1.05 [0.034 â 0.041]	位数	2
线规或范围 - mm²	0.08-0.15Â² [28-26]	每排/每行位置数	2

产品信息

类型	IDC Connector	连接器性别	RCP
系列	AMP CT	产品特性	Closed End
制造商全称	MTSeries	产品子类型	Connector
连接类型	Wire

环境参数

工作温度

-40C to 105C

文档与媒体

PDF 文档

1631402.pdf

在线文档

173977-2?RQPN=173977-2

相关型号

176394-2

te connectivity / amp

Conn Shrouded Header HDR 2 POS 2mm Solder RA Thru-Hole Bag 2mm AMP CT CONN HEADER 2POS R/A 2MM GOLD Headers & Wire Housings BOX HDR ASSY H 2P AU CT BOX HDR ASSY H 2P GOLD

¥2.2236

详情

58372-1

te connectivity / amp

Connector Accessories Terminating Head Hand Tools 2MM HEAD W/O TOOL TOOL HEAD ASSEM 2MM TERMINATER Tools, Crimp HEAD (IDC) 2MM C.T. W/O TL Tool head for IDC termination l, 58372-1, TE Connectivity TE Connectivity 2mm CT 系列

¥6732.6120

详情

292156-2

te connectivity / amp

Conn Coupler Header M/M 2 POS 2mm ST Panel Mount 2mm AMP CT CONN HEADER CT 2POS FREE HANGING Header plug, 2mm, 2 way,free hanging, CT Headers & Wire Housings CT RELAY HEADER Conn Coupler Header M/M 2 POS 2mm ST Panel Mount Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, Headerplug,2mm,2way,freehanging,CT TE Connectivity AMP CT 系列 1 行 2mm 节距 2 路直公/公面板安装 PCB 壳体 CT RELAY HDR ASSY FREE HANGING

¥0.8432

详情

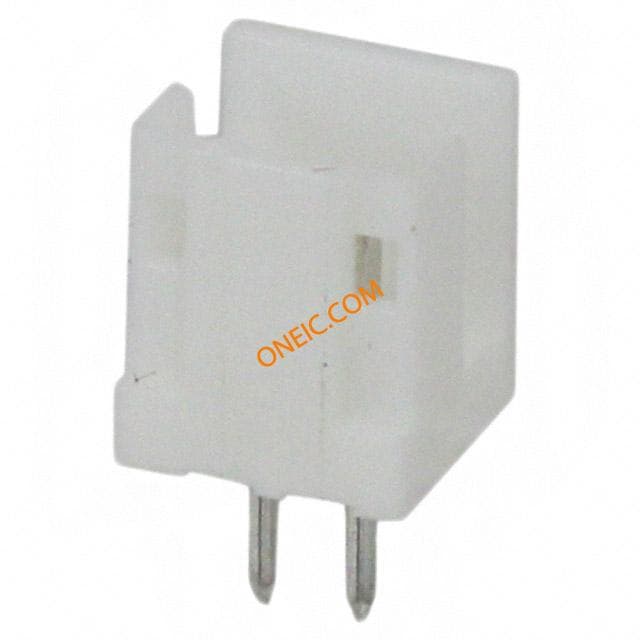

292133-2

te connectivity / amp

Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole 2mm AMP CT CONN HEADER 2POS VERT 2MM Headers & Wire Housings CT P/HDR ASSY BOX V 2P W/O KIN Conn Shrouded Header HDR 2 POS 2mm Solder ST Thru-Hole Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT P/HDR ASSY BOX V 2P W/O KIN

¥1.1954

详情

暂无图片

656154-1

te connectivity / amp

MTIS.HANDTOOL Hand Tools MTIS HANDTOOL TOOL HAND PISTOL GRIP MTIS

¥7642.2480

详情

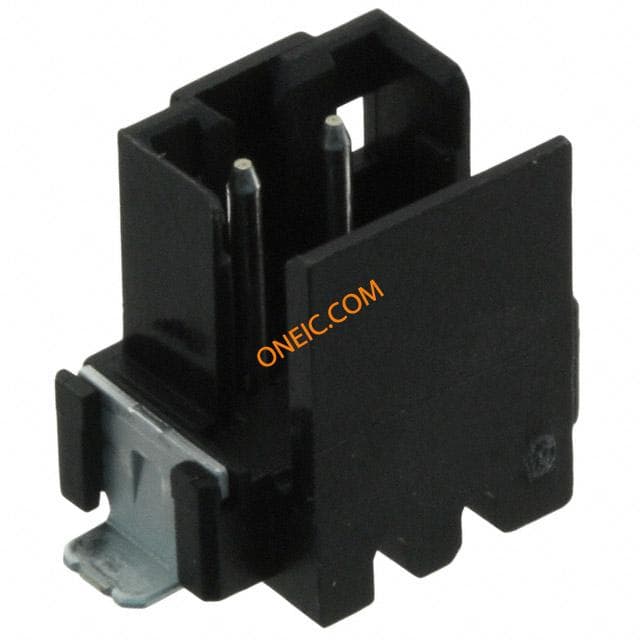

2-292175-2

te connectivity / amp

Conn Shrouded Header HDR 2 POS 2mm Solder ST SMD Embossed T/R 2mm AMP CT CONN HEADER 2POS SMD TIN BLK Headers & Wire Housings CT BOX HDR V SMT 2P O/TAPE BLA 2mm AMP CT Product Highlights:ConnectorConnector Type = MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, CT BOX HDR V SMT 2P O/TAPE BLA

¥2.2576

详情

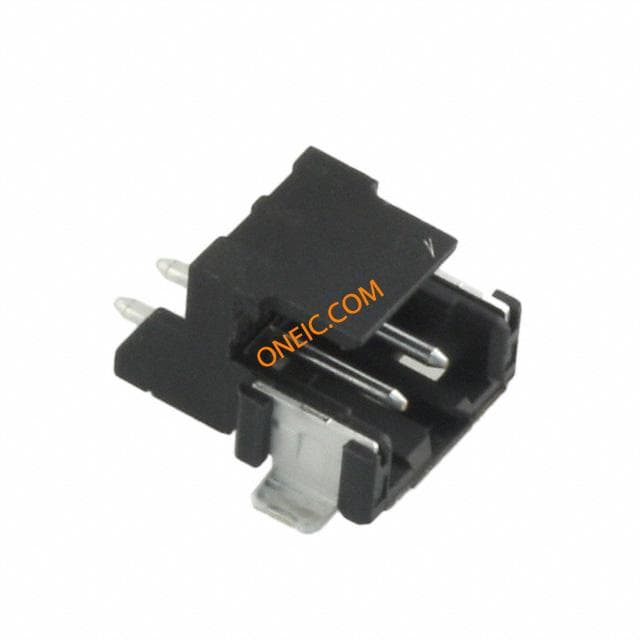

2-292173-2

te connectivity / amp

Conn Shrouded Header HDR 2 POS 2mm Solder RA SMD Embossed T/R 2mm AMP CT CONN HEADER 2POS SMD R/A TIN BLK TE Connectivity 2-292173 Series 2mm Pitch 2 Way 1 Row Right Angle PCB Header, Solder Termination, 2A Headers & Wire Housings HDR PIN 1X02C R/A Conn Shrouded Header HDR 2 POS 2mm Solder RA SMD Embossed T/R Product Highlights:ConnectorConnector Type = Crimp, MT (Mass Termination)Mating Type = HeaderNumber of Positions = 2Number of Rows = 1Search Keywords:Common Termination, wire-to-wire, hybrid power, discrete wire, flat shielded cable, Input/Output, NIC, Network Interface Cards, PC Cards, drawer, hybrid power, signal, pcb connectors, HEADER, 2MM, CT, PCB, 2WAY Shroudedheader2way,2mm,90Â¦,CT,SMD TE Connectivity AMP CT 系列 2mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 2A , 表面安装 CT BOX HDR H SMT 2P O/TAPE BLA

¥3.2708

详情

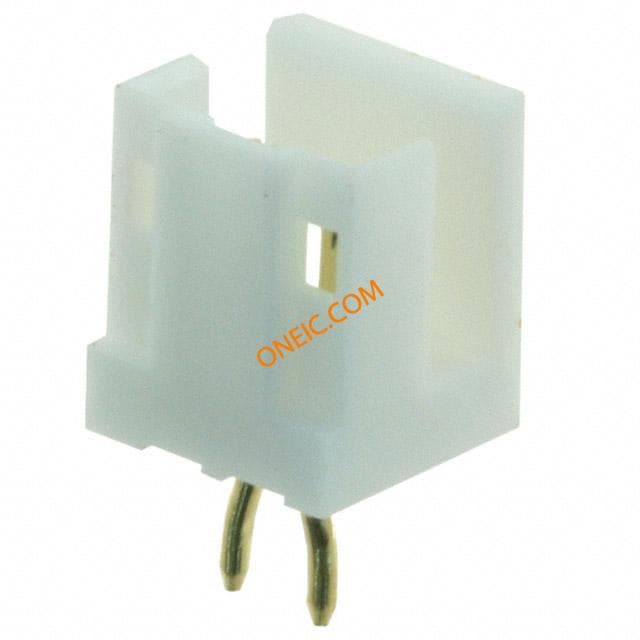

292134-2
