点击放大查看

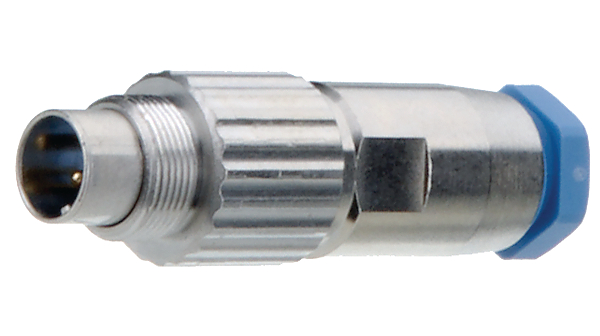

2-1437719-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shielded Circular Subminiature PIN 5 POS Solder ST Cable Mount 5 Terminal 1 Port Shielded Circular Subminiature Connectors (TRIAD 01) CONN PLUG PIN 5POS SLD CUP STR 5 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Standard Circular Connector PIN 5 POS 3A SOLDER Conn Shielded Circular Subminiature PIN 5 POS Solder ST Cable Mount 5 Terminal 1 Port Product Highlights:Connector5 ContactsPinContact Current Rating = 3 Amps.Wire Size = 0.25 mm² [AWG]Search Keywords:soft shell, input/output, IP65, DIN 40050, sealed, box to box, CONNECTOR, PLUG, CIRCULAR SUB, 30AWG, 5P 5WAYFREEPLGPINCONTACT Connector: circular; plug; male; PIN:5; gold plated; 3A; IP65; 4um Cable connector, Triad 01 5-pin Poles=5, 2-1437719-1, TE Connectivity TE Connectivity TRIAD™ 01 系列 5路 电缆安装 直向 连接器 插头 T01-0550-P05-MALE PLUG CONNECTOR SOLDER |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | DIN 40050 |
| 海关税号 | 85369010 | ||
电气参数
| 测试电压 | 625V | 额定电压 | 60VAC |
| 最大额定电流 | 3A | ||
机械参数
| 重量 | 0.05 | 包装方式 | Bulk |
| 方向 | Keyed | 外壳样式 | Plug |
| 端接方式 | Solder | 安装类型 | Cable Mount |
| 连接器类型 | Plug, Male Pins | 接触镀层 | :- |
| 紧固类型 | Threaded | 安装样式 | screwed |
| 插入角度 | :- | 锁定特性 | threaded joint |
| 本体材料 | :Copper Zinc Alloy | 触头材料 | :- |
| 连接器 - 电缆 | plug | 端接样式 | Solder |
| 第一触头极性 | Male | 触点数 | 5 |
| 接触件端接 | :Solder | 位数 | 5 |
| 镀层厚度（通用） | 4µm | 外壳尺寸-插件 | :- |
| 最大电缆长度 | 0.25mm2 | 外壳材料及表面处理 | Brass, Tribor Plated |
| 触点材料 - 镀层 | gold plated | 第一连接器安装类型 | :Cable |
产品信息
| 类型 | Shielded Circular Subminiature | 连接器性别 | PL |
| 系列 | Super Seal | 产品特性 | Shielded, Strain Relief |
| 产品子类型 | Connectors | 适配器系列 | TRIAD 01 |
| 单元数量 | 1 | ||
环境参数
| 机械寿命 | 500cycles | 防护等级 | IP65 - Dust Tight, Water Resistant |
| 工作温度 | -40°C ~ 85°C | ||
文档与媒体
相关型号

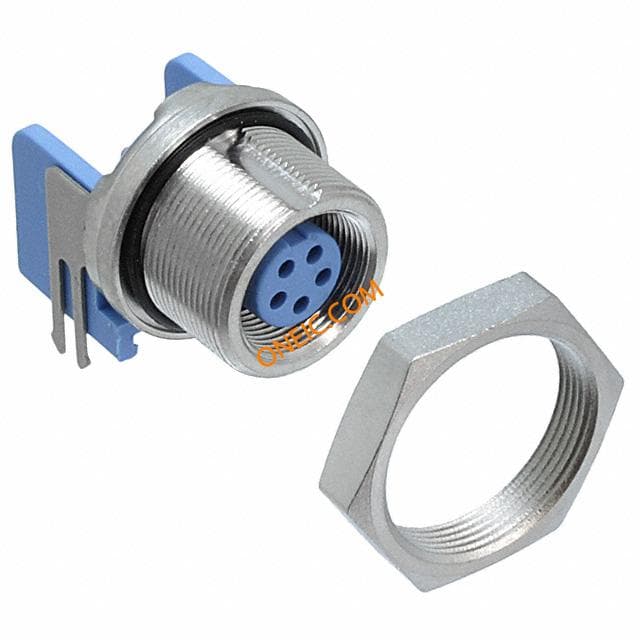

6-1437719-0
te connectivity / amp
Conn Shielded Circular Subminiature SKT 5 POS Solder RA Thru-Hole 5 Terminal 1 Port Shielded Circular Subminiature Connectors (TRIAD 01) CONN RCPT SKT 5POS SLD PNL R/A 5 Pole Male Right Angle Through Hole Industrial & Automation Circular Connector with Female Contacts Standard Circular Connector SOCKET HDR 5P 3A PCB Conn Shielded Circular Subminiature SKT 5 POS Solder RA Thru-Hole 5 Terminal 1 Port Product Highlights:Header5 ContactsSocketContact Current Rating = 3 Amps.Wire Size = 0.25 mm² [AWG]Search Keywords:soft shell, input/output, IP65, DIN 40050, sealed, box to box, TE Connectivity TRIAD™ 01 系列 5路 通孔 直角 连接器 插座 T01-0560-S05-FEMALE REC PANEL-PCB MNT RA

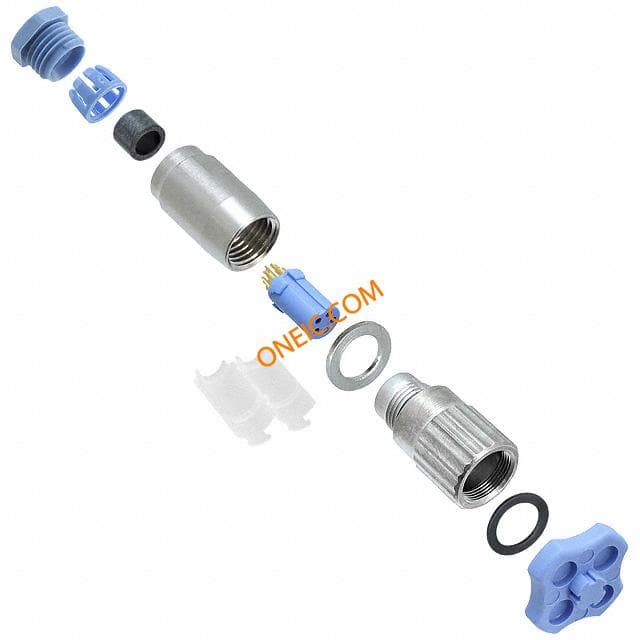

3-1437719-6
