T01-0540-S05
| 制造商 | TE Connectivity Ltd. |
| 描述 | CONN RCPT HSING SKT 5POS CRIMP Conn Shielded Circular Subminiature SKT 5 POS Crimp ST Cable Mount 5 Terminal 1 Port Conn Shielded Circular Subminiature SKT 5 POS Crimp ST Cable Mount 5 Terminal 1 Port Product Highlights:Connector5 ContactsSocketContact Current Rating = 1 Amps.Wire Size = 0.14 mm² [AWG], 0.25 mm² [AWG] |
| 分类 |
商业参数
| 标准包装数量 | 100 | ||
机械参数
| 包装方式 | Bulk | 方向 | Keyed |
| 触头类型 | Crimp | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle for Female Contacts | 紧固类型 | Threaded |
| 位数 | 5 | 外壳材料及表面处理 | Brass, Tribor Plated |
产品信息
| 备注 | Contacts Not Provided | 产品特性 | Shielded, Strain Relief |
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | ||
相关型号
2-1437719-1
te connectivity / amp
Conn Shielded Circular Subminiature PIN 5 POS Solder ST Cable Mount 5 Terminal 1 Port Shielded Circular Subminiature Connectors (TRIAD 01) CONN PLUG PIN 5POS SLD CUP STR 5 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Standard Circular Connector PIN 5 POS 3A SOLDER Conn Shielded Circular Subminiature PIN 5 POS Solder ST Cable Mount 5 Terminal 1 Port Product Highlights:Connector5 ContactsPinContact Current Rating = 3 Amps.Wire Size = 0.25 mm² [AWG]Search Keywords:soft shell, input/output, IP65, DIN 40050, sealed, box to box, CONNECTOR, PLUG, CIRCULAR SUB, 30AWG, 5P 5WAYFREEPLGPINCONTACT Connector: circular; plug; male; PIN:5; gold plated; 3A; IP65; 4um Cable connector, Triad 01 5-pin Poles=5, 2-1437719-1, TE Connectivity TE Connectivity TRIAD™ 01 系列 5路 电缆安装 直向 连接器 插头 T01-0550-P05-MALE PLUG CONNECTOR SOLDER

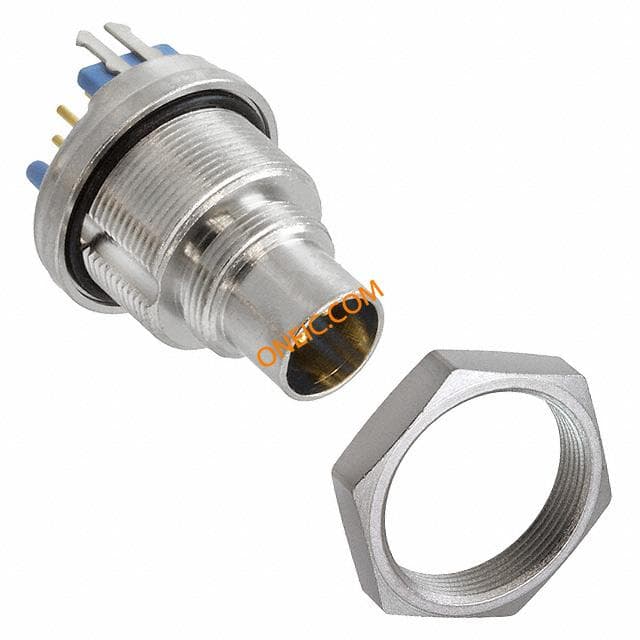

6-1437719-5
te connectivity / amp
Conn Shielded Circular Subminiature PIN 5 POS Solder ST Thru-Hole 5 Terminal 1 Port Shielded Circular Subminiature Connectors (TRIAD 01) CONN PLUG PIN 5POS SLD PNL MNT 5 Pole Male Straight Through Hole Industrial & Automation Circular Connector with Male Contacts Standard Circular Connector PIN HDR 5P 3A PCB Conn Shielded Circular Subminiature PIN 5 POS Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:Header5 ContactsPinContact Current Rating = 3 Amps.Wire Size = 0.25 mm² [AWG]Search Keywords:soft shell, input/output, IP65, DIN 40050, sealed, box to box, TRIAD1PNLMNTPLG,5W,PIN TE Connectivity 5路 通孔 直向 连接器 插头 , 公触点 T01-0570-P05-MALE REC PANEL-PCB STRAIGHT
T01-0580-P05
TE Connectivity
CONN PLUG PIN 5POS SLD CUP PNL Conn Shielded Circular Subminiature PIN 5 POS Solder ST Panel Mount 5 Terminal 1 Port Conn Shielded Circular Subminiature PIN 5 POS Solder ST Panel Mount 5 Terminal 1 Port Product Highlights:ConnectorHousing Gender = Header - PinContact Gender = Pin5 ContactsContact Current Rating = 3 A PLUG, PANEL MOUNT, 5WAY
T01-0560-P05
TE Connectivity
CONN PLUG PIN 5POS SLD PNL R/A PLUG, PCB, R/A, 5WAY
T01-0540-P05
TE Connectivity
CONN PLUG HSING PIN 5POS CRIMP Conn Shielded Circular Subminiature PIN 5 POS Crimp ST Cable Mount 5 Terminal 1 Port Conn Shielded Circular Subminiature PIN 5 POS Crimp ST Cable Mount 5 Terminal 1 Port Product Highlights:Connector5 ContactsPinContact Current Rating = 1 Amps.Wire Size = 0.14 mm² [AWG]
