点击放大查看

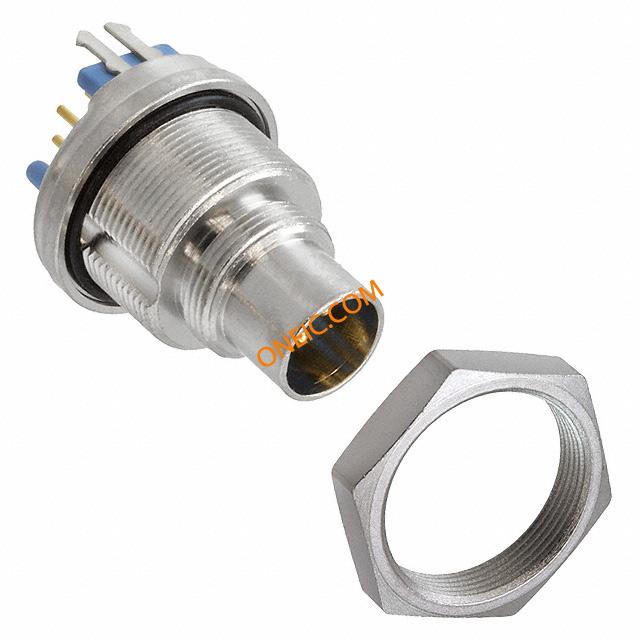

6-1437719-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shielded Circular Subminiature PIN 5 POS Solder ST Thru-Hole 5 Terminal 1 Port Shielded Circular Subminiature Connectors (TRIAD 01) CONN PLUG PIN 5POS SLD PNL MNT 5 Pole Male Straight Through Hole Industrial & Automation Circular Connector with Male Contacts Standard Circular Connector PIN HDR 5P 3A PCB Conn Shielded Circular Subminiature PIN 5 POS Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:Header5 ContactsPinContact Current Rating = 3 Amps.Wire Size = 0.25 mm² [AWG]Search Keywords:soft shell, input/output, IP65, DIN 40050, sealed, box to box, TRIAD1PNLMNTPLG,5W,PIN TE Connectivity 5路 通孔 直向 连接器 插头 , 公触点 T01-0570-P05-MALE REC PANEL-PCB STRAIGHT |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL 94V-2 |
电气参数
| 额定电压 | 60VAC | 供电电压 | 60 |
| 最大额定电流 | 3A | ||
机械参数
| 密封型 | 否 | 包装方式 | Tray |
| 方向 | Keyed | 端接方式 | Solder |
| 触头类型 | 公插 | 安装类型 | Through Hole |
| 连接器类型 | Plug, Male Pins | 紧固类型 | Threaded |
| 壳体材料 | CuZn | 总长度 | 22.5 |
| 包装数量 | 25 | 尺寸/外形 | .25 mm² [ 24 AWG ] |
| 端接排数 | 焊接 | 端接样式 | 插针 |
| 第一触头极性 | Male | 触点数 | 5 |
| 位数 | 5 | 外壳材料及表面处理 | Brass, Tribor Plated |
产品信息
| 类型 | Shielded Circular Subminiature | 连接器性别 | HDR |
| 产品特性 | Board Lock, Shielded | 可密封 | 是 |
| 产品子类型 | 连接器 | ||
环境参数
| 防护等级 | IP65 - Dust Tight, Water Resistant | 工作温度 | -40°C ~ 85°C |
相关型号
3-1437719-6
te connectivity / amp

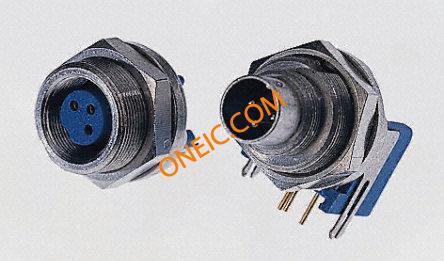

Conn Shielded Circular Subminiature SKT 5 POS Solder ST Cable Mount 5 Terminal 1 Port Shielded Circular Subminiature Connectors (TRIAD 01) CONN RCPT SKT 5POS SLD CUP STR 5 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Conn Shielded Circular Subminiature SKT 5 POS Solder ST Cable Mount 5 Terminal 1 Port Product Highlights:Connector5 ContactsSocketContact Current Rating = 3 Amps.Wire Size = 0.25 mm² [AWG]Search Keywords:soft shell, input/output, IP65, DIN 40050, sealed, box to box, 5WAYFREEPLGSKTCONTACT Connector: circular; plug; female; PIN:5; gold plated; 3A; IP65 TE Connectivity TRIAD™ 01 系列 5路 电缆安装 直向 连接器 插座 T01-0550-S05-FEMALE PLUG CONNECTOR SOLDE
T01-0540-S05
TE Connectivity

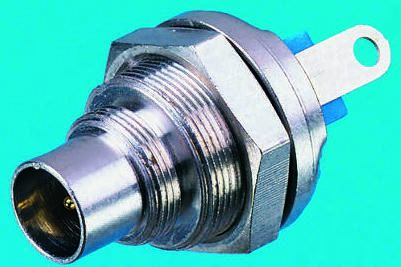

CONN RCPT HSING SKT 5POS CRIMP Conn Shielded Circular Subminiature SKT 5 POS Crimp ST Cable Mount 5 Terminal 1 Port Conn Shielded Circular Subminiature SKT 5 POS Crimp ST Cable Mount 5 Terminal 1 Port Product Highlights:Connector5 ContactsSocketContact Current Rating = 1 Amps.Wire Size = 0.14 mm² [AWG], 0.25 mm² [AWG]
