点击放大查看

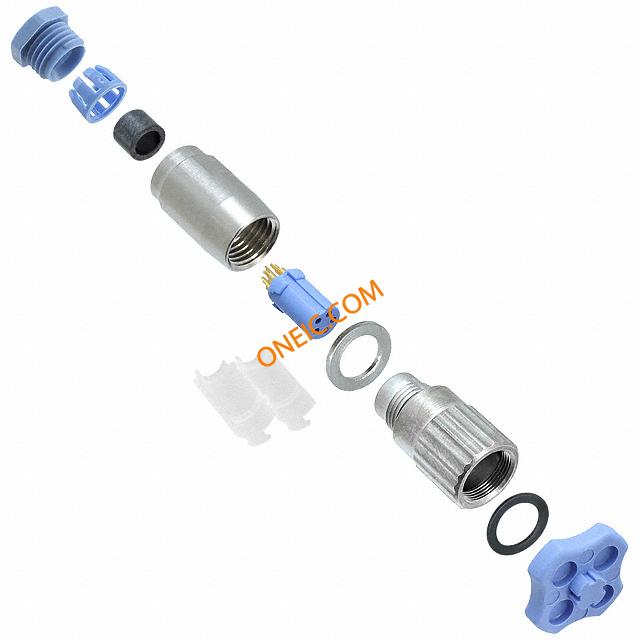

3-1437719-6
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shielded Circular Subminiature SKT 5 POS Solder ST Cable Mount 5 Terminal 1 Port Shielded Circular Subminiature Connectors (TRIAD 01) CONN RCPT SKT 5POS SLD CUP STR 5 Pole Male Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Conn Shielded Circular Subminiature SKT 5 POS Solder ST Cable Mount 5 Terminal 1 Port Product Highlights:Connector5 ContactsSocketContact Current Rating = 3 Amps.Wire Size = 0.25 mm² [AWG]Search Keywords:soft shell, input/output, IP65, DIN 40050, sealed, box to box, 5WAYFREEPLGSKTCONTACT Connector: circular; plug; female; PIN:5; gold plated; 3A; IP65 TE Connectivity TRIAD™ 01 系列 5路 电缆安装 直向 连接器 插座 T01-0550-S05-FEMALE PLUG CONNECTOR SOLDE |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 标准 | DIN 40050 |
| 抗辐射加固 | No | 材料阻燃等级 | UL 94V-2 |
电气参数
| 测试电压 | 625V | 额定电压 | 60VAC |
| 供电电压 | 60 | 连接器阻抗 | 超小型 |
| 最大额定电流 | 3A | 绝缘电阻 | 5 |
机械参数
| 密封型 | 否 | 重量 | 0.02 kg |
| 直径 | 12 mm | 包装方式 | Bulk |
| 出线方向 | No | 方向 | Keyed |
| 端接方式 | Solder | 触点形式 | 5Signal |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle, Female Sockets |
| 紧固类型 | Threaded | 安装样式 | Cable |
| 锁定特性 | threaded joint | 壳体材料 | CuZn |
| 总长度 | 38 mm | 包装数量 | 3 |
| 尺寸/外形 | .25 mm² [ 24 AWG ] | 端接排数 | 焊接 |
| 连接器 - 电缆 | plug | 端接样式 | 插座 |
| 第一触头极性 | Female | 触点数 | 5 |
| 位数 | 5 | 镀层厚度（通用） | 4µm |
| 最大电缆长度 | 0.25mm2 | 外壳材料及表面处理 | Brass, Tribor Plated |
| 触点材料 - 镀层 | gold plated | 静电放电屏蔽 | 是 |
产品信息
| SPG | 3 | 类型 | Shielded Circular Subminiature |
| 连接器性别 | PL | 系列 | TRIAD01 |
| 产品特性 | Shielded, Strain Relief | 可密封 | 是 |
| 主要用途 | Shielded, Strain Relief | 产品子类型 | 连接器 |
| 适配器系列 | TRIAD 01 | 单元数量 | 1 |
| 射频系列/标准 | 1437719 | 其他规格 | 是 |
| 输出配置 | Free Hanging (In-Line) | ||
环境参数
| 机械寿命 | 500cycles | 防护等级 | IP65 - Dust Tight, Water Resistant |
| 工作温度 | -40°C ~ 85°C | ||
