点击放大查看

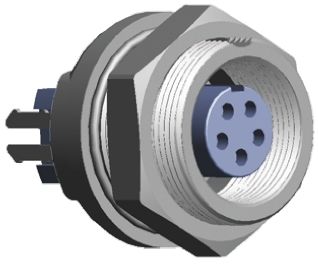

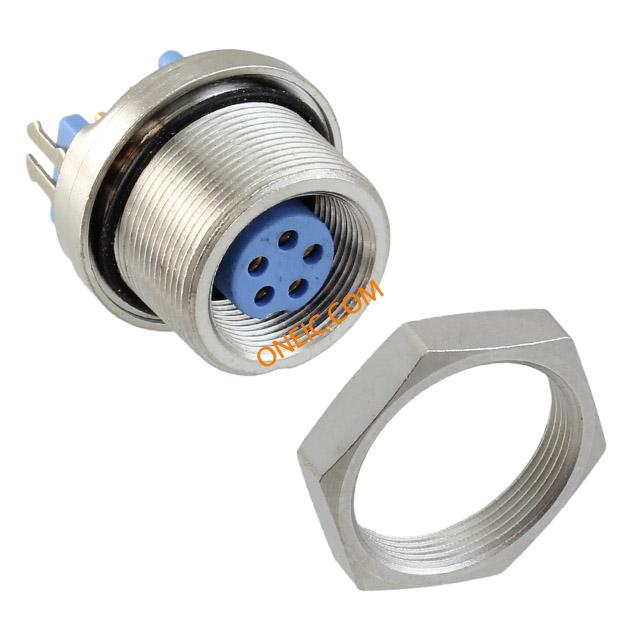

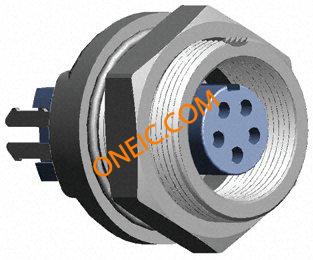

7-1437719-2
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shielded Circular Subminiature SKT 5 POS Solder ST Thru-Hole 5 Terminal 1 Port Standard Circular Connector SOCKET HDR 5P 3A PCB Shielded Circular Subminiature Connectors (TRIAD 01) CONN RCPT SKT 5POS SLD PNL MNT 5 Pole Male Straight Through Hole Industrial & Automation Circular Connector with Female Contacts Conn Shielded Circular Subminiature SKT 5 POS Solder ST Thru-Hole 5 Terminal 1 Port Product Highlights:Header5 ContactsSocketContact Current Rating = 3 Amps.Wire Size = 0.25 mm² [AWG]Search Keywords:soft shell, input/output, IP65, DIN 40050, sealed, box to box, Triad01,5w180degPCBmountsocket,3A Connector: circular; socket; female; PIN:5; gold plated; 3A; IP65 TE Connectivity TRIAD™ 01 系列 5路 通孔 直向 连接器 插座 T01-0570-S05-FEMALE REC PANEL-PCB STRT |
| 分类 |
商业参数
| 产品类别 | Standard Circular Connector | 标准包装数量 | Bulk |
| 工厂包装数量 | 25 | ||
合规参数
| RoHS | RoHS Compliant | 标准 | DIN 40050 |
| 抗辐射加固 | No | 材料阻燃等级 | UL 94V-2 |
电气参数
| 测试电压 | 625V | 额定电压 | 60VAC |
| 供电电压 | 60 | 连接器阻抗 | 超小型 |
| 最大额定电流 | 3A | ||
机械参数
| 深度 | 15 mm | 高度 | 13 mm |
| 重量 | 7.67 g | 包装方式 | Tray |
| 出线方向 | No | 方向 | Keyed |
| 外壳样式 | Receptacle | 端接方式 | Solder |
| 触点形式 | 5Signal | 触头类型 | Socket |
| 安装类型 | Through Hole | 连接器类型 | Receptacle, Female Sockets |
| 紧固类型 | Threaded | 安装样式 | Through Hole |
| 锁定特性 | threaded joint | 壳体材料 | CuZn |
| 总长度 | 15.5 | 包装数量 | 3 |
| 主要材料 | Connector | 尺寸/外形 | see |
| 端接排数 | 焊接 | 连接器 - 电缆 | socket |
| 端接样式 | 插座 | 第一触头极性 | Pin (Male) |
| 触点数 | 5 | 位数 | 5 |
| 镀层厚度（通用） | 4µm | 外壳材料及表面处理 | Brass, Tribor Plated |
| 触点材料 - 镀层 | gold plated | ||
产品信息
| SPG | 3 | 类型 | Shielded Circular Subminiature |
| 连接器性别 | HDR | 系列 | Super Seal |
| 产品特性 | Board Lock, Shielded | 可密封 | 是 |
| 主要用途 | Board Lock, Shielded | 制造商全称 | Triad01 |
| 产品子类型 | Connectors | 适配器系列 | TRIAD 01 |
| 单元数量 | 1 | 射频系列/标准 | 1437719 |
| 输出配置 | Panel Mount, Bulkhead; Through Hole | ||
环境参数
| 机械寿命 | 500cycles | 防护等级 | IP65 - Dust Tight, Water Resistant |
| 工作温度 | -40°C ~ 85°C | ||
