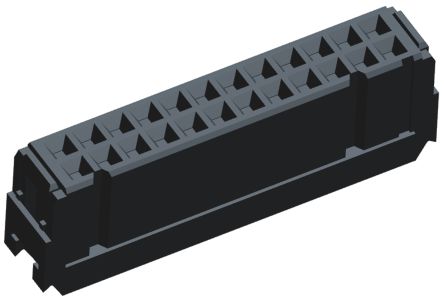

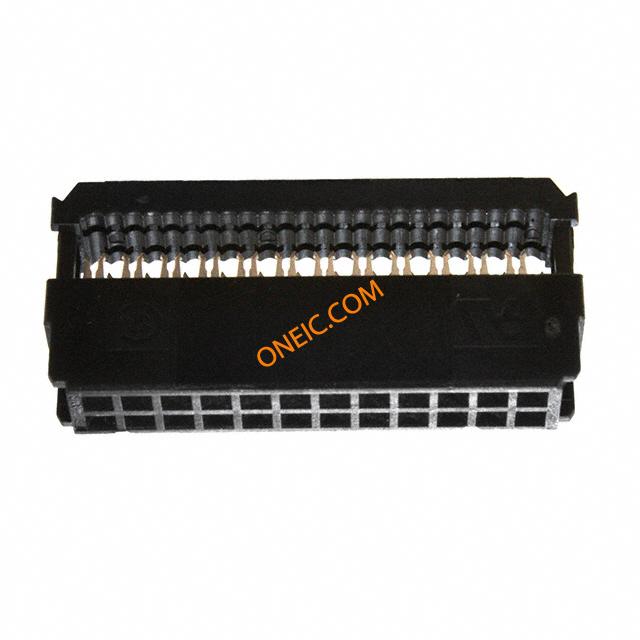

1658623-5

点击放大查看

1658623-5

制造商
TE Connectivity Ltd.
描述Conn IDC Connector RCP 24 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 24POS GOLD Headers & Wire Housings .1CL IDC REC 2X12P MIL 30AU Conn IDC Connector RCP 24 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:PreloadedConnector Type = NOVOHousing Gender = Receptacle24 PositionsReceptacleSearch Keywords:input/output, paddleboard, paddle board 24 Position 2.54 mm Pitch Wire to Board Receptacle Assembly TE Connectivity AMP-LATCH Novo 系列 2行 24路 2.54mm节距 母 IDC 连接器 , 电缆安装 24 NOVO MIL 30DP, LEAD FREE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量1

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR 7189标准编号CSA, UL
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

额定电压250 V 交流供电电压250
输入电阻5000连接器阻抗刺破式压接 (IDC)
最大额定电流1A连接器类型 - 电压输入音叉

机械参数

颜色Black间距2.54 mm
宽度6.1 mm [ .2402 in ]高度15.16 mm [ .5968 in ]
长度35.05 mm [ 1.3799 in ]底座类型不带
包装方式Bulk导线类型Ribbon Cable
壳体颜色黑色出线方向Without
电缆类型Ribbon Cable导线线规26-28 AWG
方向直排间距0.100" (2.54mm)
端接方式IDT触点形式Female Socket
触头类型Female Socket引脚间距0.100" (2.54mm)
极化Military第二连接器Without
外壳颜色Black安装类型No
电缆端类型Without连接器类型NOVO
接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel法兰特征否
安装样式Cable排数2
驱动力不带插入件材料磷青铜
触头材料Phosphor Bronze壳体材料Thermoplastic
安装特性Without包装数量60
面板安装类型通孔 - 焊接尺寸/外形.08 – .15 mm², 158 – 296 CMA, 28 – 26 美国线规
端接排数IDC电缆端接方式IDC
端接样式IDC第一连接器类型插针接头
第一触头极性Socket (Female)配接方向With
触点数24绝缘材料 - 类型.787 – .94 mm [ .031 – .037 in ]
位数24触头长度-柱信号（数据）
安装孔直径带有中心触点材料2.54 x 2.54 [.100 x .100]
接触件表面处理 - 配合锡接触镀层厚度30µin (0.76µm)

产品信息

备注Receptacle can be used in applications requiring non-polarization, as well as m类型IDC Connector
连接器性别RCP系列AMP-LATCH NOVO
产品特性Feed Through极性带有
主要用途Feed Through产品子类型Receptacles / Sockets - Housings
连接类型Ribbon Cable带调制解调器控制Yes
DigiKey可编程不带输出配置Free Hanging (In-Line)
应用细节Wire-to-Board

环境参数

工作温度+105°C

文档与媒体

PDF 文档
1599153.pdf

相关型号

1658694-9

1658694-9

te connectivity / amp

Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 24POS .100 GOLD Headers & Wire Housings 24P UNIV HDR ACT PIN Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 24P ACT PIN

¥15.9120
详情
1-5103308-3

1-5103308-3

te connectivity / amp

Conn Shrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 24POS GOLD AMP-LATCH IDC Header Vertical 24P Headers & Wire Housings HDR 24 POS VERT BLK LOW PRO Conn Shrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 24POS, 2.54MM AMPLATCH,Header-Pin,4sided,1A,24P,Vertical,Black A/L LOW PRO HDR 24P VERT BLACK

¥6.7238
详情
5104338-5

5104338-5

te connectivity / amp

Conn Shrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 100X100 HDR 2X012P VERT LOW PROFILE Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 24POS GOLD Conn Shrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 24POS, 2.54MM HEADER,PIN,AMP-LATCH,24POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB TE Connectivity AMP-LATCH 系列 2.54mm节距 24路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 24P VERT HT

¥10.8800
详情

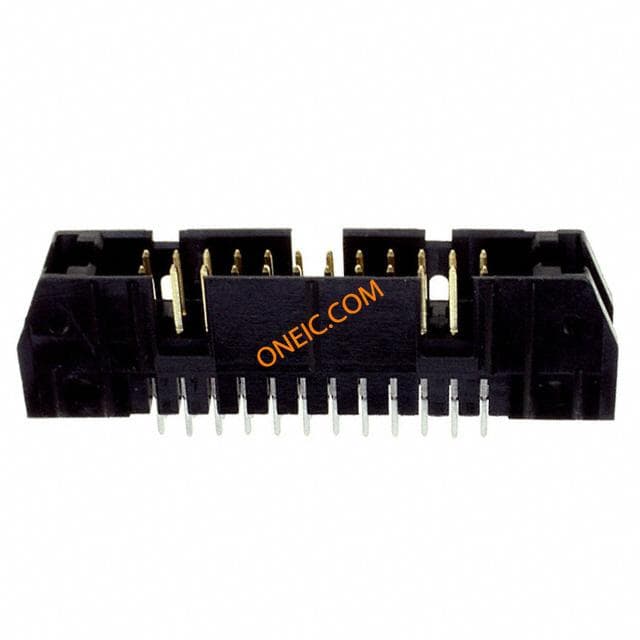

5102156-5

5102156-5

te connectivity / amp

Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 24POS .100 GOLD Headers & Wire Housings 100X100 2X012P VRT Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 24路 (2排) 垂直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 24P VERT

¥8.3640
详情
5102160-5

5102160-5

te connectivity / amp

Conn Ejector Header HDR 24 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 24POS .100 GOLD Headers & Wire Housings 24 POS HDR 30AU R/A W/OUT LATCHES Conn Ejector Header HDR 24 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE TO BOARD CONNECTOR, HEADER, 24POS, 2ROW 024UNIVHDRRA4S30DPSTD TE Connectivity AMP-LATCH 系列 2.54mm节距 24路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 24P RA

¥10.3360
详情

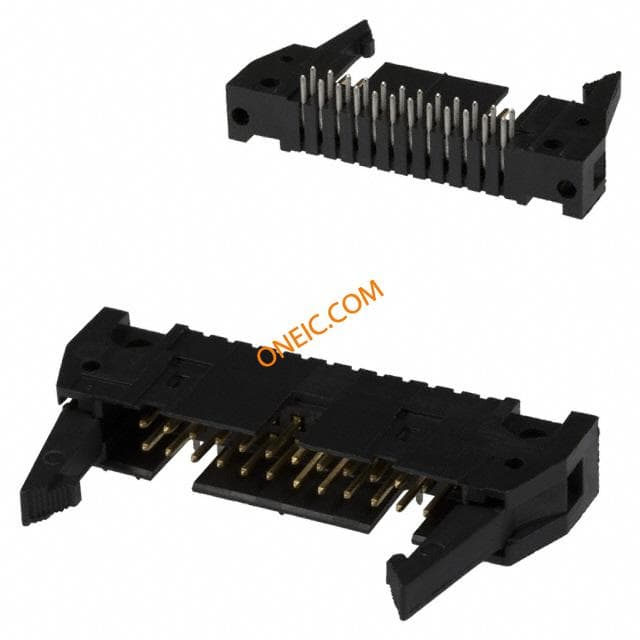

5499786-5

5499786-5

te connectivity / amp

Conn Ejector Header HDR 24 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 24POS .100 GOLD Headers & Wire Housings 24 POS HDR R/A 15 AU Conn Ejector Header HDR 24 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 24POS, 2.54MM A/L UNIV HDR 24P RA LG LAT

¥16.7280
详情

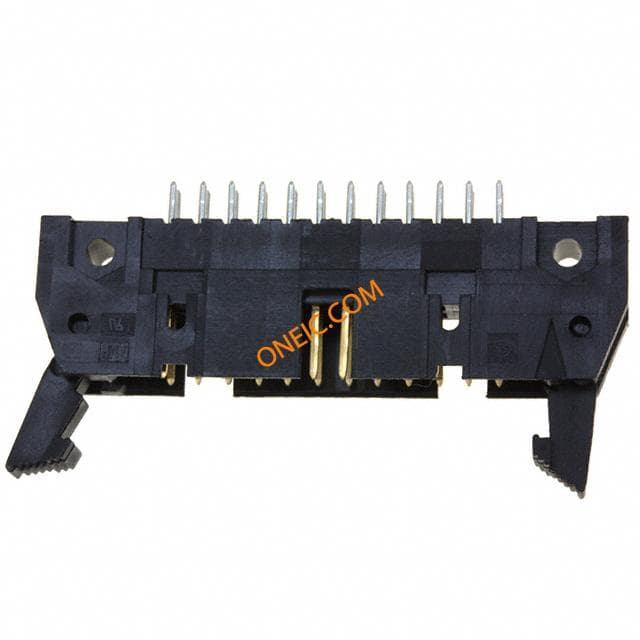

5499374-5

5499374-5

te connectivity / amp

Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 24POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X012P VERT LOW PRO W/EJECT Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/LUNIVHDR24PVERTSHTLAT A/L UNIV HDR 24P VERT SHT LAT

¥15.0960
详情

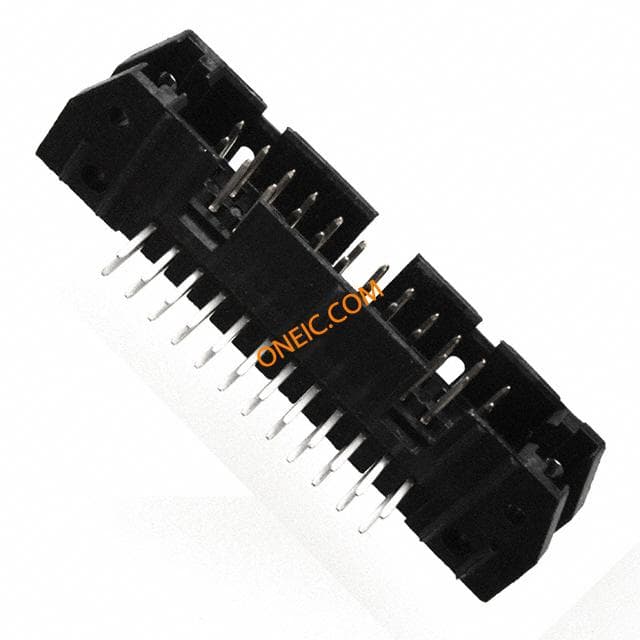

5102161-5

5102161-5

te connectivity / amp

Conn Ejector Header HDR 24 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 24POS .100 GOLD Headers & Wire Housings A/L UNIV HDR 24P RA Conn Ejector Header HDR 24 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 24P RA

¥12.4440
详情
1658620-5

1658620-5

te connectivity / amp

Conn IDC Connector F 24 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 24POS 15 GOLD Headers & Wire Housings MLTRY PLRZD RECPT 24 NOVO Conn IDC Connector F 24 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 24ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 24POS, 2.54MM CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,24POSITION,WITHMATINGPOLARIZATION TE Connectivity AMP-LATCH Novo 系列 2行 24路 2.54mm节距 母 IDC 连接器 , 电缆安装 24 NOVO MIL 15DP, LEAD FREE

¥6.1635
详情
1-111446-9

1-111446-9

te connectivity / amp

Conn IDC Connector PL 24 POS 2.54mm IDT RA Cable Mount Bulk Headers & Wire Housings IDC PIN 24 POS 30 AU NO LATCH CONN IDC PIN 24POS 30AU NO LATCH 024 UNIV I/O 30DP NO EARS

¥30.5864
详情

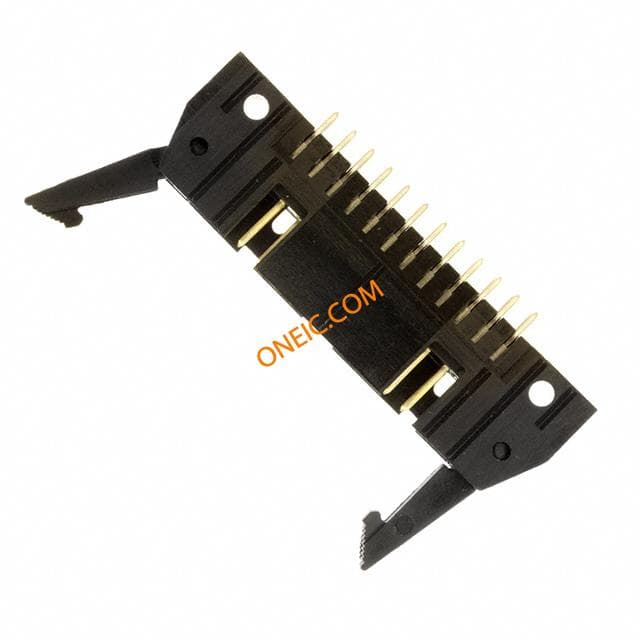

5499922-5

5499922-5

te connectivity / amp

Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 24POS .100 15AU Headers & Wire Housings 24 POS HDR 15AU W/LONG LATCHES Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 24POS, 2.54MM HEADER,UNIVERSALEJECTIONPIN,AMP-LATCH,24POS,2.54X2.54,PCB,VERTICAL TE Connectivity AMP-LATCH 系列 2.54mm节距 24路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 24P VERT LG LAT

¥11.0160
详情
5102154-5

5102154-5

te connectivity / amp

Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 24POS .100 GOLD Headers & Wire Housings 24 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 024UNIVHDRSP4S30DPSTD A/L UNIV HDR 24P VERT

¥9.0600
详情
5102321-5

5102321-5

te connectivity / amp

Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 24POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X012P VRT EJE Pin and Pinless Headers (AMP-LATCH) Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 24POS, 2.54MM A/L UNIV HDR 24P VERT LG LAT

¥14.6200
详情

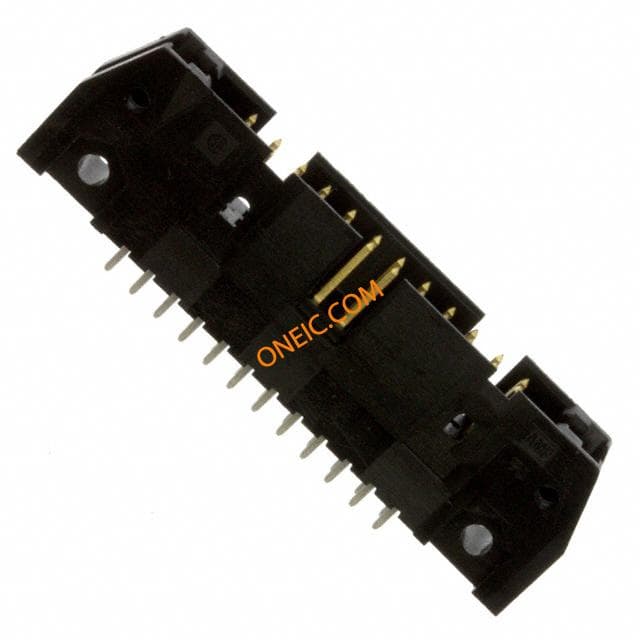

5102153-5

5102153-5

te connectivity / amp

Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 24POS .100 GOLD Headers & Wire Housings 24 POS HDR 15AU W/OUT LATCHES Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 24P VERT

¥7.1400
详情

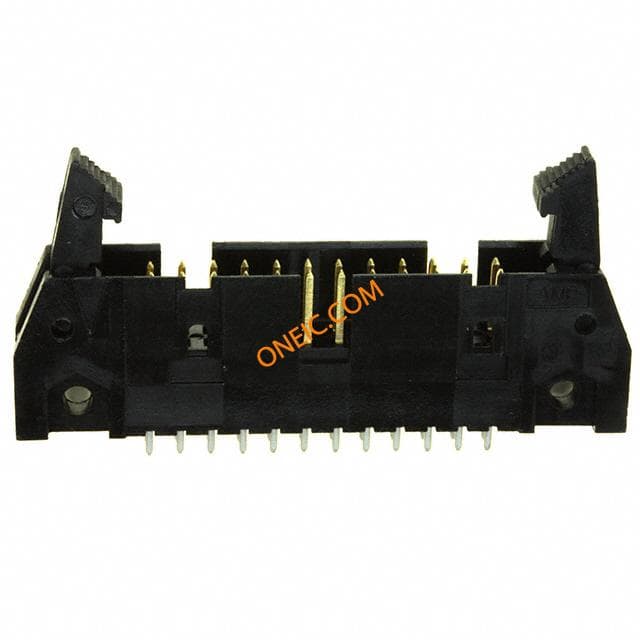

5499910-5

5499910-5

te connectivity / amp

Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 24POS .100 GOLD Headers & Wire Housings 24 POS HDR 15AU W/SHORT LATCHES Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 24POS, 2.54MM A-LUNIVHDRAYW/LTH,A/LUNIVHDR24PVERTSHTLAT TE Connectivity AMP-LATCH 系列 2.54mm节距 24路 (2排) 直 PCB 针座, 焊接端接 , 通孔 A/L UNIV HDR 24P VERT SHT LAT

¥13.6680
详情

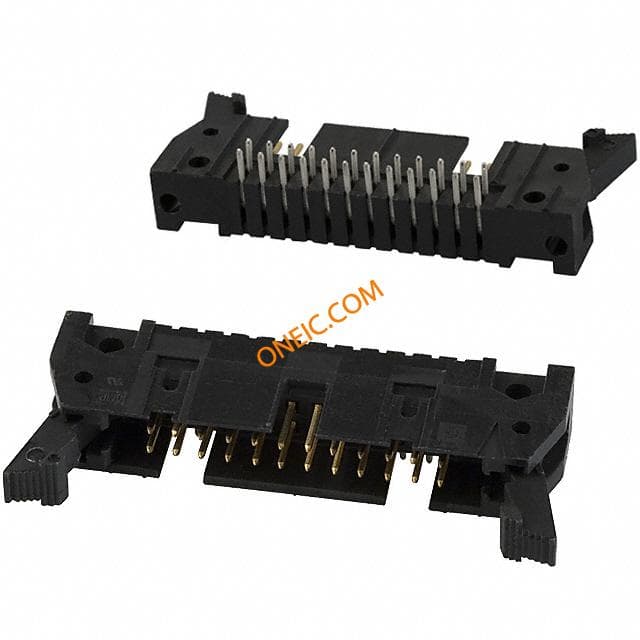

5499913-5

5499913-5

te connectivity / amp

Conn Ejector Header HDR 24 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 24POS .100 GOLD Headers & Wire Housings 24 POS HDR 15AU R/A W/SHORT LATCHES Conn Ejector Header HDR 24 POS 2.54mm Solder RA Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE TO BOARD CONNECTOR, HEADER, 24POS, 2ROW A/L UNIV HDR 24P RA SHT LAT

¥16.9320
详情
499712-1

499712-1

te connectivity / amp

Connector Accessories Keying Plug Thermoplastic Black Accessories (AMP-LATCH) CONN KEYING PLUG BLACK Keying plug AmpLatch Headers & Wire Housings KEY PLUG NOVO RECP Connector Accessories Keying Plug Thermoplastic Black Product Highlights:Keying PlugKeying Plug Type = Receptacle Keying PlugSearch Keywords:input/output, paddleboard, paddle board Accessory,CableConnector;ReceptacleKeyingPlug;Thermoplastic;UL94V-0 KEYING PLUG,NOVO RCPT

¥0.3148
详情

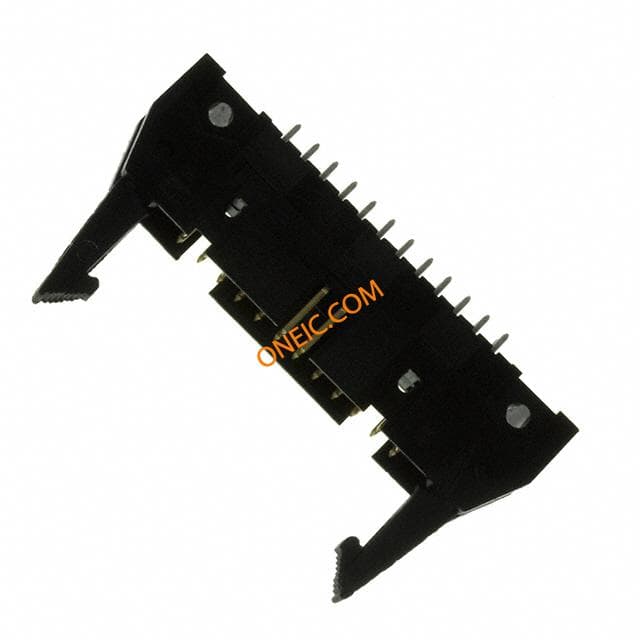

5499206-5
