5102154-5

点击放大查看

5102154-5

制造商
TE Connectivity Ltd.

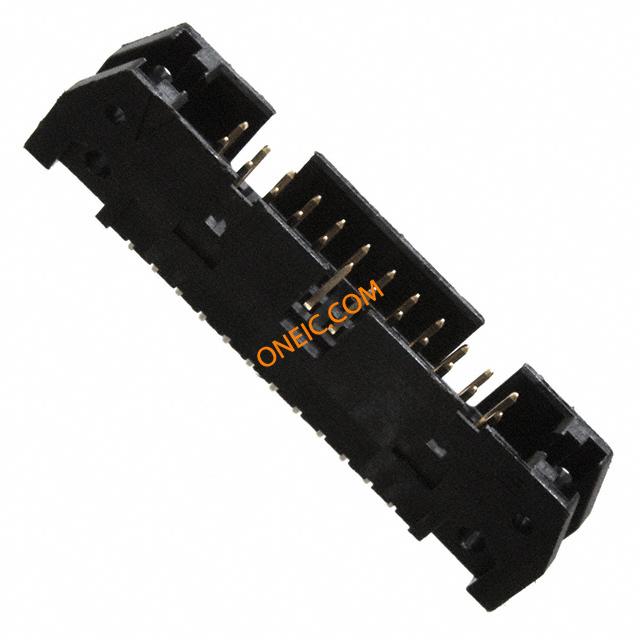

描述Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 24POS .100 GOLD Headers & Wire Housings 24 POS HDR 30AU W/OUT LATCHES Conn Ejector Header HDR 24 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, 024UNIVHDRSP4S30DPSTD A/L UNIV HDR 24P VERT
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Trays工厂包装数量720

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

供电电压250输入电阻1000 – 5000
连接器阻抗弹出锁闩最大额定电流1/Contact A
最小供电电压250VAC

机械参数

颜色Black深度8.53 mm
间距2.54 mm高度13.94 mm
长度49.78 mm [ 1.96 in ]底座类型不带
包装方式Bulk遮蔽类型Yes
壳体颜色黑色端部尺寸（如SMD/SMT、14mm等）3.81 mm [ .15 in ]
引脚样式直角排间距0.100" (2.54mm)
端接方式Solder触头类型Male Pin
极化Center, Dual Polarizing Bar, Military第二连接器Without
触点形状Square外壳颜色Black
安装类型Vertical连接器类型Universal Ejection Pin Headers
接触镀层Gold Over Palladium Nickel|Gold Over Nickel安装样式Through Hole
排数2封装形式4-Sided
外壳材料（壳体）4 面驱动力不带
电路板厚度1.57 [0.062]插入件材料磷青铜
外形（宽 x 高）Standard壳体材料Thermoplastic
总长度49.78 mm包装数量70
面板安装类型通孔尺寸/外形0.64 [.025]
端接样式Through Hole第一触头极性Pin (Male)
外径.64 mm [ .025 in ]配接方向With
触点数24位数24
兼容外壳尺寸（如TM-700等）AMP 锁闩母端触头长度-柱信号（数据）
安装孔直径带有中心触点材料2.54 x 2.54 [.100 x .100]
接触件表面处理 - 配合锡接触长度 - 配合0.240" (6.10mm)
端子柱长度2.79 [0.110]接触镀层厚度30µin (0.76µm)

产品信息

类型Ejector Header连接器性别HDR
系列AMP-LATCH极性带有
产品子类型Headers其他规格Without
加载位置数All

环境参数

温度额定值Standard工作温度-65C to 105C
封装热阻1.57 mm [ .062 in ]

文档与媒体

在线文档
5102154-5
在线文档
5102154-5
