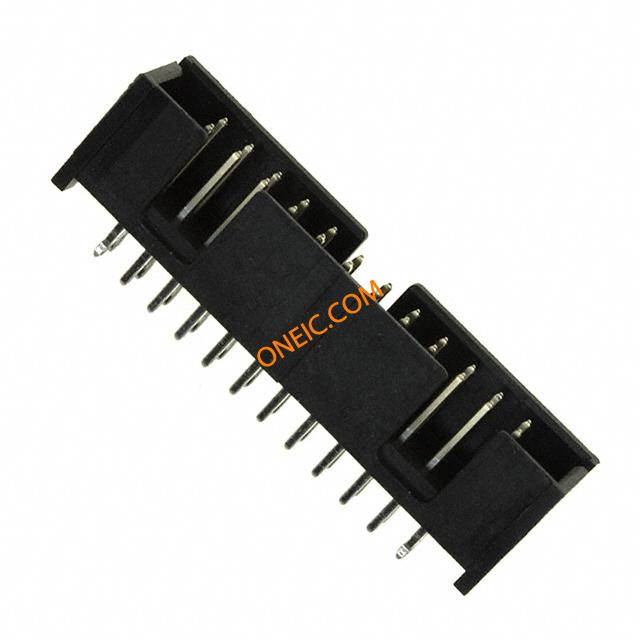

点击放大查看
5104338-5
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Shrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 100X100 HDR 2X012P VERT LOW PROFILE Pin and Pinless Headers (AMP-LATCH) CONN HEADER LOPRO STR 24POS GOLD Conn Shrouded Header HDR 24 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Pin HeadersLow ProfileNumber of Positions = 242.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 24POS, 2.54MM HEADER,PIN,AMP-LATCH,24POS,2.54X2.54,VERTICAL,LOWPROFILE,PCB TE Connectivity AMP-LATCH 系列 2.54mm节距 24路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L LOW PRO HDR 24P VERT HT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Rail / Tube | 工厂包装数量 | 65 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 最大额定电流 | 1 A | 绝缘电阻 | 5000 MOhms |
机械参数
| 颜色 | Gray | 深度 | 9.14 mm |
| 间距 | 2.54 mm | 高度 | 9.86 mm |
| 重量 | 0.01 | 包装方式 | Tube |
| 排间距 | 0.100" (2.54mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Vertical | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Palladium Nickel Over Nickel|Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 38.1 mm |
| 主要材料 | InterconnectSystem | 端接样式 | Solder Pin |
| 第一触头极性 | Pin (Male) | 触点数 | 24 |
| 接触件端接 | :Through Hole Vertical | 位数 | 24 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 端子柱长度 | 3.05 mm |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 制造商全称 | AMP-LATCH |
| 产品子类型 | Headers - Shrouded | 加载位置数 | All |
环境参数
| 工作温度 | - 65 C to + 105 C | ||
