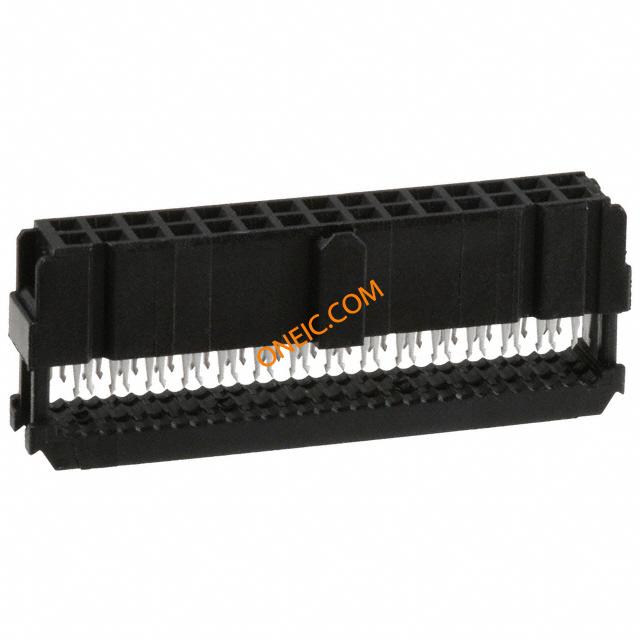

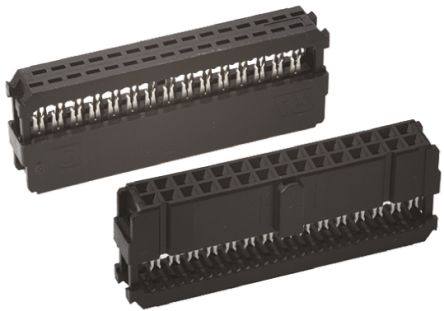

1658621-7

制造商	TE Connectivity Ltd.
描述	Conn IDC Connector F 30 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SKT 30POS W/POL 15 GOLD AMP-Latch receptacle,0.08-0.15mm²,30way Conn IDC Connector F 30 POS 2.54mm IDT RA Cable Mount Product Highlights:Connector Type = NOVONumber of Positions = 30ReceptacleMating Polarization Method = Center & MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board 30NOVOMIL/CTR15DP,LEADFREE TE Connectivity AMP-LATCH Novo 系列 2行 30路 2.54mm节距直角母 IDC 连接器 , 电缆安装 30 NOVO MIL/CTR 15DP,LEAD FREE
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

Bulk

合规参数

RoHS	Lead free / RoHS Compliant	UL等级	获得认可
无铅定义	Not relevant for lead free process	UL档案号	E28476
CSA档案号	LR 7189	标准编号	CSA, UL
RoHS/ELV合规状态	RoHS compliant, ELV compliant	材料阻燃等级	UL 94V-0

电气参数

额定电压	250	供电电压	250
输入电阻	5000	连接器阻抗	刺破式压接 (IDC)
最大额定电流	1A	最小供电电压	250VAC
连接器类型 - 电压输入	音叉

机械参数

颜色	Black	深度	7.49 mm
间距	2.54 mm	宽度	7.49 mm [ .2949 in ]
高度	15.97 mm	长度	42.67 mm [ 1.6799 in ]
底座类型	不带	包装方式	Tube
导线类型	Ribbon Cable	壳体颜色	黑色
出线方向	Without	电缆类型	带状电缆
导线线规	26-28 AWG	方向	直角
排间距	0.100" (2.54mm)	端接方式	IDT
触头类型	Female Socket	极化	Center & Military
第二连接器	Without	外壳颜色	Black
安装类型	No	电缆端类型	Without
连接器类型	NOVO	接触镀层	Gold Over Nickel
法兰特征	否	安装样式	Cable
排数	2	驱动力	不带
插入件材料	磷青铜	触头材料	Phosphor Bronze
壳体材料	Thermoplastic	总长度	42.67 mm
安装特性	Without	包装数量	50
面板安装类型	通孔 - 焊接	主要材料	InterconnectSystem
尺寸/外形	.08 – .15 mm², 158 – 296 CMA, 28 – 26 美国线规	端接排数	IDC
电缆端接方式	IDC	插针孔直径	0.1"
端接样式	插座	第一连接器类型	插针接头
配接方向	With	触点数	30
绝缘材料 - 类型	.787 – .94 mm [ .031 – .037 in ]	位数	30
触头长度-柱	信号（数据）	安装孔直径	带有
中心触点材料	2.54 x 2.54 [.100 x .100]	接触件表面处理 - 配合	锡
接触镀层厚度	15µin (0.38µm)

产品信息

类型	IDC Connector	连接器性别	F
系列	AMP-LATCH Novo	产品特性	Feed Through, Polarizing Key
极性	带有	制造商全称	AMP-Latch
产品子类型	连接器	连接类型	Ribbon Cable
带调制解调器控制	Yes	DigiKey可编程	不带

环境参数

工作温度

+105°C
