5499913-7

点击放大查看

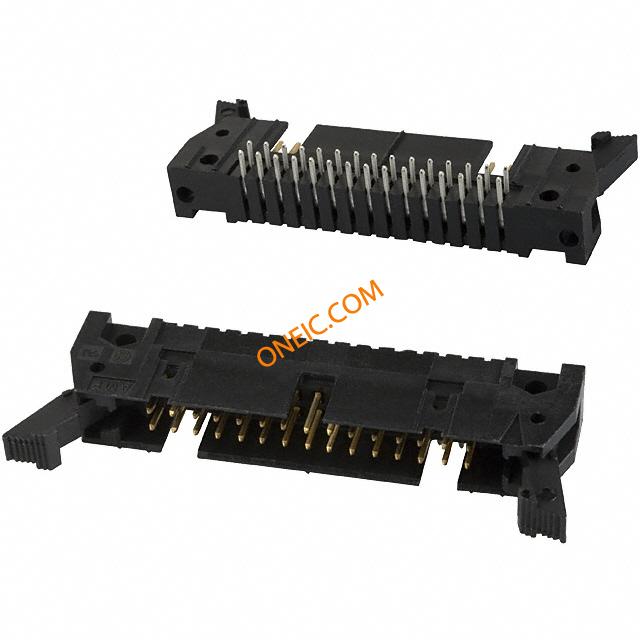

5499913-7

制造商
TE Connectivity Ltd.
描述Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 30POS .100 GOLD Headers & Wire Housings A/L UNIV HDR 30P RA SHT LAT Pin and Pinless Headers (AMP-LATCH) Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 302.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 30P RA SHT LAT
分类
连接器解决方案板对板连接器带罩排针连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH标准包装规格40
产品类别Headers & Wire Housings标准包装数量Bulk
工厂包装数量360

合规参数

RoHSLead free / RoHS Compliant无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c
RoHS/ELV合规状态RoHS compliant, ELV compliant材料阻燃等级UL 94V-0

电气参数

开关功能Ejection供电电压250
输入电阻5000连接器阻抗锁闩, 锁闩
最大额定电流1

机械参数

颜色Black间距2.54 mm
高度13.94 mm [ .549 in ]底座类型不带
包装方式Bulk遮蔽类型Yes
壳体颜色黑色端部尺寸（如SMD/SMT、14mm等）3.81 mm [ .15 in ]
引脚样式直角排间距0.100" (2.54mm)
端接方式Solder触头类型Male Pin
柱间距2.54 x 2.54 [.100 x .100]极化Center, Dual Polarizing Bar, Military
第二连接器With触点形状Square
外壳颜色Black安装类型Right Angle
连接器类型Universal Ejection Pin Headers接触镀层Gold Over Palladium Nickel|Gold Over Nickel
紧固类型Latch, Short/Eject Hooks安装样式标准
排数2封装形式4-Sided
外壳材料（壳体）4 面驱动力带有
电路板厚度1.57 [0.062]插入件材料黄铜
锁定特性Latch外形（宽 x 高）Standard
壳体材料Thermoplastic总长度2.26
安装特性安装耳包装数量24
面板安装类型通孔尺寸/外形0.64 [.025]
端接样式Through Hole第一触头极性Pin (Male)
外径.64 mm [ .025 in ]配接方向With
触点数30位数30
触头长度-柱信号（数据）安装孔直径带有
接触件表面处理 - 配合锡接触长度 - 配合0.240" (6.10mm)
端子柱长度2.79 [0.110]接触镀层厚度15µin (0.38µm)

产品信息

类型Ejector Header连接器性别HDR
系列AMP-LATCH极性带有
产品子类型Headers其他规格With
加载位置数All

环境参数

温度额定值Standard工作温度标准
封装热阻1.57 mm [ .062 in ]
