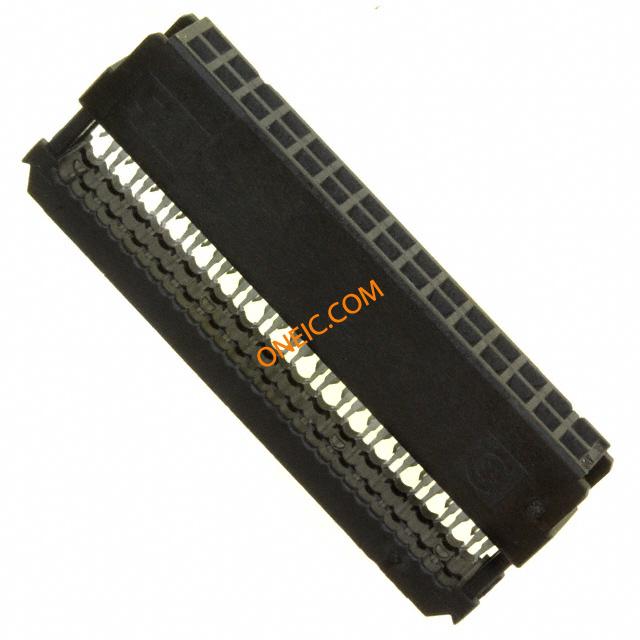

1658620-7

点击放大查看

1658620-7

制造商
TE Connectivity Ltd.
描述Conn IDC Connector F 30 POS 2.54mm IDT RA Cable Mount Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 30POS 15 GOLD Headers & Wire Housings MLTRY PLRZD RECPT 30 NOVO Conn IDC Connector F 30 POS 2.54mm IDT RA Cable Mount Search Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 30POS, 2.54MM CONNECTOR,RECEPTACLE,NOVA,AMP-LATCH,30POSITION,WITHMATINGPOLARIZATION 30 NOVO MIL 15DP, LEAD FREE
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

商标名AMP-LATCH产品类别Headers & Wire Housings
标准包装数量Rail / Tube工厂包装数量1

合规参数

RoHSLead free / RoHS Compliant海关税号85366910
无铅定义Not relevant for lead free processRoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-0

电气参数

量程（°/s）:TE - AMP-LATCH Novo Series

机械参数

颜色Black间距2.54 mm
重量0.004包装方式Tube
导线类型Ribbon Cable出线方向Without
导线线规26-28 AWG排间距0.100" (2.54mm)
端接方式IDT触头类型Female Socket
极化Military第二连接器Without
外壳颜色Black安装类型No
电缆端类型Without连接器类型NOVO
接触镀层Gold Over Palladium Nickel Over Nickel|Gold Over Nickel安装样式Cable
排数2触头材料Phosphor Bronze
壳体材料Thermoplastic安装特性Without
主要材料InterconnectSystem电缆端接方式IDC
端接样式IDC第一触头极性Socket (Female)
配接方向With触点数30
接触件端接:IDC / IDT位数30
中心触点材料2.54 x 2.54 [.100 x .100]接触镀层厚度15µin (0.38µm)

产品信息

备注Receptacle can be used in applications requiring non-polarization, as well as m类型IDC Connector
连接器性别F系列AMP-LATCH NOVO
产品特性Feed Through制造商全称AMP-LATCH
产品子类型Receptacles / Sockets - Housings连接类型Ribbon Cable
带调制解调器控制Yes应用细节Wire-to-Board

文档与媒体

PDF 文档
1599153.pdf
在线文档
1658620-7?RQPN=1658620-7

相关型号

1658623-7

1658623-7

te connectivity / amp

Conn IDC Connector RCP 30 POS 2.54mm IDT RA Cable Mount Tube Ribbon Cable Connectors (AMP-LATCH) CONN IDC SOCKET 30POS GOLD Headers & Wire Housings .1CL IDC REC 2X15P MIL 30AU Conn IDC Connector RCP 30 POS 2.54mm IDT RA Cable Mount Tube Product Highlights:Connector Type = NOVONumber of Positions = 30ReceptacleMating Polarization Method = MilitaryWith Mating PolarizationSearch Keywords:input/output, paddleboard, paddle board WIRE-BOARD CONNECTOR RECEPTACLE 30POS, 2.54MM 30 NOVO MIL 30DP, LEAD FREE

¥7.4800
详情
5102321-7

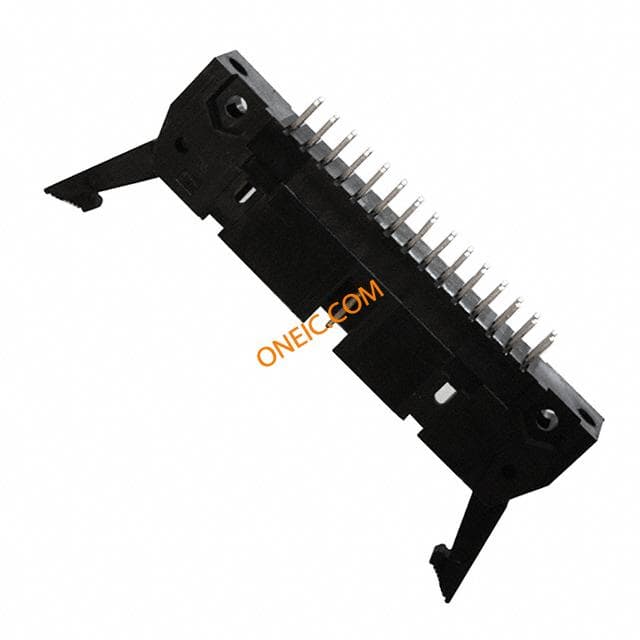

5102321-7

te connectivity / amp

Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 30POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X015P VRT EJE Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 30P VERT LG LAT

¥22.6100
详情
5499923-7

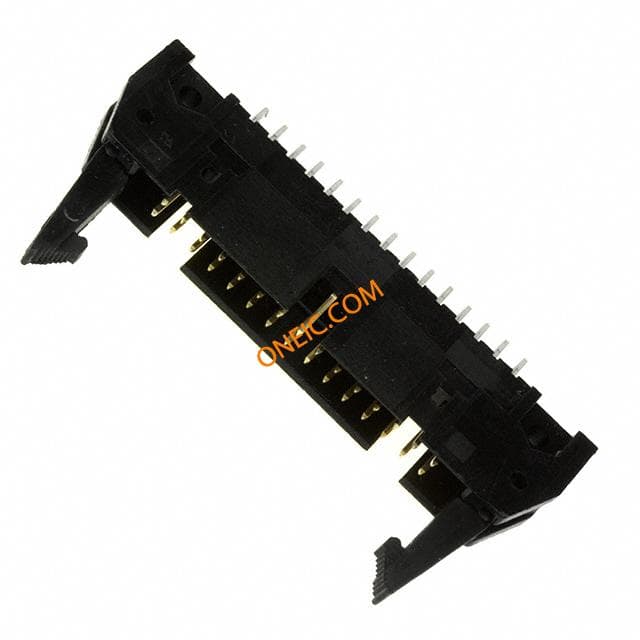

5499923-7

te connectivity / amp

Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 30POS .100 GOLD AMPLATCH HEADER-PIN,4 SIDED,VERTICAL Headers & Wire Housings A/L UNIV HDR 30P VERT LG LAT Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 302.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 30POS, 2.54MM AMPLATCHHEADER-PIN,4SIDED,VERTICAL,30P A/L UNIV HDR 30P VERT LG LAT

¥18.1200
详情
5102159-7

5102159-7

te connectivity / amp

Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 30POS .100 GOLD Headers & Wire Housings UNIV HDR 30P R/A Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 302.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, TE Connectivity AMP-LATCH 系列 2.54mm节距 30路 (2排) 直角 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 30P RA

¥8.9760
详情
1-1658694-0

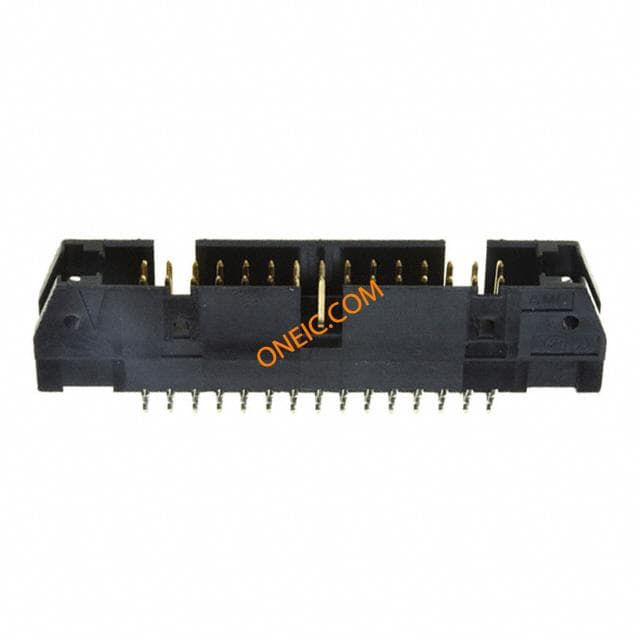

1-1658694-0

te connectivity / amp

Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 30POS .100 GOLD Headers & Wire Housings 30P UNIV HDR ACT PIN 1-1658694-0 Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 30P ACT PIN

¥15.9120
详情
5102162-7

5102162-7

te connectivity / amp

Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 30POS .100 GOLD Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 30P RA

¥14.3480
详情
2-111446-2

2-111446-2

te connectivity / amp

Conn IDC Connector PL 34 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 34POS 30AU NO LATCH Headers & Wire Housings 034 UNIV I/O 30DP NO EARS Conn IDC Connector PL 34 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:Connector Type = Universal I/ONumber of Positions = 34PlugWithout Mating PolarizationTerminate To Ribbon CableSearch Keywords:input/output, paddleboard, paddle board HEADER, IDC, NO LATCH, 34WAY 034 UNIV I/O 30DP NO EARS

¥36.2400
详情
1-499252-2

1-499252-2

te connectivity / amp

Connector Accessories 30 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Accessories (AMP-LATCH) STRAIN RELIEF 30POS SOCKET CONN AMP-Latch Strain Relief,14.76mm height Headers & Wire Housings STRAIN RELIEF 30POS Connector Accessories 30 POS Receptacle Flat Cable Connector Strain Relief Thermoplastic Black Product Highlights:Strain ReliefNumber of Positions = 30Search Keywords:input/output, paddleboard, paddle board 030STRAINRELIEFA-LRCPT TE Connectivity 30路 应力释放支架, 使用于 AMPLATCH Novo 系列 带状电缆 030 STRAIN RELIEF A-L RCPT

¥0.8684
详情
5499206-7

5499206-7

te connectivity / amp

Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Headers & Wire Housings 100X100 HDR 2X015P VRT EJE Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 30POS .100 GOLD Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Product Highlights:PreloadedConnector Style = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard ProfileSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 30POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 30路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 30P VERT LG LAT

¥19.1080
详情
2-5102321-7

2-5102321-7

TE Connectivity / AMP

Headers & Wire Housings UNIV HDR 30P VT BLU LARGE LATCH Pin and Pinless Headers (AMP-LATCH) CONN HEADER 30POS VERT GOLD A/L UNIV HDR 30P VERT LG LAT BLUE

¥18.1084
详情
暂无图片

111446-7

TE Connectivity / AMP

Headers & Wire Housings 030 UNIV I/O 30DP NO EARS CONN IDC PIN 30POS 30AU NO LATCH

详情
2-111446-1

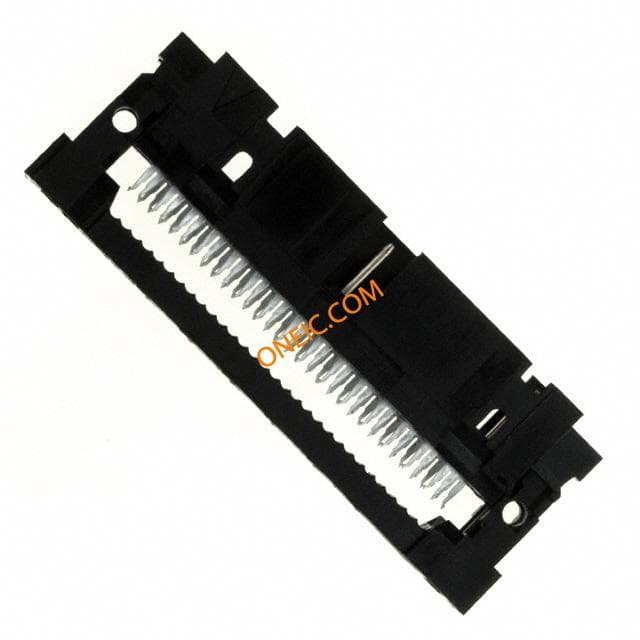

2-111446-1

te connectivity / amp

Conn IDC Connector PL 30 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 30POS 30AU NO LATCH Conn IDC Connector PL 30 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:PreloadedType of Connector = Universal I/OHousing Gender = Plug30 PositionsPlugSearch Keywords:input/output, paddleboard, paddle board 030 UNIV I/O 30DP NO EARS

¥26.1120
详情
5499910-7

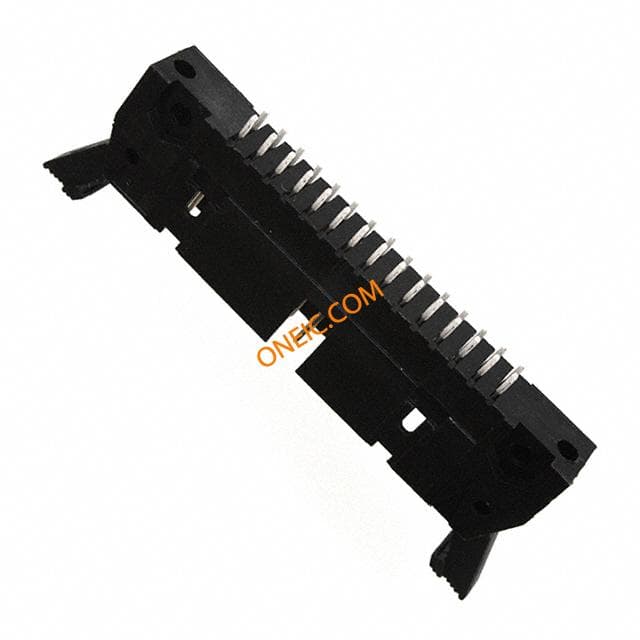

5499910-7

te connectivity / amp

Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 30POS .100 GOLD Headers & Wire Housings 30P UNIV HDR VERT SHT LAT Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Header - PinHeader Type = Universal Ejection Pin HeadersAMP-LATCH Product LineStandard Profile30 PositionsSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 30POS, 2.54MM TE Connectivity AMP-LATCH 系列 2.54mm节距 30路 (2排) 直 PCB 针座, 焊接端接, 1A , 通孔 A/L UNIV HDR 30P VERT SHT LAT

¥17.6800
详情
5499913-7

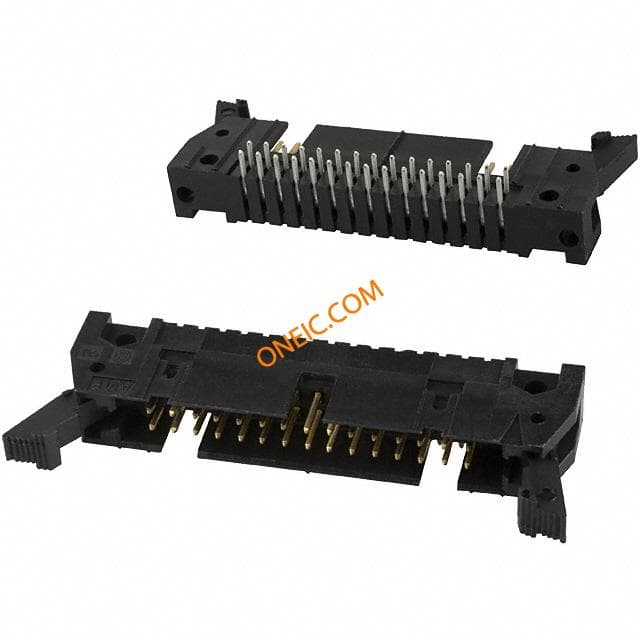

5499913-7

te connectivity / amp

Conn Ejector Header HDR 30 POS 2.54mm Solder RA Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER RT/A 30POS .100 GOLD Headers & Wire Housings A/L UNIV HDR 30P RA SHT LAT Pin and Pinless Headers (AMP-LATCH) Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 302.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = Right AngleSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 30P RA SHT LAT

¥28.9000
详情
5102153-7

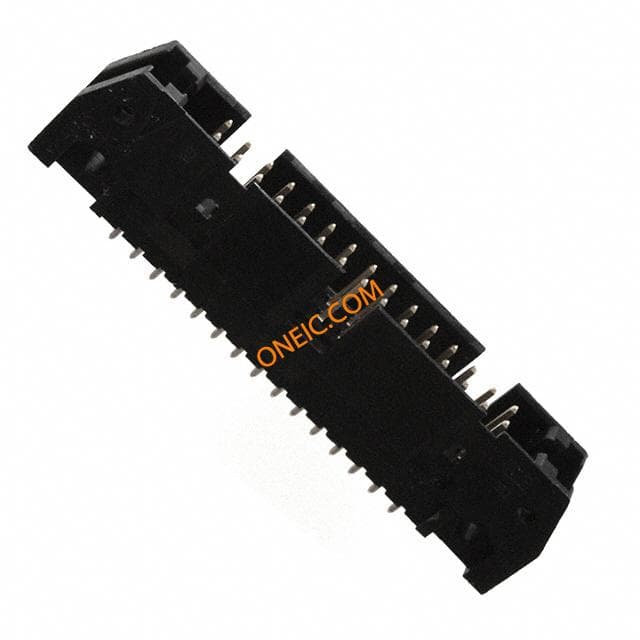

5102153-7

te connectivity / amp

Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 30POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X015P VRT Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 302.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, CONNECTOR, HEADER, LATCH, 2.54MM, 30WAY A/L UNIV HDR 30P VERT

¥8.9760
详情
5102154-7

5102154-7

te connectivity / amp

Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 30POS .100 GOLD Headers & Wire Housings 100X100 HDR 2X015P VRT Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Search Keywords:ribbon cable connector system, input/output, LATCH Universal Header, A/L UNIV HDR 30P VERT

¥9.0600
详情
5499141-7

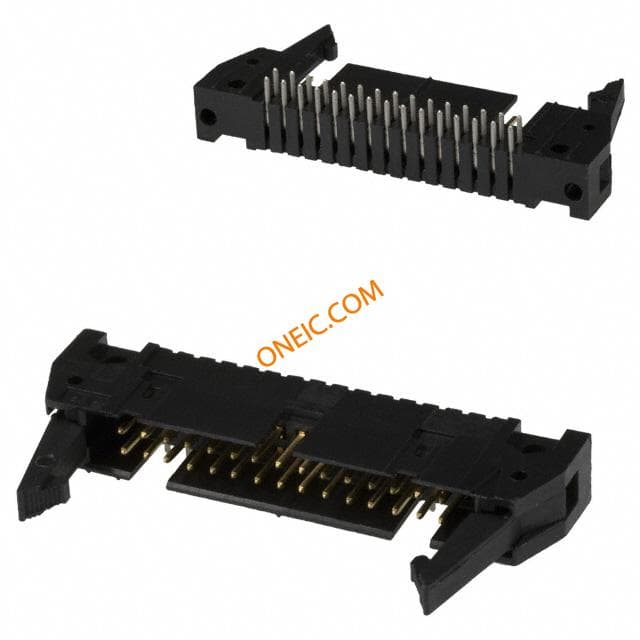

5499141-7
