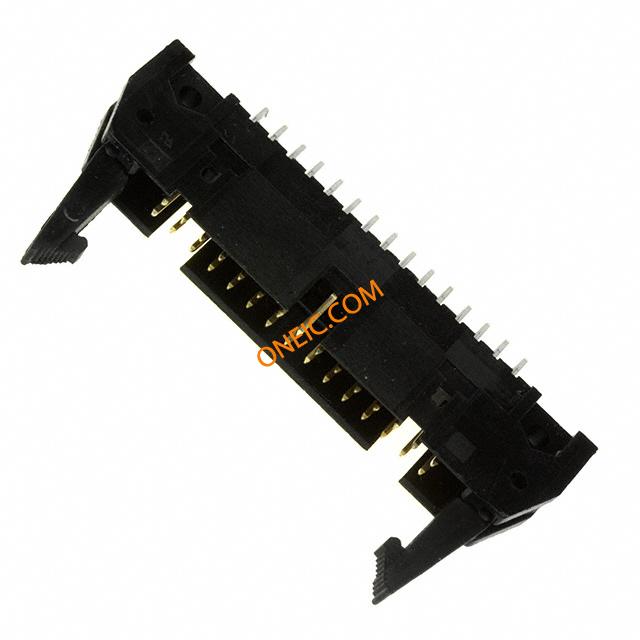

5499923-7
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Pin and Pinless Headers (AMP-LATCH) CONN HEADER VERT 30POS .100 GOLD AMPLATCH HEADER-PIN,4 SIDED,VERTICAL Headers & Wire Housings A/L UNIV HDR 30P VERT LG LAT Conn Ejector Header HDR 30 POS 2.54mm Solder ST Thru-Hole Product Highlights:Connector Type = Universal Ejection Pin HeadersStandard ProfileNumber of Positions = 302.54 x 2.54 mm Centerline, MatrixPCB Mount Angle = VerticalSearch Keywords:ribbon cable connector system, input/output, LATCH Universal Header, WIRE-BOARD CONN, HEADER, 30POS, 2.54MM AMPLATCHHEADER-PIN,4SIDED,VERTICAL,30P A/L UNIV HDR 30P VERT LG LAT |
| 分类 |
商业参数
| 商标名 | AMP-LATCH | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Trays | 工厂包装数量 | 30 |
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder c | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 开关功能 | Ejection | 最大额定电流 | 1/Contact A |
| 最小供电电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 8.53 mm |
| 间距 | 2.54 mm | 高度 | 27.31 mm |
| 重量 | 0.00001 | 包装方式 | Bulk |
| 遮蔽类型 | Yes | 排间距 | 0.100" (2.54mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 柱间距 | 2.54 x 2.54 [.100 x .100] | 极化 | Center, Dual Polarizing Bar, Military |
| 第二连接器 | With | 触点形状 | Square |
| 外壳颜色 | Black | 安装类型 | Vertical |
| 连接器类型 | Universal Ejection Pin Headers | 接触镀层 | Gold Over Palladium Nickel|Gold Over Nickel |
| 紧固类型 | Latch, Long/Eject Hooks | 安装样式 | Through Hole |
| 排数 | 2 | 封装形式 | 4-Sided |
| 电路板厚度 | 3.18 [0.125] | 锁定特性 | Latch |
| 外形（宽 x 高） | Standard | 触头材料 | Brass/Phos Bronze |
| 壳体材料 | Thermoplastic | 总长度 | 57.4 mm |
| 主要材料 | InterconnectSystem | 尺寸/外形 | 0.64 [.025] |
| 端接样式 | Through Hole | 第一触头极性 | Pin (Male) |
| 配接方向 | With | 触点数 | 30 |
| 接触件端接 | :Through Hole Vertical | 位数 | 30 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 端子柱长度 | 3.94 [0.155] |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Ejector Header | 连接器性别 | HDR |
| 系列 | AMP-LATCH | 制造商全称 | AMP-LATCH |
| 产品子类型 | Headers | 其他规格 | With |
| 加载位置数 | All | ||
环境参数
| 温度额定值 | Standard | 工作温度 | -65C to 105C |
文档与媒体
相关型号
