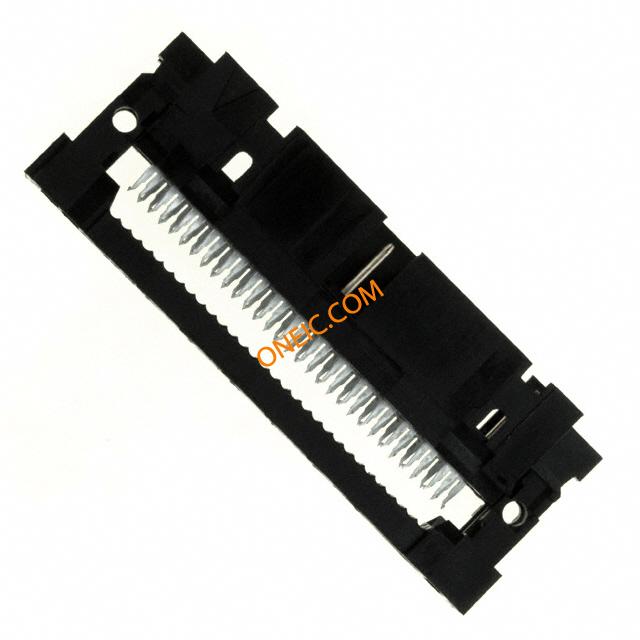

2-111446-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn IDC Connector PL 30 POS 2.54mm IDT RA Cable Mount Bulk Ribbon Cable Connectors (AMP-LATCH) CONN IDC PIN 30POS 30AU NO LATCH Conn IDC Connector PL 30 POS 2.54mm IDT RA Cable Mount Bulk Product Highlights:PreloadedType of Connector = Universal I/OHousing Gender = Plug30 PositionsPlugSearch Keywords:input/output, paddleboard, paddle board 030 UNIV I/O 30DP NO EARS |
| 分类 |
商业参数
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR 7189 | 标准编号 | CSA, UL |
| RoHS/ELV合规状态 | RoHS compliant, ELV compliant | 材料阻燃等级 | UL 94V-0 |
电气参数
| 额定电压 | 250 | 供电电压 | 250 |
| 输入电阻 | 5000 | 连接器阻抗 | 刺破式压接 (IDC) |
| 最大额定电流 | 1 | 低功耗链路范围 | 不带 |
| 连接器类型 - 电压输入 | 浸焊 | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 宽度 | 8.38 mm [ .3299 in ] | 高度 | 14.48 mm [ .5701 in ] |
| 长度 | 52.63 mm [ 2.072 in ] | 底座类型 | 不带 |
| 包装方式 | Tray | 导线类型 | Ribbon Cable |
| 壳体颜色 | 黑色 | 出线方向 | Without |
| 电缆类型 | 实心/绞线 | 导线线规 | 26-28 AWG |
| 排间距 | 0.100" (2.54mm) | 端接方式 | IDT |
| 触头类型 | Male Pin | 第二连接器 | Without |
| 外壳颜色 | Black | 安装类型 | No |
| 电缆端类型 | Without | 连接器类型 | Universal I/O |
| 接触镀层 | Gold Over Nickel | 安装样式 | 低 |
| 排数 | 2 | 驱动力 | 不带 |
| 插入件材料 | 磷青铜 | 锁定特性 | 不带 |
| 触头材料 | Phosphor Bronze | 壳体材料 | Thermoplastic |
| 安装特性 | Without | 包装数量 | 50 |
| 面板安装类型 | 通孔 - 焊接 | 尺寸/外形 | .08 – .15 mm², 158 – 296 CMA, 28 – 26 美国线规 |
| 电缆端接方式 | IDC | 端接样式 | 插针 |
| 配接方向 | Without | 触点数 | 30 |
| 绝缘材料 - 类型 | .81 – .97 mm [ .032 – .0381 in ] | 位数 | 30 |
| 触头长度-柱 | 信号（数据） | 安装孔直径 | 带有 |
| 端子柱长度 | 6.1 mm [ .24 in ] | 接触镀层厚度 | 30µin (0.76µm) |
| 外壳尺寸，连接器布局 | 3.81 mm [ .15 in ] | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | PL |
| 产品特性 | Feed Through | 极性 | 带有 |
| 盖类型 | 是 | 产品子类型 | 连接器 |
| 连接类型 | Ribbon Cable | ||
环境参数
| 工作温度 | -65 – 105 °C [ -85 – 221 °F ] | ||
