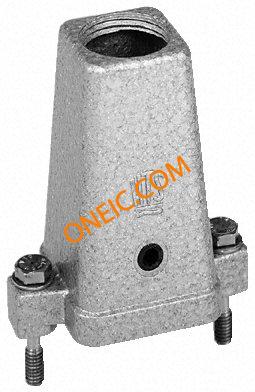

1106402-2

点击放大查看

1106402-2

制造商
TE Connectivity Ltd.
描述Connector Accessories Hood Die Cast Aluminum Black Loose Piece Heavy Duty Connectors CONN HOOD TOP SZ1 M16 EMV-K HD Connector, Hood EMV-K3/4STO.1.M16.G Heavy Duty Power Connectors Hood Sz 1 M16 EMV-K3/4STO.1.M16.G Connector Accessories Hood Die Cast Aluminum Black Loose Piece Product Highlights:EMV SeriesHoodProduct Size = 1Dimensions (L x H x W) = 51.00 x 54.00 x32.00 mmLocking Device Type = Screw Lock on HoodSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 HDCONNECTOR,HOODEMV-K3/4STO TE Connectivity EMV-K 系列 电源连接器外壳
分类
连接器解决方案重载连接器重载连接器
对参数有疑问？问 AI 助手

商业参数

产品类别Heavy Duty Power Connectors标准包装数量Bulk
工厂包装数量10

合规参数

RoHSLead free / RoHS Compliant无铅定义Not relevant for lead free process
RoHS/ELV合规状态RoHS compliant / ELV compliant

机械参数

尺寸1表面处理Black
材料（通用）Die Cast Aluminum包装方式Bulk
螺纹尺寸M16外壳颜色Black
连接器类型Hood外壳涂层Chromite TCP Passivation
连接器样式Top锁定特性Screw Lock on Hood
壳体材料Aluminum Alloy, Die Cast包装数量Loose Piece
主要材料IndustrialRectangular尺寸/外形2.008" L x 1.260" W x 2.126" H (51.00mm x 32.00mm x 54.00mm)
工作尺寸51.00 x 54.00 x32.00

产品信息

备注Protection against electro-magnetic interference, pressure-tight类型Hood
样式Top Entry系列EMV
制造商全称HTS产品子类型Accessory
锁定位置Screw Locks on Hood附件类型Hood

环境参数

液体防护Yes防护等级IP68 - Dust Tight, Waterproof
工作温度-40°C ~ 80°C
