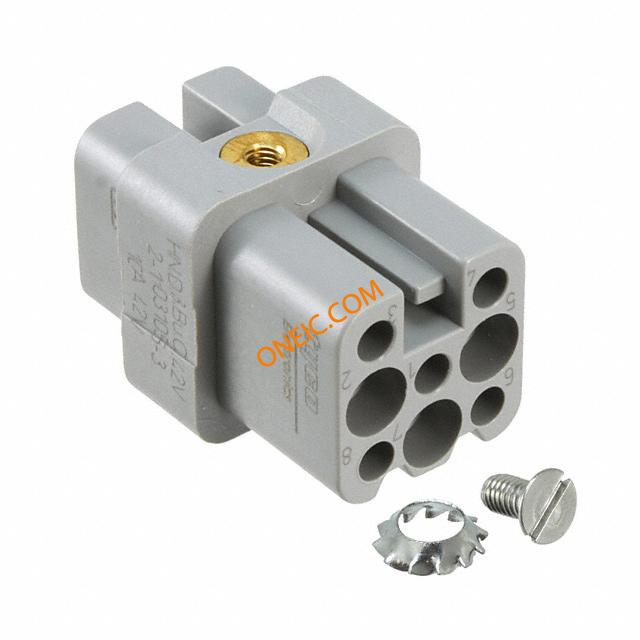

2-1103105-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Heavy-Duty Rectangular SKT 8Signal/1Ground POS Crimp ST Cable Mount Loose Piece Heavy Duty Connectors CONN INSERT FEMALE HN.D.8 SRS Heavy Duty Power Connectors INSERT FEMALE HN.D.8.BU.C Conn Heavy-Duty Rectangular SKT 8Signal/1Ground POS Crimp ST Cable Mount Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, FEMALE, SCREW, 8WAY HN.D.8.BU.C |
| 分类 |
商业参数
| 交货时间 | 59 Days | 子类别 | Connector Rectangular |
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | Bulk |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant / ELV compliant |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 42V | 极数 | 8+PE |
| 最大额定电流 | 10A | 开路电压 | 42.0 |
| 短路电流 | 10.0 | ||
机械参数
| 尺寸 | 1 | 颜色 | Gray |
| 重量 | 0.013 | 材料（通用） | Glass-Filled Thermoplastic |
| 包装方式 | Loose Piece | 端接方式 | Crimp |
| 触头类型 | HTS HN.D | 极化 | 3 |
| 安装类型 | Cable Mount | 连接器类型 | Insert without Contacts |
| 接触镀层 | :- | 排数 | :3 |
| 插入力 | Female | 触头材料 | :Copper |
| 壳体材料 | Polycarbonate (PC) | 包装数量 | Loose Piece |
| 端接样式 | Crimp | 第一触头极性 | :Socket |
| 触点数 | 8Signal/1Ground | 接触件端接 | :Crimp |
| 位数 | 8+Ground | 外壳尺寸-插件 | :1 |
| 典型触点布局 | Crimp Terminal | ||
产品信息
| 备注 | Use HTS Series HN.D Contacts | 类型 | Heavy-Duty Rectangular |
| 连接器性别 | PL | 系列 | HN.D.8 |
| 制造商全称 | HTS | 产品子类型 | Insert |
| 其他规格 | Socket | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
