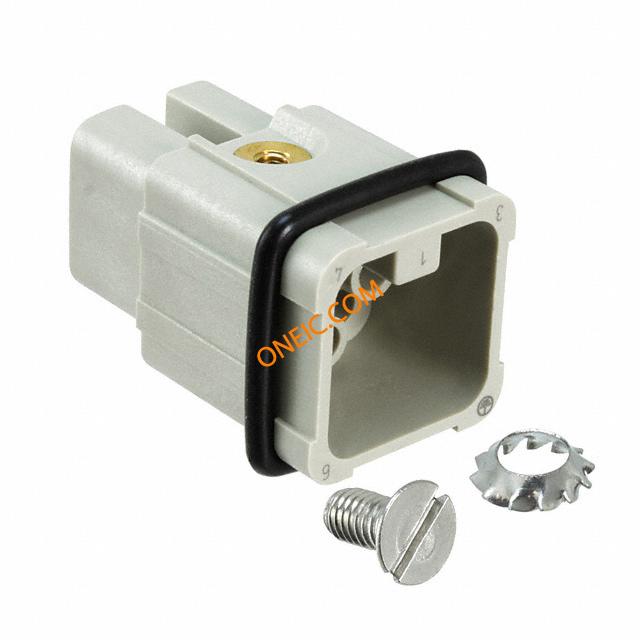

2-1103002-3
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing M 7Signal/1Ground POS Crimp ST Loose Piece HTS Connectors and Accessories CONN INSERT MALE HD.7 SRS SZ 1 Heavy Duty Power Connectors HD.7.STI.C-1,5 QMM Conn Housing M 7Signal/1Ground POS Crimp ST Loose Piece Product Highlights:HD.7 SeriesInsertProduct Size = 1Contact Type = Crimp TerminalInsert Style = PinSearch Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, MALE, CRIMP, 7WAY HD.7.STI.C-1,5 QMM |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 42V | 最大额定电流 | 10A |
机械参数
| 尺寸 | 1 | 重量 | 0.01 |
| 材料（通用） | Thermoplastic | 包装方式 | Bulk |
| 触头类型 | HD.M | 安装类型 | Straight |
| 连接器类型 | Insert without Contacts | 排数 | :3 |
| 插入力 | Male | 触头材料 | :Copper |
| 壳体材料 | Polycarbonate (PC), Glass Filled | 端接样式 | Crimp |
| 第一触头极性 | :Pin | 触点数 | 7Signal/1Ground |
| 接触件端接 | :Crimp | 位数 | 7+Ground |
| 外壳尺寸-插件 | :1 | ||
产品信息
| 类型 | Housing | 连接器性别 | M |
| 系列 | :HTS | 产品子类型 | Inserts |
环境参数
| NEMA 机架尺寸 | :IP65 | 工作温度 | -40°C ~ 125°C |
