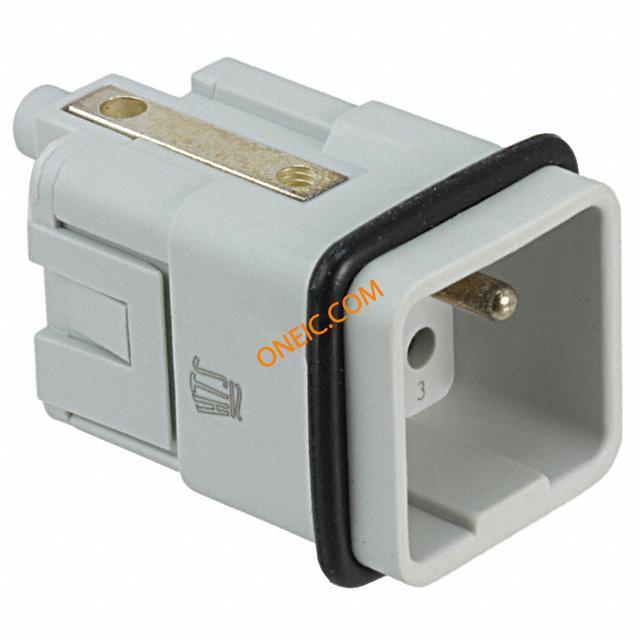

1102195-1
| 制造商 | TE Connectivity Ltd. |
| 描述 | HE-Q.5.STI.C.B1-5 HTS Connectors and Accessories CONN INSERT PIN HE-Q.5 SERIES Heavy Duty Power Connectors PIN INSERT SZ 1 5+PE HE-Q.5 Connector Accessories Insert Male 5 POS Polycarbonate Loose Piece Connector Accessories Insert Male 5 POS Polycarbonate Loose Piece Search Keywords:cabled power, DIN VDE 0110, DIN VDE 0627, DIN IEC707/VDE 0304, self extinguishing, non-flammable, European Metal Shell connector, rectangular industrial, input/output, box to box, Heavy Duty Connectors, Motorman, Motorman Hybrid, ELFA®, frequency converter, SurTec 650 INSERT, MALE, CRIMP, 5WAY HDCONNECTOR,INSERTHEQ5MALE HE-Q.5.Sti.C.B1-5 |
| 分类 |
商业参数
| 产品类别 | Heavy Duty Power Connectors | 标准包装数量 | 10 |
| 工厂包装数量 | 10 | ||
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL94 V-0 | ||
电气参数
| 额定电压 | 400V | 最大额定电流 | 16A |
机械参数
| 尺寸 | 1 | 颜色 | Gray |
| 重量 | 0.013 | 包装方式 | Bulk |
| 端接方式 | :Crimp | 触头类型 | HE |
| 连接器类型 | Insert without Contacts | 接触镀层 | :Silver |
| 排数 | :2 | 触头材料 | :Copper |
| 壳体材料 | Polycarbonate (PC) | 主要材料 | IndustrialRectangular |
| 端接样式 | Crimp | 第一触头极性 | :Pin |
| 触点数 | :5 | 接触件端接 | :Crimp |
| 位数 | 5+Ground | 外壳尺寸-插件 | :1 |
产品信息
| 类型 | Insert | 连接器性别 | Male |
| 系列 | HE-Q.5 | 制造商全称 | HTS |
| 产品子类型 | Inserts | ||
环境参数
| 工作温度 | -40°C ~ 125°C | ||
