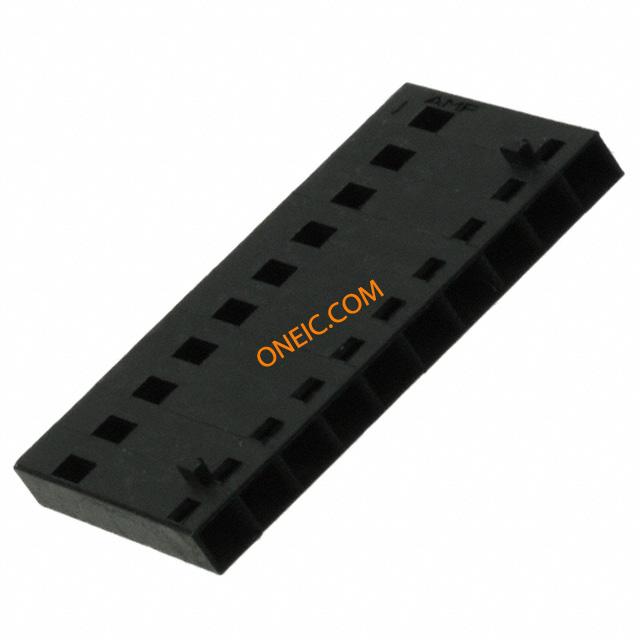

点击放大查看
104503-9
| 制造商 | TE Connectivity Ltd. |
| 描述 | Conn Housing PL 10 POS 2.54mm Crimp ST Cable Mount .100 AMPMODU Headers, Housings & Contacts CONN PIN HSG 10POS .100 UNLOADED Headers & Wire Housings RCPT 10P .100 UNLOAD 104503-9 CONNECTOR 10 MTE PIN HSG SR RIB .100CL |
| 分类 |
商业参数
| 商标名 | AMPMODU | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1 |
合规参数
| RoHS | Not applicable / RoHS Compliant | 海关税号 | 85366930 |
| 无铅定义 | Not relevant for lead free process | RoHS/ELV合规状态 | RoHS compliant, ELV compliant |
| 材料阻燃等级 | UL 94V-0 | ||
电气参数
| 量程（°/s） | :TE - AMPMODU MTE Series | 最大额定电流 | 3 A |
| 连接器类型 - 电压输入 | Male | ||
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 重量 | 0 | 包装方式 | Bulk |
| 导线线规 | 22-30 AWG | 排间距 | 2.54 mm |
| 触头类型 | Male Pin | 极化 | Ribbed |
| 第二连接器 | Without | 外壳颜色 | Black |
| 安装类型 | Straight | 连接器类型 | Crimp, Insulation Displacement Crimp (IDC) |
| 排数 | 1 | 封装形式 | Pin |
| 壳体材料 | Thermoplastic | 配接方向 | With |
| 触点数 | 10 | 接触件端接 | Crimp |
| 位数 | 10 | 中心触点材料 | 2.54 [.100] |
产品信息
| 备注 | Refer to AMPMODU contacts for crimp snap-in replacement receptacle or pin conta | 类型 | Housing |
| 连接器性别 | PL | 系列 | MTE |
| 预加载 | No | 编码、键控 | No |
| 产品子类型 | Housing | 应用细节 | Board-to-Board |
