1-644020-2
| 制造商 | |
| 描述 | Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 24AWG MTA-100 12P MTA100 CONN ASSY 30AU 12P MTA100 CONN ASSY 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP |
| 分类 |
商业参数
| 标准包装规格 | 500 | 标准包装数量 | Bulk |
合规参数
| RoHS | Contains lead / RoHS non-compliant | UL等级 | 获得认可 |
| 无铅定义 | Not relevant for lead free process | UL档案号 | E28476 |
| CSA档案号 | LR7189 | 标准编号 | CSA, UL |
| CSA认证 | Certified | RoHS/ELV合规状态 | Not ELV/RoHS compliant |
| 材料阻燃等级 | UL 94V-2 | ||
电气参数
| 供电电压 | 250 | 额定交流电压 | 250 |
| 连接器阻抗 | IDC | 最大额定电流 | 5 |
机械参数
| 颜色 | White | 间距 | 2.54 mm |
| 高度 | 6.99 mm [ .275 in ] | 长度 | 30.48 mm [ 1.2 in ] |
| 包装方式 | Bulk | 遮蔽类型 | No |
| 导线类型 | Discrete or Ribbon Cable | 壳体颜色 | 白色 |
| 出线方向 | 90° | 电缆类型 | 分离式导线, 绞线 |
| 导线线规 | 24 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 极化 | Polarizing Tab |
| 第二连接器 | With | 外壳颜色 | White |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Closed End |
| 接触镀层 | Gold Over Nickel | 触点时序 | Without |
| 紧固类型 | Locking Ramp | 安装样式 | 不带 |
| 排数 | 1 | 壳体镀层 | Nickel |
| 外壳材料（壳体） | 标准 | 连接器用途 | Receptacle |
| 插入件材料 | 铜合金 | 触头材料 | Copper Alloy |
| 壳体材料 | Nylon | 安装特性 | Without |
| 包装数量 | Loose Piece | 面板安装类型 | Without |
| 电缆端接方式 | IDC | 端接样式 | 插座 |
| 配接方向 | With | 触点数 | 12 |
| 端接表面处理 | 带有 | 接触件端接 | Locking Lance |
| 绝缘直径 | 1.52 mm [ .06 in ] | 位数 | 12 |
| 兼容外壳尺寸（如TM-700等） | MTA .100 头 | 触头长度-柱 | 电源 |
| 安装孔直径 | 带有 | 接触件表面处理 - 配合 | 金 |
| 典型触点布局 | 2.54 [0.100] | 接触镀层厚度 | 30µin (0.76µm) |
| 恢复后小径 | No | 线规或范围 - mm² | 0.2² [24] |
| 静电放电屏蔽 | 带有 | 护套（绝缘）厚度 | 1.27 – 1.77 µm, 50 – 69.685 µin |
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 产品特性 | Closed End | 可密封 | 否 |
| 制造商全称 | AMP | 产品子类型 | MTA-100 Connectors |
| 连接类型 | Wire | 跳过的位置数 | None |
环境参数
| 工作温度 | -55 – 105 °C [ -67 – 221 °F ] | ||
相关型号
1-640456-2
te connectivity / amp
Conn Wire to Board HDR 12 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 12POS .100 TIN TE Connectivity MTA-100 Series 2.54mm Pitch 12 Way 1 Row Straight PCB Header, Solder Termination, 5A Headers & Wire Housings FRICTION LCK HDR 12P Straight Post tin Conn Wire to Board HDR 12 POS 2.54mm Solder ST Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline SpacingSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HEADER, VERTICAL, 0.1", 12WAY Header,FrictionLock;MTA-100;12;250VAC;Polyester;Tin;CopperAlloy;Tin Pin header 12P, 1-640456-2, TE Connectivity TE Connectivity MTA-100 系列 2.54mm节距 12路 (1排) 直 PCB 针座, 焊接端接, 5A , 通孔 12P MTA100 HDR ASSY F/L SQ STR
1-641216-2
te connectivity / amp

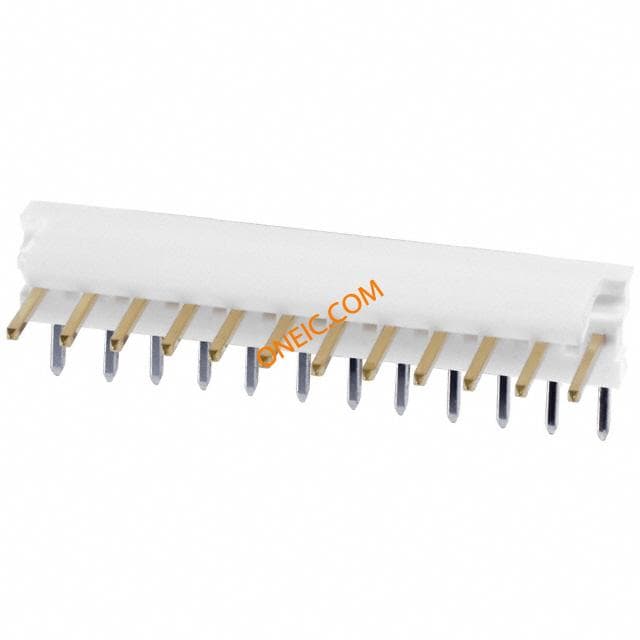

Conn Wire to Board HDR 12 POS 2.54mm Solder RA Thru-Hole CONN HEADER RT/A 12POS .100 30AU Conn Wire to Board HDR 12 POS 2.54mm Solder RA Thru-Hole Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = HeaderWire-to-Board Application2.54 mm Contact Centerline Spacing
4-644456-2
te connectivity / amp

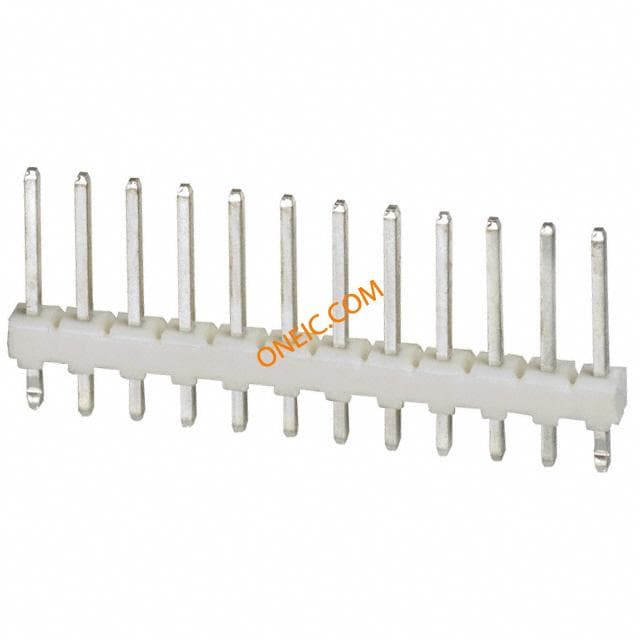

Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER VERT 12POS .100 TIN Headers & Wire Housings NARROW FLT HDR 12P Straight Post Conn Unshrouded Header HDR 12 POS 2.54mm Solder ST Thru-Hole Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONN, HEADER, 12WAY, 0.1IN 12P MTA100 HDR ASSY (NARROW)
