1-647116-2

点击放大查看

1-647116-2

制造商
TE Connectivity Ltd.
描述
Conn Wire to Board HDR 12 POS 2.54mm Solder ST Thru-Hole MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN HEADER 12POS VERT .100 GOLD Headers & Wire Housings 12P MTA100 HDR HT FL STR 30AU 12P MTA100 HDR HT FL STR 30AU 12P MTA100 HDR HT FL STR 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

标准包装规格500标准包装数量Bulk

合规参数

RoHSContains lead / RoHS non-compliantUL等级获得认可
无铅定义Wave solder capable to 240°C, Wave solder capable to 260°C, Wave solder cUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
RoHS/ELV合规状态Not ELV/RoHS compliant认证机构标志已认证
材料阻燃等级UL 94V-0

电气参数

额定电压250 V开关功能Friction Lock
供电电压250额定交流电压250
连接器阻抗焊接最大额定电流5

机械参数

颜色Black间距2.54 mm
高度8.81 mm [ .34 in ]包装方式Bulk
遮蔽类型No壳体颜色黑色
引脚样式正方形端接方式Solder
触头类型Male Pin第二连接器With
触点形状Square外壳颜色Black
安装类型Vertical连接器类型Header, Unshrouded
接触镀层Gold Over Nickel触点时序Without
紧固类型Friction Lock安装样式不带
排数1外壳材料（壳体）摩擦锁
连接器用途Header插入件材料铜合金
锁定特性Friction Lock触头材料Copper Alloy
壳体材料Nylon 4/6框架材料镍
安装特性Without包装数量500
面板安装类型Without尺寸/外形0.64 [.025]
端接样式Through Hole第一连接器类型不带罩
第一触头极性Pin (Male)配接方向With
触点数12端接表面处理不带
接触件尾部长度3.81 – 6.3 µm [ 150 – 248.03 µin ]位数12
后壳中断功能Without兼容外壳尺寸（如TM-700等）MTA .100 连接器组件
触头长度-柱电源安装孔直径不带
典型触点布局同轴接触长度 - 配合0.290" (7.37mm)
触点材料 - 柱Copper Alloy端子柱长度3.18 [0.125]
接触镀层厚度30µin (0.76µm)恢复后小径No
静电放电屏蔽不带护套（绝缘）厚度1.27 µm, 50 µin

产品信息

类型Wire to Board连接器性别HDR
系列MTA-100可密封否
制造商全称AMP产品子类型MTA-100 Connectors
连接类型Printed Circuit Board应用细节Wire-to-Board
加载位置数All跳过的位置数None

环境参数

工作温度-55 – 105 °C [ -67 – 221 °F ]封装热阻1.57 mm [ .062 in ]

文档与媒体

在线文档
1-647116-2

相关型号

4-643813-2

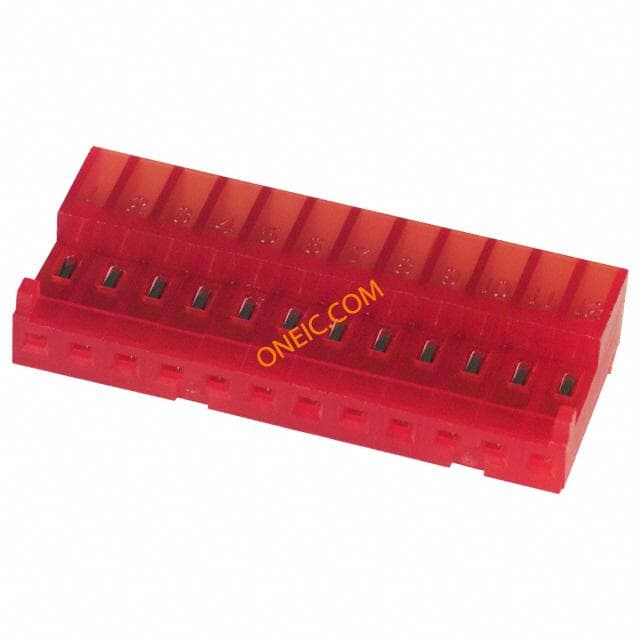

4-643813-2

te connectivity / amp

Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 22AWG MTA100 Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector12 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP WIRE-BOARD CONNECTOR RECEPTACLE 12POS, 2.54MM MTA-100CONNECTORTIN,12PMTA100CONNASSYPOLRIB 12P MTA100 CONN ASSY POL RIB

¥5.6032
详情
1-640620-2

1-640620-2

te connectivity / amp

Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 22AWG MTA100 Headers & Wire Housings 12P MTA100 CONN ASSY F/T RED Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = ReceptacleConnector Type = Feed ThruWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P MTA100 CONN ASSY F/T RED

¥2.3256
详情
1-641190-2

1-641190-2

te connectivity / amp

Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 12POS .100 GOLD Headers & Wire Housings 12P HDR RED 22AWG

¥14.9600
详情
1-641237-2

1-641237-2

te connectivity / amp

Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 12POS RED 22AWG MTA100 Headers & Wire Housings 12P MTA100 CONN ASSY RED 30AU

¥20.4884
详情
暂无图片

1-644574-2

te connectivity / amp

Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece CONN RCPT 12POS .100 TIN

详情
1-641238-2

1-641238-2

te connectivity / amp

Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 12POS 24AWG MTA-100 Headers & Wire Housings 12P MTA100 CONN ASSY NATL 30AU MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥13.5320
详情
1-644038-2

1-644038-2

te connectivity / amp

Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 12POS 22AWG MTA-100 Headers & Wire Housings 12P MTA100 CONN ASSY POL 15AU MTA, CST-100 II, MT-6 and SL Connectors and Headers Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P MTA100 CONN ASSY POL 15AU

¥12.3080
详情
1-643815-2

1-643815-2

te connectivity / amp

Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece CONN RECEPT 12POS 26AWG MTA100 Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board Application

¥2.3800
详情
4-640623-2

4-640623-2

te connectivity / amp

Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 28AWG MTA100 Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P MTA100 CONN ASSY GRN LF

¥2.1760
详情
4-643816-2

4-643816-2

te connectivity / amp

Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 28AWG MTA100 Headers & Wire Housings 12P MTA100 CONN ASSY POL RIB Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:Connector12 PositionsConnector Type = ReceptacleConnector Style = Closed EndMTA-100 Product LineSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P MTA100 CONN ASSY POL RIB

¥2.3045
详情
4-640443-2

4-640443-2

te connectivity / amp

Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece Headers & Wire Housings REC 12P C/E 28AWG W/O TABS MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 28AWG MTA100 Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P MTA100 CONN ASSY GRN

¥2.1760
详情
1-644511-2

1-644511-2

te connectivity / amp

Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount T/R MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 12POS .100 POLAR TIN 12P MTA100 CONN ASSY ON TAPE 12P MTA100 CONN ASSY ON TAPE Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥2.8111
详情
1-644020-2

1-644020-2

te connectivity / amp

Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 24AWG MTA-100 12P MTA100 CONN ASSY 30AU 12P MTA100 CONN ASSY 30AU Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥13.5320
详情

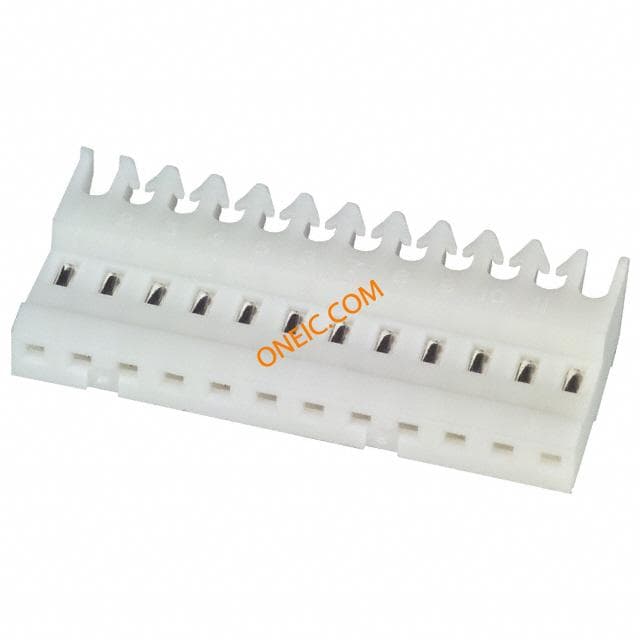

4-640621-2

4-640621-2

te connectivity / amp

Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 24AWG MTA100 Headers & Wire Housings 12P MTA100 CONN ASSY F/T NATL 12P MTA100 CONN ASSY F/T NATL 12P MTA100 CONN ASSY F/T NATL Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥2.7608
详情
4-640622-2

4-640622-2

te connectivity / amp

Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 26AWG MTA100 Headers & Wire Housings 12P ASSY F/T BLU Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12P MTA100 CONN ASSY F/T BLU

¥2.1760
详情
1-644540-2

1-644540-2

te connectivity / amp

Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 22AWG MTA100 Headers & Wire Housings 12P MTA100 CONN ASSY F/T POL 12P MTA100 CONN ASSY F/T POL 12P MTA100 CONN ASSY F/T POL Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP

¥1.9040
详情
4-640441-2

4-640441-2

te connectivity / amp

Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RECEPT 12POS 24AWG MTA100 MTA 12 way cable SKT 2.54mm Headers & Wire Housings REC 12P C/E 24AWG W/O TABS Conn IDC Connector F 12 POS 2.54mm IDT RA Cable Mount Loose Piece Product Highlights:MTA-100 ConnectorsNumber of Positions = 12Mating Type = ReceptacleConnector Type = Closed EndWire-to-Board ApplicationSearch Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP HOUSING, 24AWG, 12WAY MTA-100Receptacle,12Position,ClosedEnd,IDC,24AWG,White TE Connectivity MTA-100 系列 12路 2.54mm节距 直角 电缆安装 母 IDC 连接器 12P MTA100 CONN ASSY WHT

¥8.5696
详情

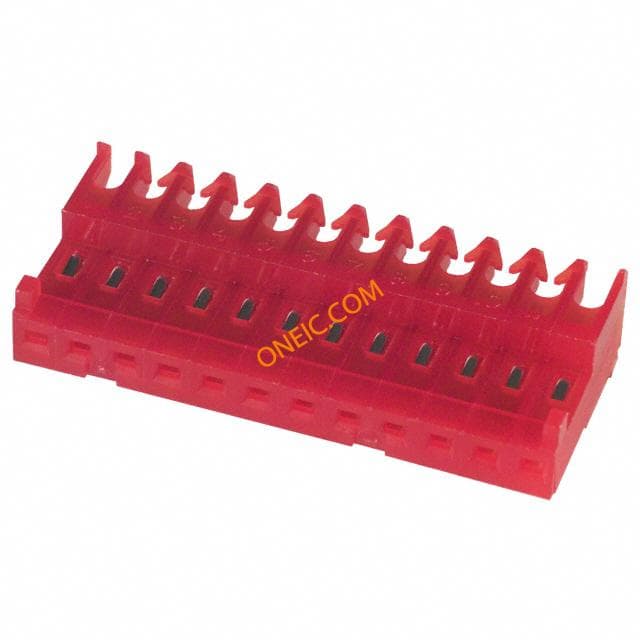

4-644540-2
