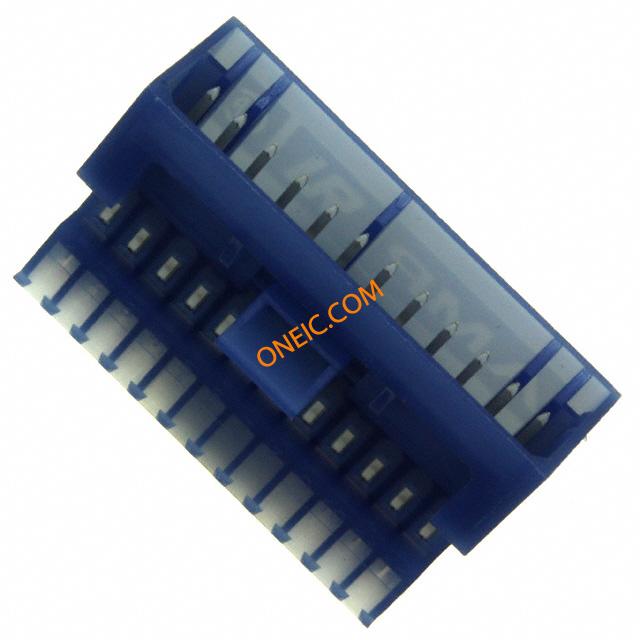

4-647002-2

点击放大查看

4-647002-2

制造商
TE Connectivity Ltd.
描述
Conn IDC Connector F 12 POS 2.54mm IDT ST Cable Mount MTA, CST-100 II, MT-6 and SL Connectors and Headers CONN RCPT 12POS 26AWG MTA-100 Conn IDC Connector F 12 POS 2.54mm IDT ST Cable Mount Search Keywords:5 A, 250 VAC, 7 A, 600 VAC, PCB Connectors, Ribbon Cable, Ribbon and Flat Flex Wire, LID, Large Insulation Diameter, IDC Quad Connectors, Discrete Wire Connectors, PWRSIGALLP 12wIDCpostedconnectorclosedend 12P MTA100 PSTD CONN ASSY LF
分类
连接器解决方案板对板连接器板对板连接器
对参数有疑问？问 AI 助手

商业参数

其他名称A99610标准包装数量Bulk

合规参数

RoHSLead free / RoHS CompliantUL等级获得认可
无铅定义Not relevant for lead free processUL档案号E28476
CSA档案号LR7189标准编号CSA, UL
CSA分类已认证RoHS/ELV合规状态RoHS compliant, ELV compliant
材料阻燃等级UL 94V-2

电气参数

供电电压250接触电阻6 mohm
额定交流电压250连接器阻抗IDC
最大额定电流5/Contact A最小供电电压250VAC

机械参数

颜色Blue深度21.4 mm
间距2.54 mm高度12.54 mm
长度33.02 mm [ 1.3 in ]包装方式Bulk
遮蔽类型No导线类型Discrete or Ribbon Cable
壳体颜色白色电缆类型分离式导线, 绞线
导线线规26 AWG端接方式IDT
触头类型Male Pin第二连接器Without
外壳颜色Blue安装类型Free Hanging (In-Line)
连接器类型Closed End接触镀层Tin
触点时序Without安装样式Cable
排数1壳体镀层Nickel
连接器用途Receptacle插入件材料铜合金
触头材料Copper Alloy壳体材料Nylon
总长度33.02 mm安装特性Without
包装数量50面板安装类型Without
主要材料IndustrialRectangular电缆端接方式IDC
端接样式插针配接方向Without
触点数12端接表面处理带有
绝缘直径1.52 mm [ .06 in ]位数12
兼容外壳尺寸（如TM-700等）标准 MTA .100 连接器，仅带有极化公端电路尺寸 4 - 19，没有极化公端电路尺寸 2 和 3触头长度-柱电源
安装孔直径带有接触件表面处理 - 配合锡
典型触点布局2.54 [0.100]接触镀层厚度80µin (2.03µm)
恢复后小径No线规或范围 - mm²0.12-0.15² [26]
静电放电屏蔽带有护套（绝缘）厚度.762 µm, 30 µin

产品信息

备注肋之间的条纹可能会减少类型IDC Connector
连接器性别F产品特性Closed End
可密封否制造商全称AMP
产品子类型MTA-100 Connectors连接类型Wire
跳过的位置数None

环境参数

工作温度-55C to 105C
